Hurco VMX30S Vertical Machining Center

Show in original language

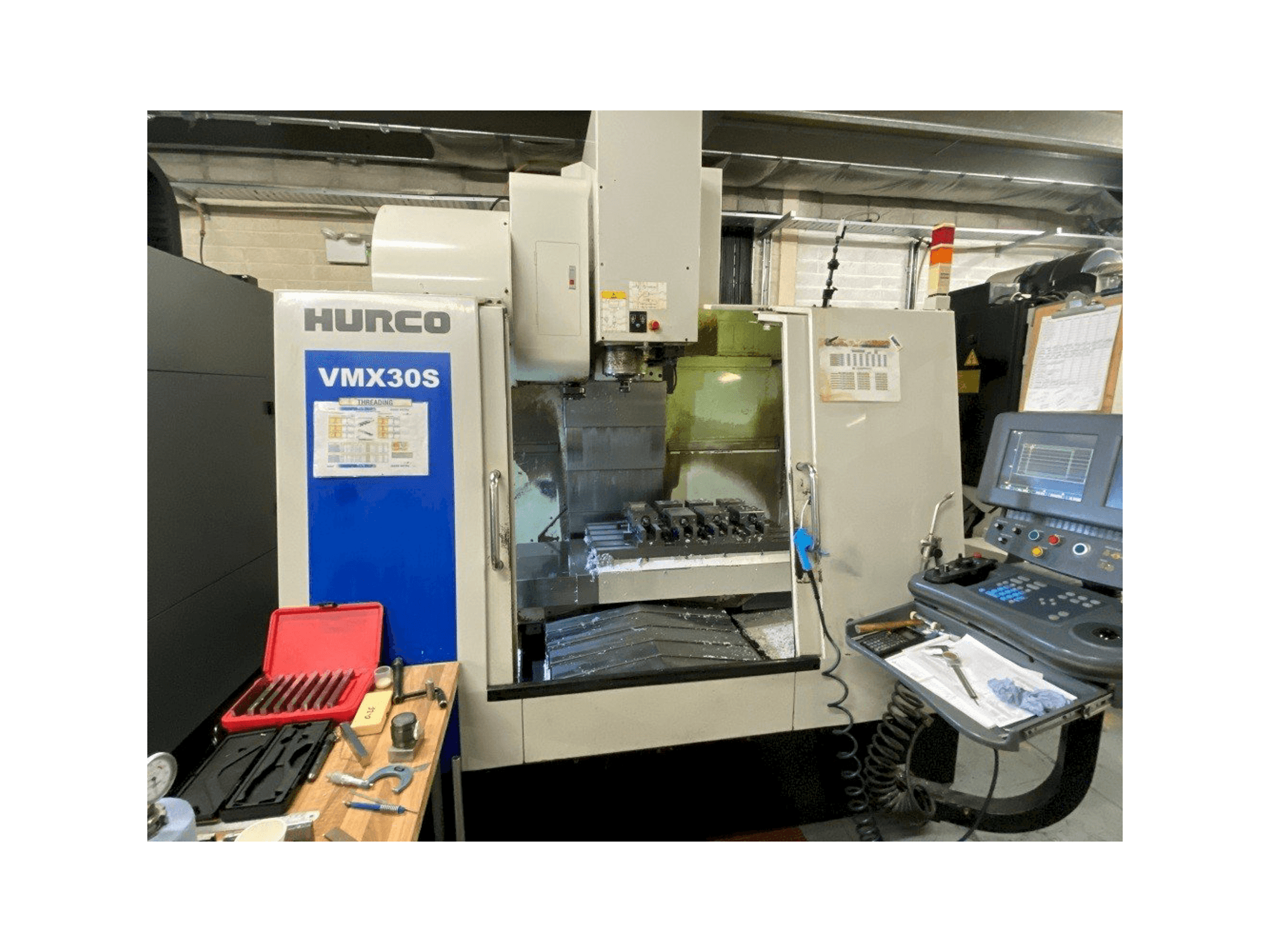

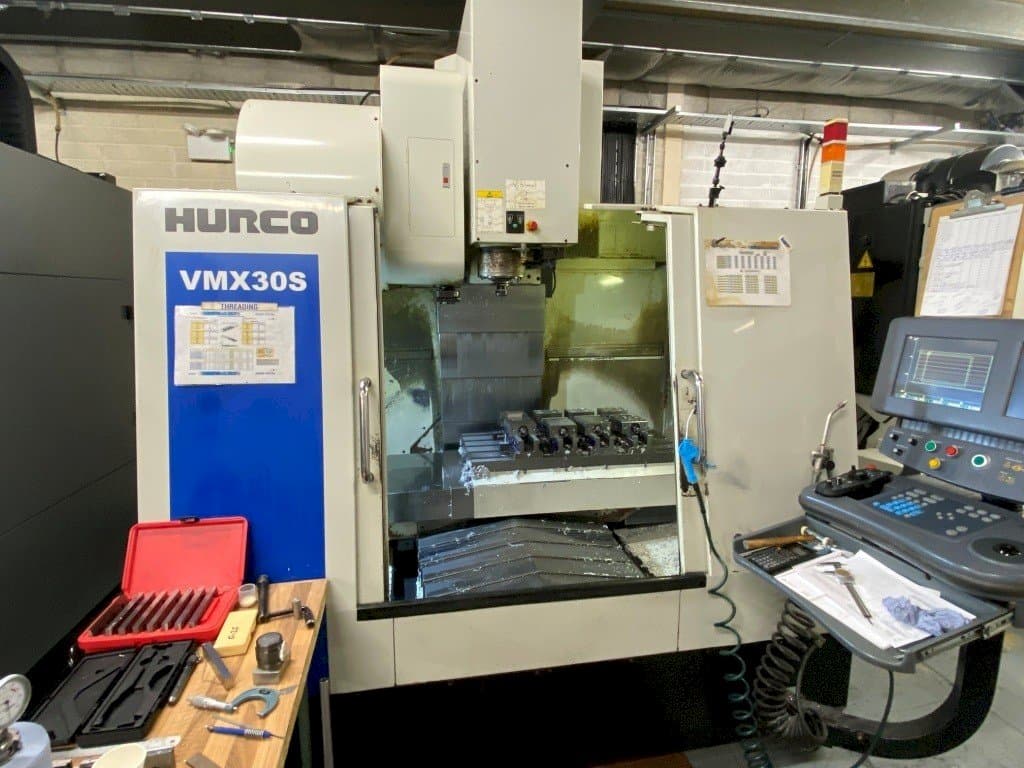

This Hurco VMX30S Vertical Machining Center was manufactured in the year 2006 in the United States and has 35000 working hours. It is equipped with a HURCO Ultimax 4 control unit and has 3 axis. The machine has a spindle speed of 15000 rpm.

Overview

brand: Hurco
year: 2006
MODEL: VMX30S
production hours: 35000
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco VMX30S

General Data

Measurements width: 2400 mm
Measurements depth: 3000 mm
Measurements height: 2500 mm
Machine weight: 5000 kg

Control Unit

Model: Ultimax 4
CNC main language: English
Brand: HURCO
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 610 mm

Workpiece

Workpiece weight: 1000 kg

Table

Outer length: 1020 mm
Outer width: 510 mm

Tools

Slots in storage: 24
Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 300 mm
Type of tool holder: ISO40

Media

Main electronic connection: 400 V
Power consumption: 25 kva

Additional equipment

- Chip Auger
- Chiller

Additional Information

Machine history

Material type: Aluminium
End product: Machined parts
Industries: Sub contracted machined parts

Machine Benefits

Technical Machine Benefits:
- - Control options include:
- - 3d mold
- - Ulti-pockets
- - Dxf
- - Rigid tap
- - Ramp/helical entry
- - Adaptive surface finishing

Extra information

- Vices in photos not includes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
