HWACHEON HI-ECO 450A YMC Lathe

Show in original language

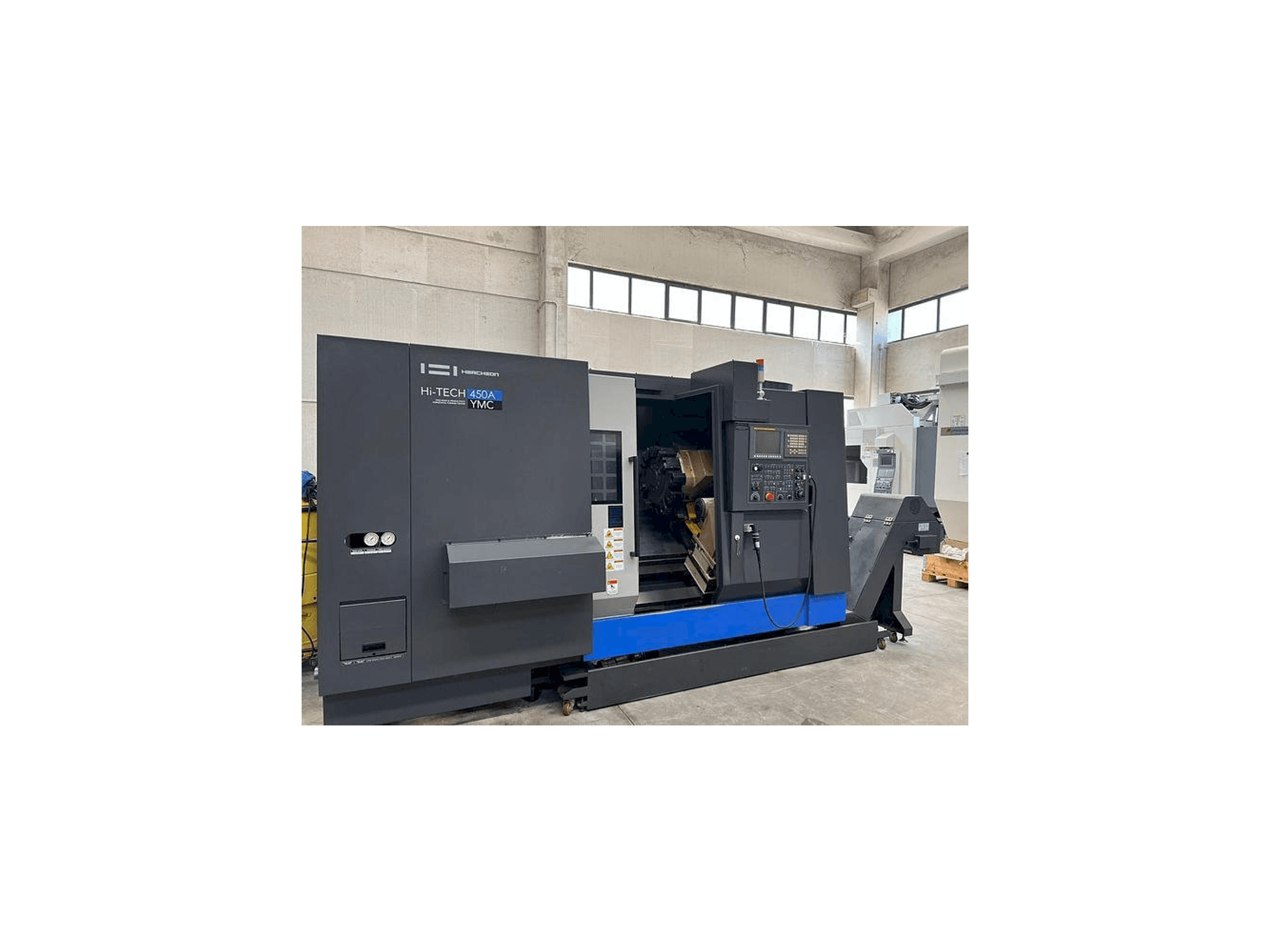

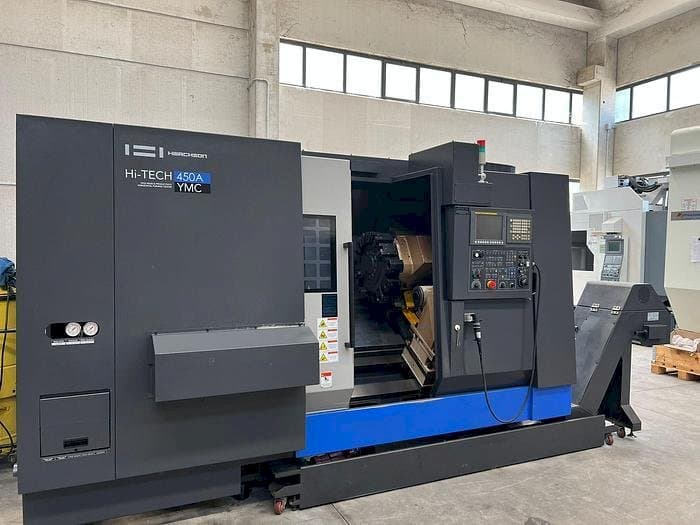

This Hwacheon HI-ECO 450A YMC lathe was manufactured in 2013. It features a Fanuc 0i-TD control, a spindle speed of 3,500 rpm, and a spindle power of 22/18.5 Kw. The machine offers a maximum rotating diameter of Ø 700 mm and a workable length of 637 mm. It includes a tool turret with 12 live tool positions and a chip evacuator. For more information about this lathe, please reach out to us.

Overview

brand: HWACHEON
year: 2013
MODEL: HI-ECO 450A YMC
production hours: 23101
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - HWACHEON HI-ECO 450A YMC

Control Unit

Model: 0i-TD
Brand: FANUC

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 22 / 18.5 Kw

Movement

X-AXIS Movement: 280 mm
Y-AXIS Movement: ± 60 mm
Z-AXIS Movement: 790 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Rotating diameter Ø 700 mm
- - Max. Rotating diameter on pallet Ø 550 mm
- - Turning diameter Ø 254-420 mm
- - Max length workable 637 mm
- - Self-centering diameter Ø 250 mm
- - Spindle connection asa 2-8
- - Spindle hole Ø 90 mm
- - Bar passage Ø 76 mm
- - Indexing 0. 001 °
- - Tool turret with 12 live tool positions
Qualitative Machine Benefits:
- - Several holders included
- - Accessories chip evacuator

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
