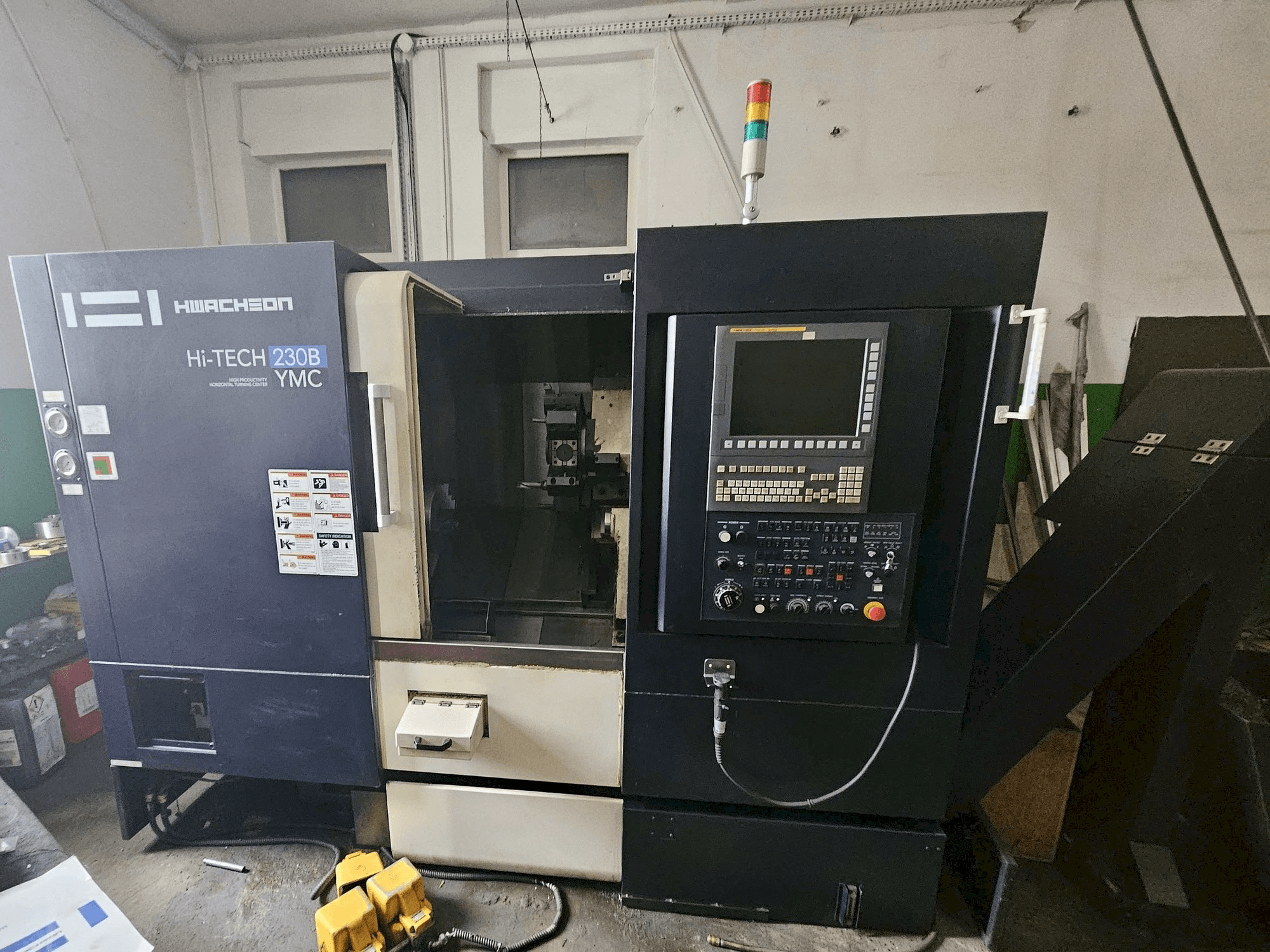

Front view of HWACHEON HI-TECH 230B YMC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HWACHEON HI-TECH 230B YMC

Photo Gallery

HWACHEON - HI-TECH 230B YMCPL-TUR-HWA-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hwacheon HI-TECH 230B YMC Lathe

Show in original language

This Hwacheon HI-TECH 230B YMC Lathe was made in 2018 in Korea and has 3370 production hours, of which 2040 are spindle hours. It is equipped with a FANUC Series 0i-TF control unit. The machine has a spindle speed of 3500 rpm.

Overview

brand: HWACHEON
year: 2018
MODEL: HI-TECH 230B YMC
production hours: 3370
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - HWACHEON HI-TECH 230B YMC

General Data

Measurements width: 2100 mm
Measurements depth: 3100 mm
Measurements height: 2000 mm
Machine weight: 4400 kg

Control Unit

Model: Series 0i-TF
Brand: FANUC

Main drive

Spindle speed range: 3500 1/MIN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Through-spindle, through-hole 80 mm
- - Processing time 2040 working hours
- - Max spindle speed: 3500 rpm
- - Max turning diameter: 400 mm
- - Max turning length: 290 mm
- - Self-centering three-jaw chuck on the main spindle dim. 250 mm
- - Cooling system
- - Measuring probe
- - Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
