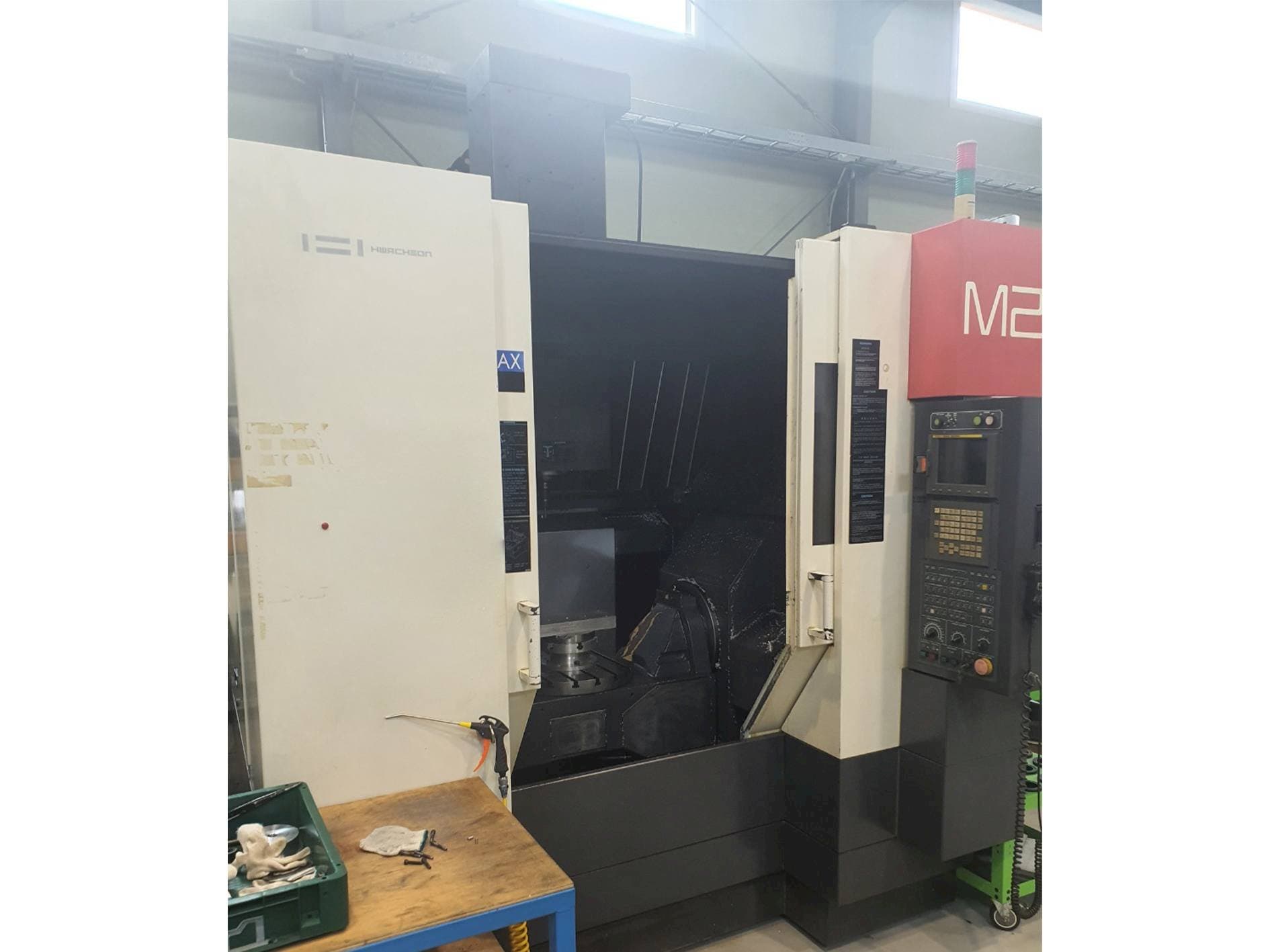

HWACHEON M2 Vertical Machining center

Show in original language

This HWACHEON M2 Vertical Machining center was manufactured in 2007. It is operated through a FANUC Series 18i-MB5 control unit. This 5 axis machine has a spindle speed up to 12000 rpm. It comes with an automatic tool measurement, direct spindle type and includes manual books.

Overview

brand: HWACHEON
year: 2007
MODEL: M2
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - HWACHEON M2

Control Unit

Model: Series 18i-MB5
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: BT40
Number of axis: 5

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 500 mm

Table

Table load: 300 KG

Media

Main electronic connection: 220V / 60Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - A-axis deg. : 150 (+30 ~ -120)
- - C-axis deg. : 360
- - Max. Workpiece swing diameter x height : Ø400 x 335mm
- - Table size : Ø500 mm
- - Oil cooler
- - Direct spindle type
- - Magazine tool capacity: 30 ea
- - Linear scale (x, y, z, a, c)
- - Automatic tool measurement
- - Guideway type: lm guide
Qualitative Machine Benefits:
- - Call right (led 3 step)
- - Mpg handle
- - Manual books
- - Ce mark

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
