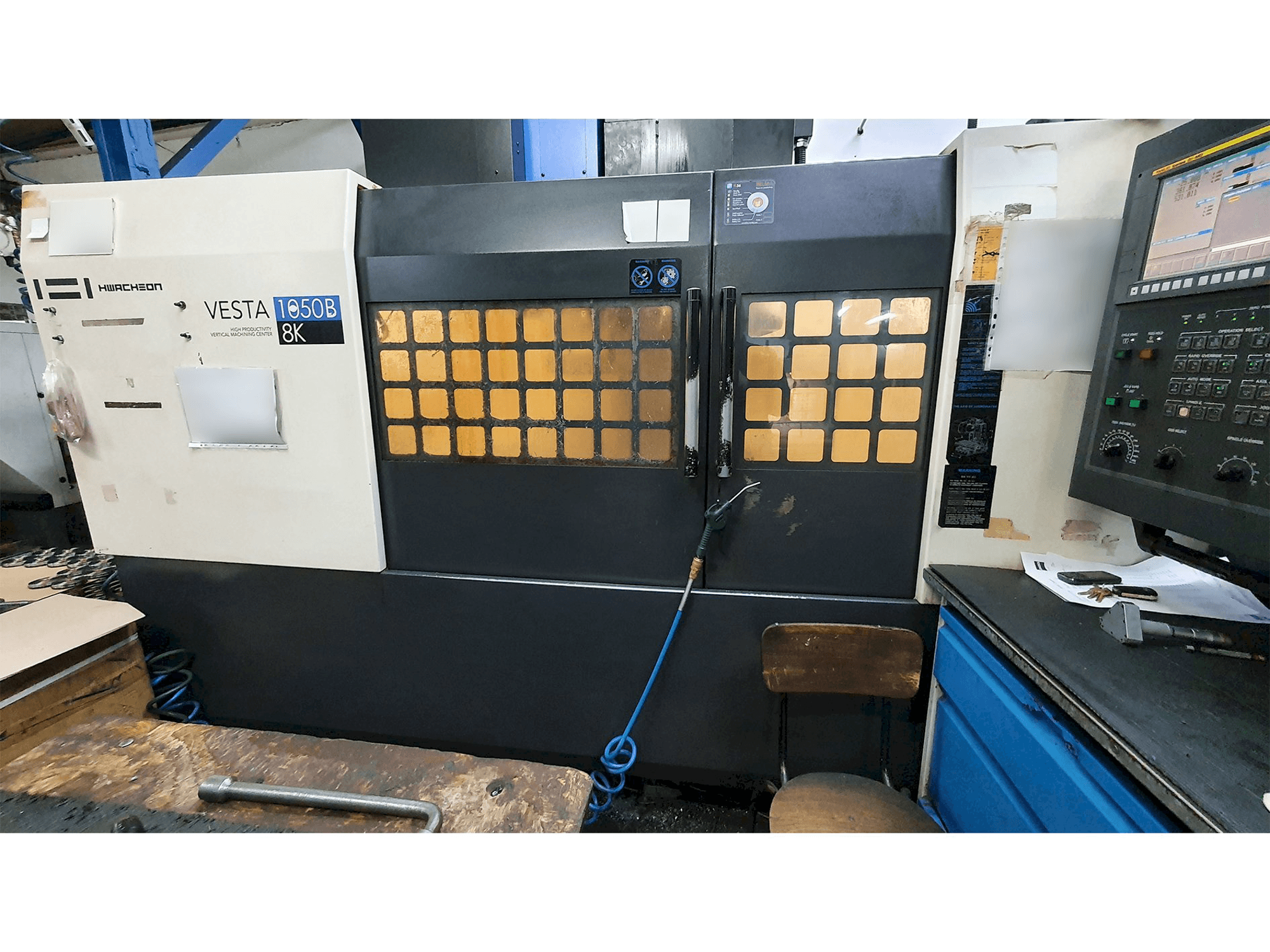

HWACHEON VESTA-1050B Vertical Machining Center

Show in original language

This HWACHEON VESTA-1050B Vertical Machining Center was manufactured in 2013 in Korea. It has been working for 41917 hours of which 14557 are spindle hours. It is operated through a FANUC Series Oi-MD control unit. This machine can work with a spindle speed range up to 8000 rpm and a spindle power of 18,5 / 15 kW.

Overview

brand: HWACHEON
year: 2013
MODEL: VESTA-1050B
production hours: 41917
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - HWACHEON VESTA-1050B

General Data

Measurements width: 4220 mm
Measurements depth: 3030 mm
Measurements height: 2718 mm
Machine weight: 7200 kg

Control Unit

Model: Series Oi-MD
Brand: FANUC

Main drive

Spindle speed range: 8000 rpm 1/MIN
Spindle motor power: 18,5/15 kW
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 1150 mm
Outer width: 600 mm
Table load: 1000 kg

Tools

Number of index: 24
Type of tool holder: BT-40 (BT-50)

Media

Oil tank: 340 l
Chip conveyor: Yes

Additional equipment

- Cooling through the spindle

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - The machine in good working condition and ready for tests.
- - Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
