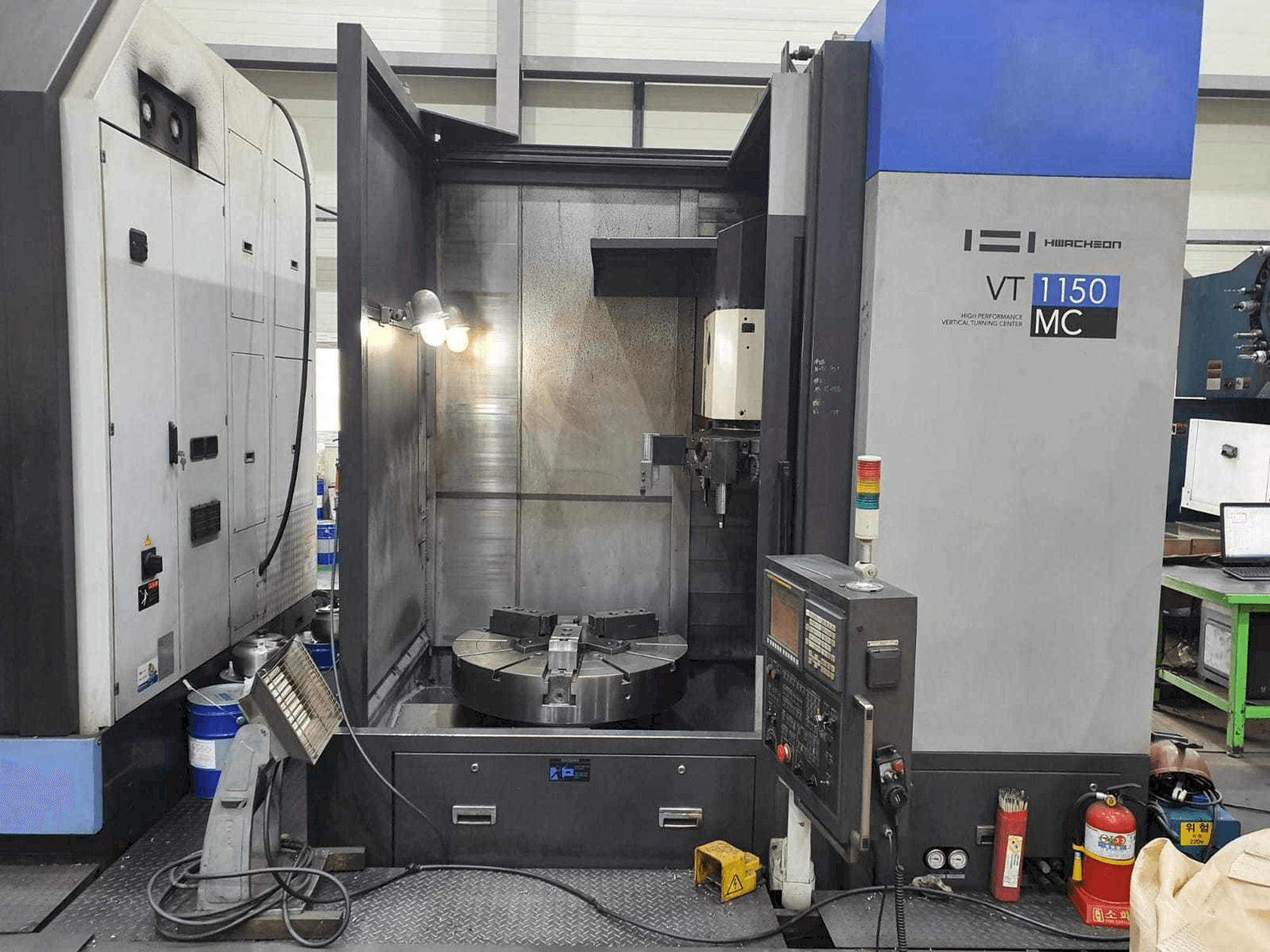

HWACHEON VT 1150 MC Vertical Lathe

Show in original language

This HWACHEON VT 1150 MC Vertical Lathe was made in the year 2011. It has been on for 10886 hours, of which 3087 are cutting hours. It is equipped with a FANUC Oi-TD control unit. The machine operates with a spindle speed up to 1250 rpm. Includes driven tools and milling function.

Overview

brand: HWACHEON
year: 2011
MODEL: VT 1150 MC
production hours: 3087
application type: Turning
Location: South Korea
machine type: Vertical Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - HWACHEON VT 1150 MC

Control Unit

Model: Oi-TD
Brand: FANUC

Main drive

Spindle speed range: 1250 1/MIN
Spindle motor power: 55 / 45 kW

Tools

Slots in storage: 24 pos

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Driven tools / milling function included
- - Tool size: 32 x Ø60 mm
- - Swing over bed: Ø1350 mm
- - Max. Turning dia. : Ø1320 mm
- - Std. Turning dia. : Ø900 mm
- - Max. Turning length: 950 mm
- - Chuck size: 40"
- - Spindle nose: Ø520 flat
- - Spindle bearing dia. : Ø200 mm
Qualitative Machine Benefits:
- - Rapid (x / y - axis): 24 m/min
- - Traverse (x / y - axis): 610 / 950 mm
- - Feed motor (x / y - axis): 6 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
