Used HYUNDAI 450 - 2001 - Injection moulding machine for sale | gindumac.com

Show in original language

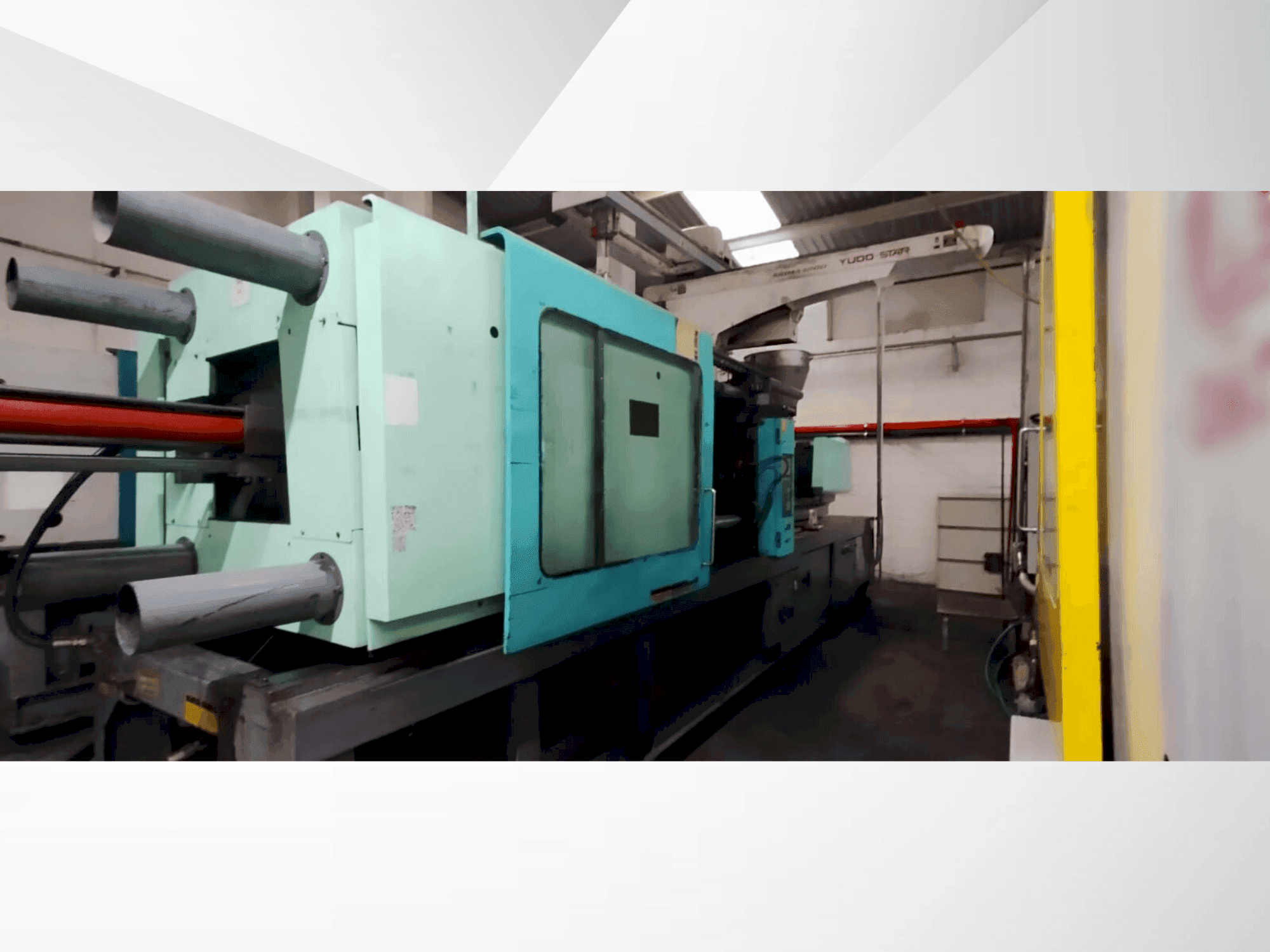

This HYUNDAI 450 injection moulding machine was manufactured in 2001. It features a screw diameter of 76 mm, an injection pressure of 1840 ㎏/㎠, and a mould clamping force of 450 tons. The machine has a total power capacity of 88.18 kW and a hydraulic oil reservoir with a capacity of 900 liters. This is an excellent opportunity to acquire the HYUNDAI 450 machine we have for sale. Reach out for more information.

Overview

brand: Hyundai
year: 2001
MODEL: 450
production hours: 0
application type: Injection Moulding
Location: Mexico
machine type: Hydraulic Injection Moulding Machine

Technical Information - Hyundai 450

General Data

Measurements width: 1700 MM
Measurements depth: 8500 MM
Measurements height: 2600 MM

Injection Unit

Screw diameter: 76 mm
Shot weight: Maximum 1336 g
Stroke volume: 1452 m CM³
Injection pressure: 1840 kg/cm2 BAR
Heating capacity: 33.18 kw

Clamping unit

Clamping force: 450 Ton KN
Distance between bars: 810 x 810 mm
Size of mold platens: 1175x1120 mm
Ejector stroke: 150 mm
Ejector force for / back: 11 ton

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum metering stroke: 320 mm
- - Pump driving motor: 55 kw
- - Total power capacity: 88. 18 kw
- - Mould thickness: 800/380 mm
- - Daylight opening: 1550 mm
- - Clamping system double toggle
- - Injection rate: 394 cc/sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
