HYUNDAI KIA HS500i Milling

Show in original language

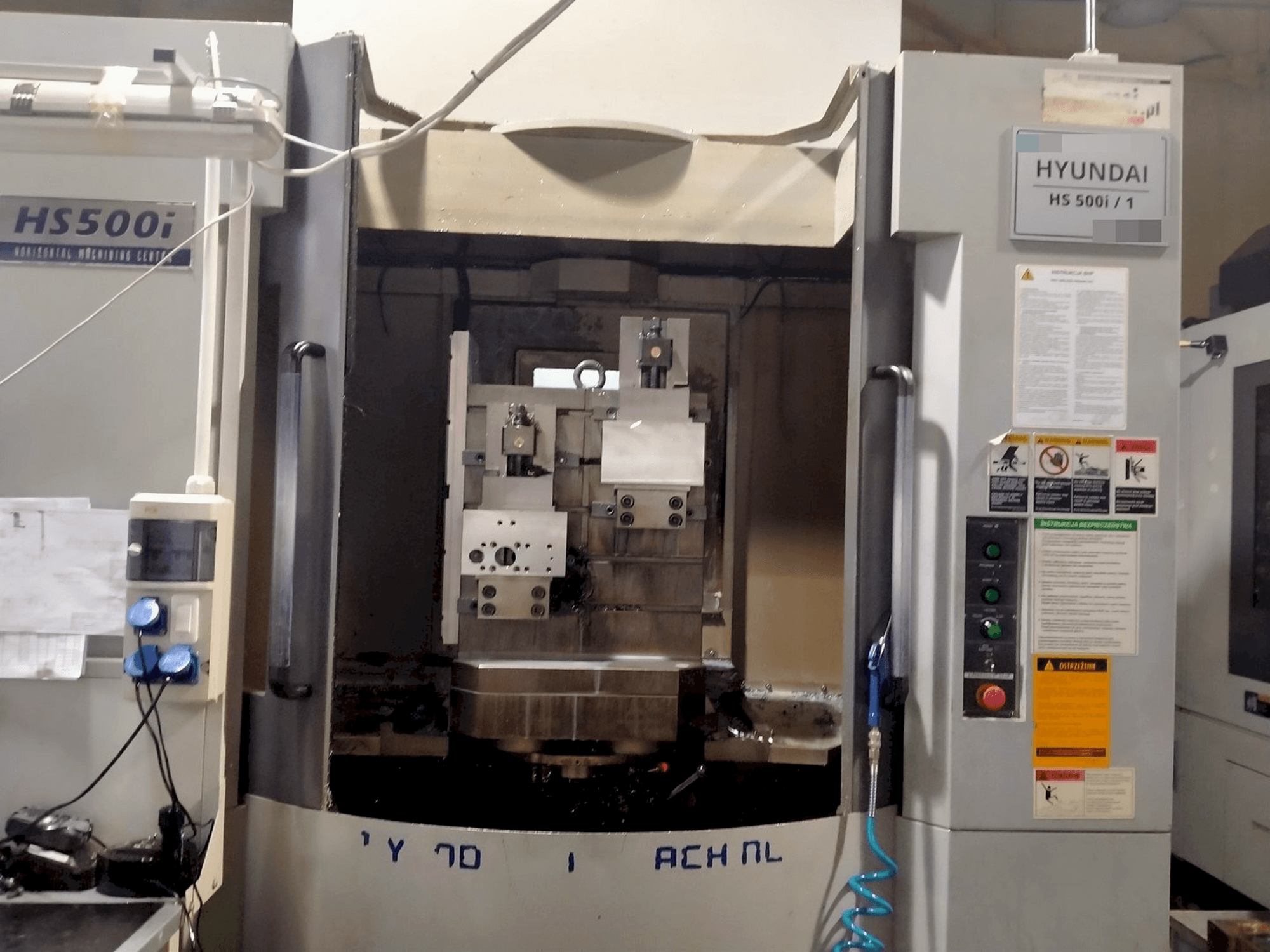

This HYUNDAI KIA HS500i Horizontal Machining center was manufactured in 2008. The 4 axis machine has a total of 21927 working hours. It operates through a FANUC Series 21i-MB control unit. The machine reaches a 12000 rpm spindle speed. It is in good technical condition, has full documentation and is ready for testing.

Overview

brand: HYUNDAI KIA
year: 2008
MODEL: HS500i
production hours: 21927
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - HYUNDAI KIA HS500i

General Data

Measurements width: 2770 mm
Measurements depth: 4950 mm
Measurements height: 2804 mm
Machine weight: 15000 KG

Control Unit

Model: Series 21i-MB
Brand: FANUC

Main drive

Spindle speed range: 8000-12000 1/MIN
Spindle motor power: 22 kW
Number of axis: 4

Movement

X-AXIS Movement: 850 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 750 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Max weight: 8 kg
Max tool diameter: 40 mm
Max tool length: 400 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle taper bt40
- - Automatic tool changer (atc): twin arm type
- - Number of tools: 40 pcs
- - Fast forward (x / y / z): 40/40/40 m / min
- - Yom: 12/2008, first installation in 2009
- - Solid cast iron bed
- - Direct drive ball screws
- - Automatic pallet changer for 2 pallets
- - Automatic tool changer (apc): direct turn
- - Coolant delivery system to the processing area
Qualitative Machine Benefits:
- - Good technical condition
- - Full documentation
- - Still at the production and ready for testing.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
