Hyundai Kia SKT400LMC Lathe machine

Show in original language

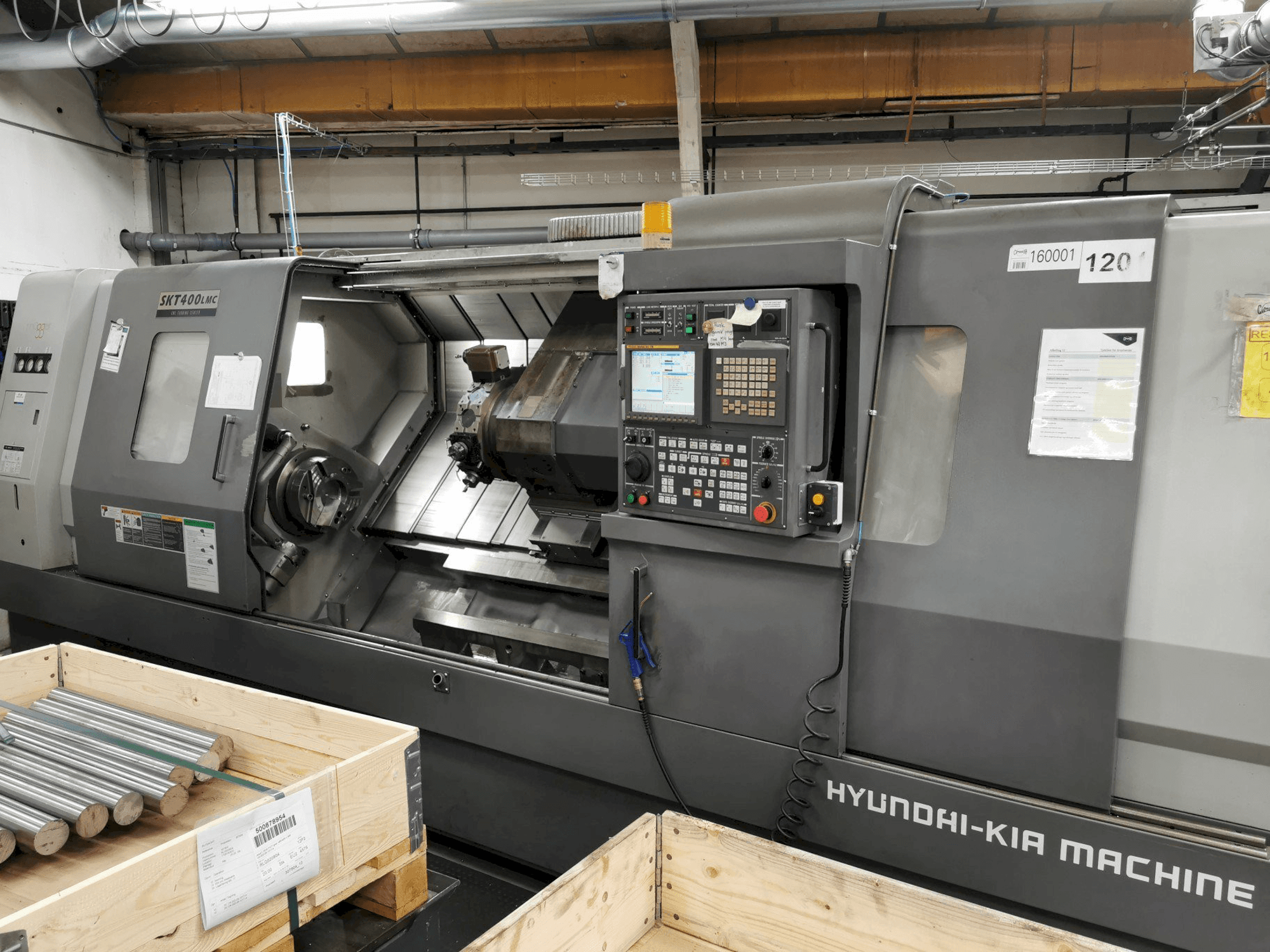

This Hyundai Kia SKT400LMC Lathe machine was manufactured in the year 2008 in Korea. It is equipped with a FANUC 21I-T control unit. This 3 axis machine can perform with a spindle speed up to 2000 rpm.

Overview

brand: HYUNDAI KIA
year: 2008
MODEL: SKT400LMC
production hours: 45564
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - HYUNDAI KIA SKT400LMC

General Data

Measurements width: 6340 mm
Measurements depth: 2165 mm
Measurements height: 2228 mm

Control Unit

Model: Series 21i-TB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 320 mm
Z-AXIS Movement: 2200 mm

Turret

Number of turrets: 1

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 725 mm
- - Maximum cutting diameter 570mm
- - Maximum cutting length 2110mm
- - Bar capacity 117 mm
- - Main spindle motor power 37/30 kw
- - Turret milling power 7. 5/5. 5 kw; speed 4000 rpm
- - 0. 001 degree c axis
- - Tool setter, coolant, hydraulic power work steady
- - Tooling, 3 jaw chuck 380mm (15")
- - Tailstock body travel 2100 mm (taper mt #5, quill diameter & stroke 150 mm)
Qualitative Machine Benefits:
- - Very good condition
- - Machine manual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
