HYUNDAI KIA - VX500FR-MIL-HYU-2007-00001

Name: HYUNDAI KIA VX500
Brand: HYUNDAI KIA
SKU: FR-MIL-HYU-2007-00001
Price: 3249700 INR
Availability: InStock

Rs. 3,249,700

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HYUNDAI KIA VX500 For Sale | gindumac.com

Show in original language

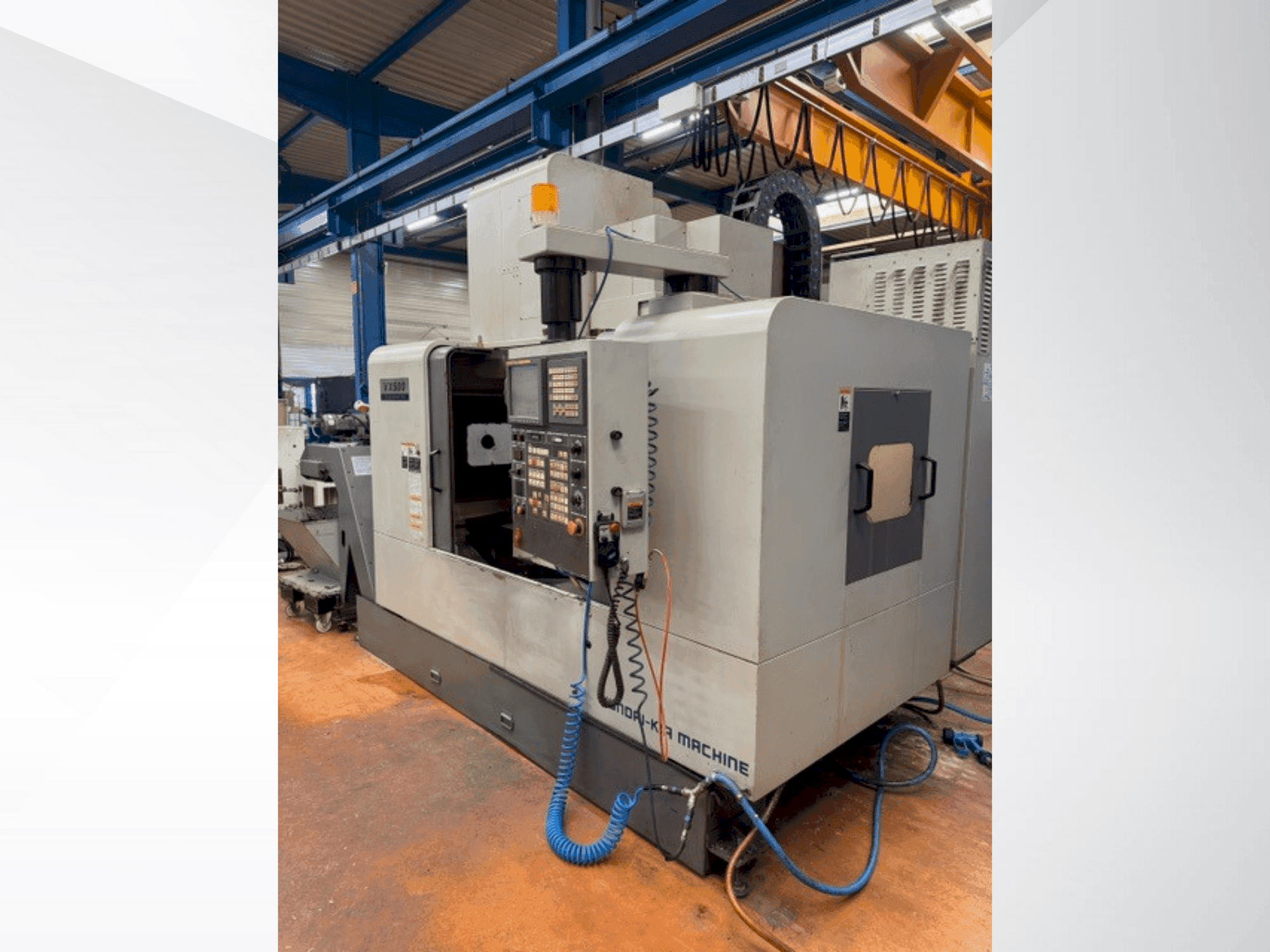

This 4-axis Hyundai Kia VX500 vertical machining center was manufactured in 2007. If you are looking to get high-quality milling capabilities, consider the Hyundai Kia VX500 machine we have for sale. Contact us for more information.

Overview

brand: HYUNDAI KIA
year: 2007
MODEL: VX500
application type: Milling
Location: France
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - HYUNDAI KIA VX500

Control Unit

Brand: FANUC
Model: 21i-MB

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 11/15 kw
Tool taper: ISO 40
Number of axis: 4

Movement

X-AXIS Movement: 1060 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1200 mm
Outer width: 800 mm
Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 785 mm
Table load: 800 kg

Media

Chip conveyor: Yes

Additional equipment

- 4th axis TANSHING positioning function M
- Spindle center coolant: 20 bar pressure
- Spindle center coolant: 20 bar pressure
- Spindle center coolant: 20 bar pressure
- Spindle center coolant: 20 bar pressure

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool changer: random arm 30 stations
- - Tool changer: random arm 30 stations
- - Approx. 40 tool holders
- - 1 clamping vice
- - Cnc: fanuc 21i-mb manual guide
- - Electronic handwheel

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
