Hyundai Wia - F500 PLUSPL-MIL-HYU-2017-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Hyundai Wia F500 PLUS

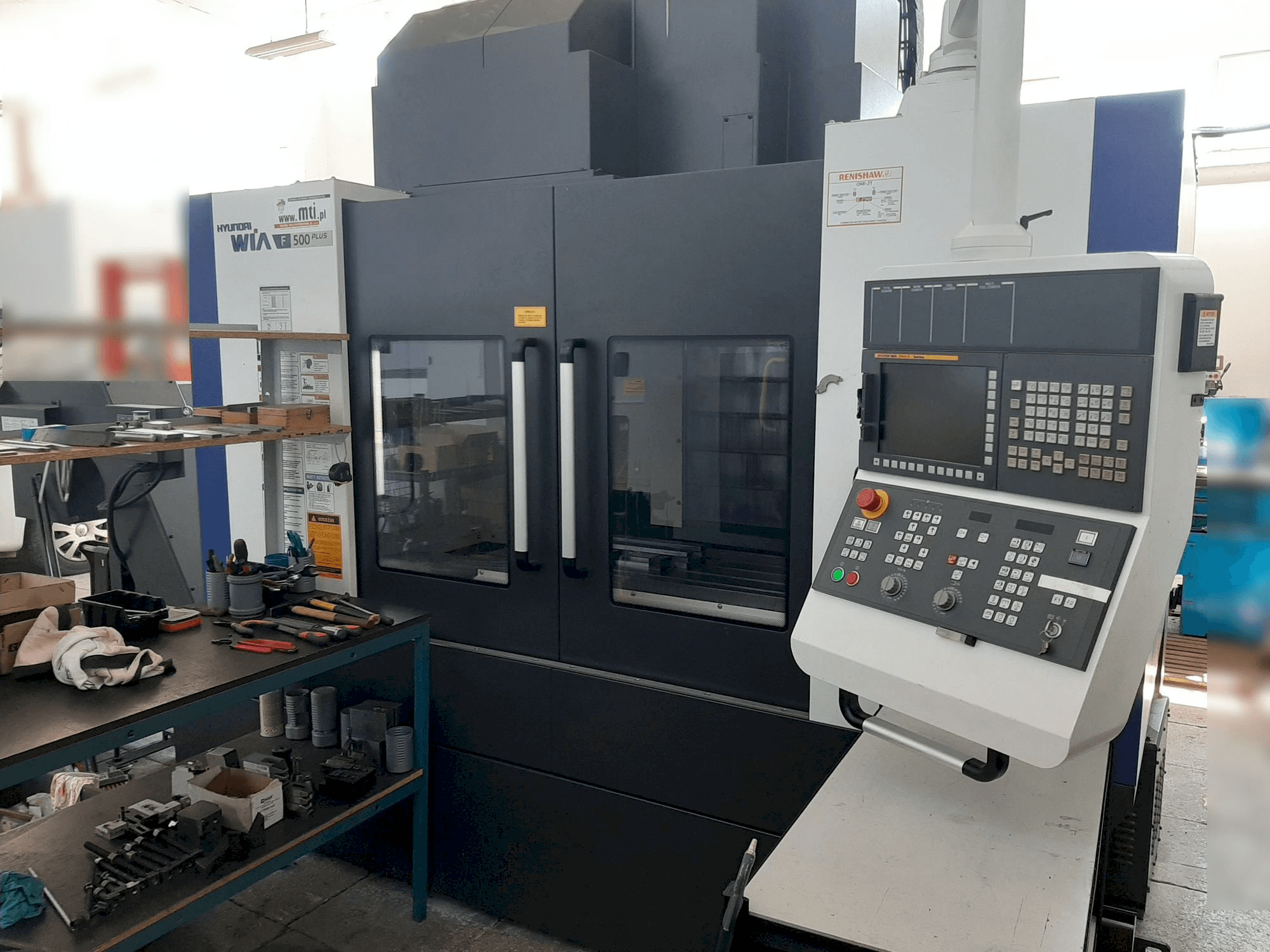

This Hyundai Wia F500 PLUS Vertical Machining Center was built in Korea in the year 2017. It has been working for only approximately 500 hours. This 3 axis machine is operated through a HYUNDAI WIA FANUC i Series control unit. It can work with a spindle speed up to 12000 rpm. This machine includes several tools and accesories as a Renishaw probe for parts. It is almost new and fully operational with its full documentation available.
Overview
- brand: Hyundai Wia
- year: 2017
- MODEL: F500 PLUS
- production hours: 500
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Hyundai Wia F500 PLUS
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Machine Depth: 2690 mm
- Machine Height: 2815 mm
- Machine Weight: 7500 kg
- Table Length: 1200 mm
- Table Load: 800 kg
- Table Width: 500 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1060 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 635 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- 30 pcs of holders
- 1 pc hydraulic holder Schunk
- 1 pc hydraulic vice
- 1 pc tool probe
- 1 PC Renishaw probe for parts
Machine Benefits
Qualitative Machine Benefits
- The machine is almost new and fully operational.
- Today it is out of the production.
- Full documentation available.
Technical Machine Benefits
- Automatic tool changer (atc)
- Tool change time (tool-tool): 1. 3 sek
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
