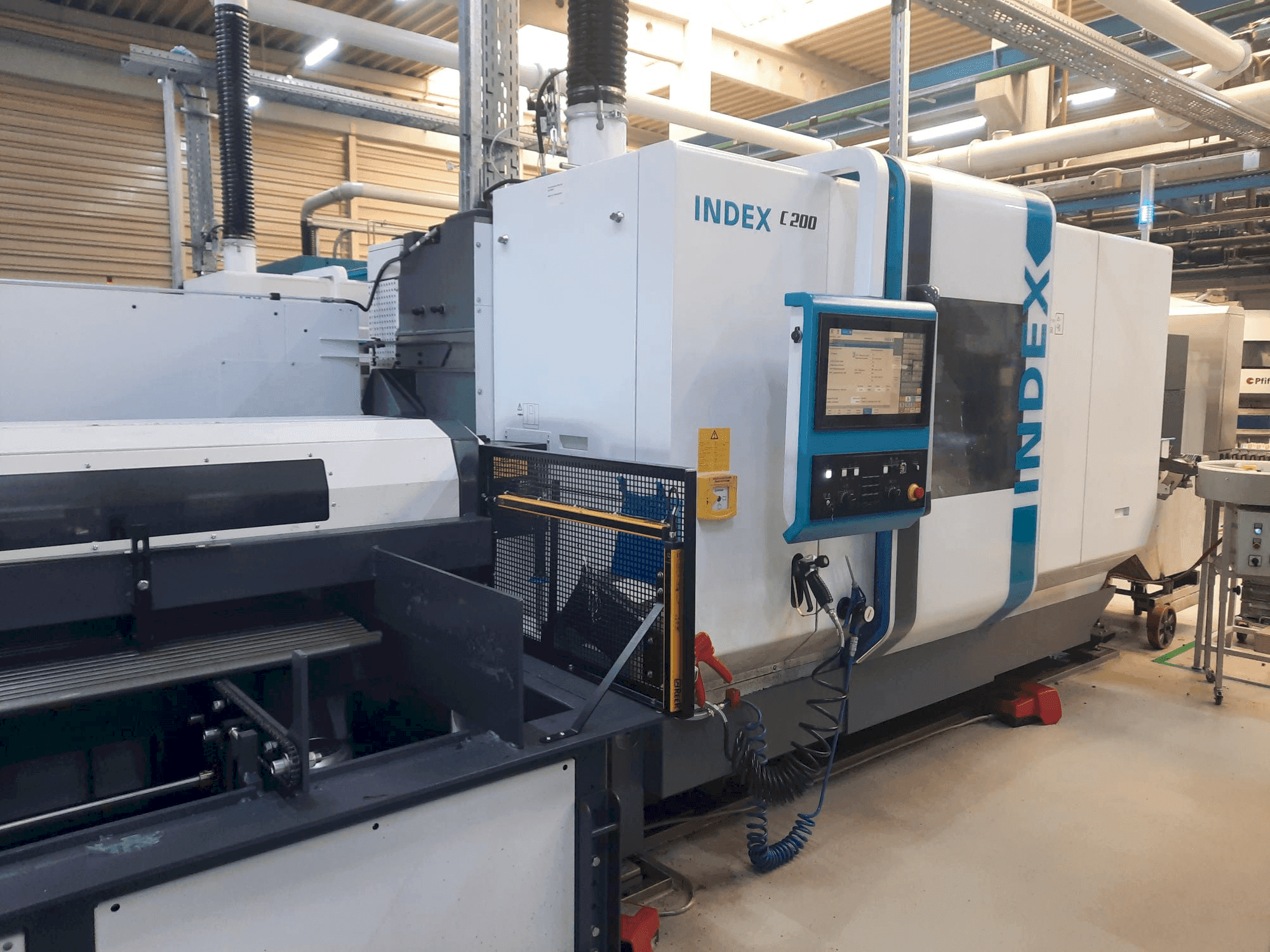

Index - C200DE-TUR-IND-2023-00001

Additional equipment

• - Software options: OPC UA for master computer connection (max. 200 variables). ChipMaster cycle for chip breakage control.
• - Environmental data: Noise level: 73.8 dB(A)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Control system: based on sinumerik 840d solutionline (sl) with sinamics s120 drives. 18. 5" tft color display with pct-touch (ip65). Siemens operate user interface in german.
  • - Interfaces: 4x usb 2. 0 (2 on the control panel, 2 in the control panel). Network-capable for nc data transfer (logical drives).
  • - Safety: siemens safety-integrated (profisafe).
  • - Turret mechanics: hydraulic locking, ac motor with face gearing. Drive power per tool carrier: 10 kw (25 % ed), max. 8,000 rpm.
  • - Tool holder: cylindrical shank d25x48 (din69880) with w-slots for higher repeat accuracy. Driven tools possible in every station (only rotating in working position).
  • - Cooling unit: 13 kw for hydraulics, spindles and control cabinet. Connection for cooling water (20°c ±2°c, 30 l/min, glycol 25 %).
  • - Chip conveyor: hinged belt conveyor (made by knoll) with 180-liter container, discharge height 840 mm. Cooling lubricant system: 750-liter container, 8-bar/20-80-bar pumps.
  • - Bar loader interface: unimag4-compatible (external loaders require specific cover). Maximum bar length: 1,035 mm (short bar operation). Gantry pick-up device: pneumatic gripper (Ø 10-90 mm, max. 3. 5 kg). Conveyor belt with switch for finished parts/remaining parts.
