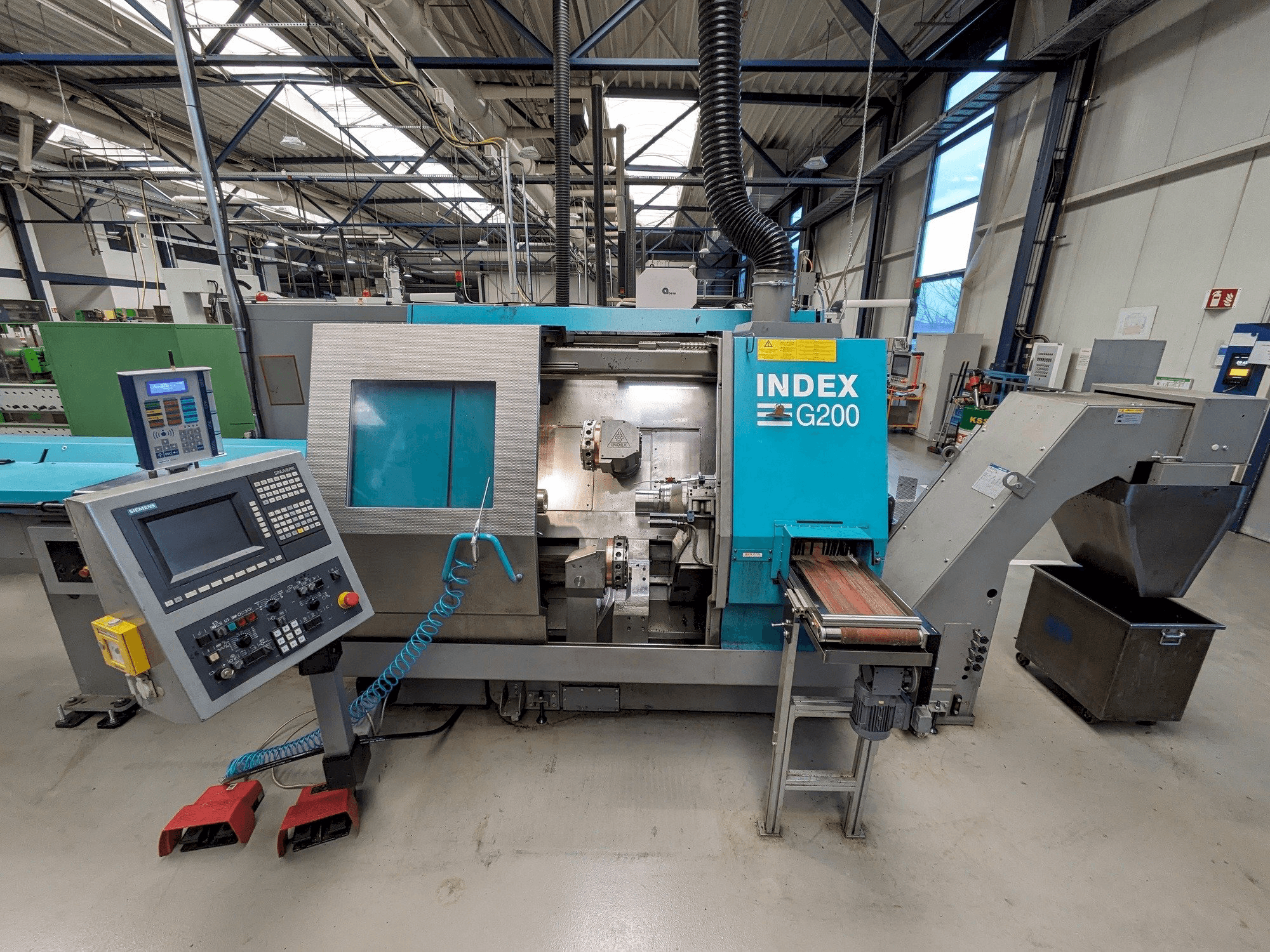

Front view of Index G200 YB RATIOLINE machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Index G200 YB RATIOLINE

Photo Gallery

Index - G200 YB RATIOLINEDE-TUR-IND-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
INDEX G200 YB Ratioline Lathe

Show in original language

This INDEX G200 YB Ratioline Lathe was manufactured in 1995 and completely retrofitted in the year 2016. It is equipped with a SIEMENS SINUMERIK 840 C control unit.

Overview

brand: Index
year: 1995
MODEL: G200 YB RATIOLINE
production hours: 44020
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: INDEX

Technical Information - Index G200 YB RATIOLINE

Control Unit

Brand: INDEX
Model: C200-4

Main drive

Spindle speed range: 5000 RPM 1/MIN
Spindle motor power: 20 kW
Tool taper: HSK D-50

Movement

X-AXIS Movement: 155 MM
Y-AXIS Movement: 120 MM
Z-AXIS Movement: 590 MM
B-AXIS Movement: 360º

Media

Chip conveyor: Yes

Additional Information

Additional equipment

High-pressure coolant pump, exhaust air nozzle, installation and commissioning, acceptance with customer part, bar loading magazine, CO2 extinguishing system, transport, cooling lubricant line.
Switchable high-pressure coolant pump 20 bar
Exhaust air nozzle D=150mm / Bar loading magazine INDEX-MBL 65/3700 / Kraft & Bauer automatic CO2 object extinguishing system
New milling spindle for turret 1 with HSK D-50 tool holder / Switch cabinet cooling unit / New chip hinge belt conveyor / Conveyor belt to the right
Coolant lubricant pump / Portal removal device with actuated gripper / Gripper fingers for workpiece D 4 45 mm and D 40-60 mm
Unimag interface for bar feed (optional)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
