- INGERSOLL HANSEN Gantry 500 Erosion Machine

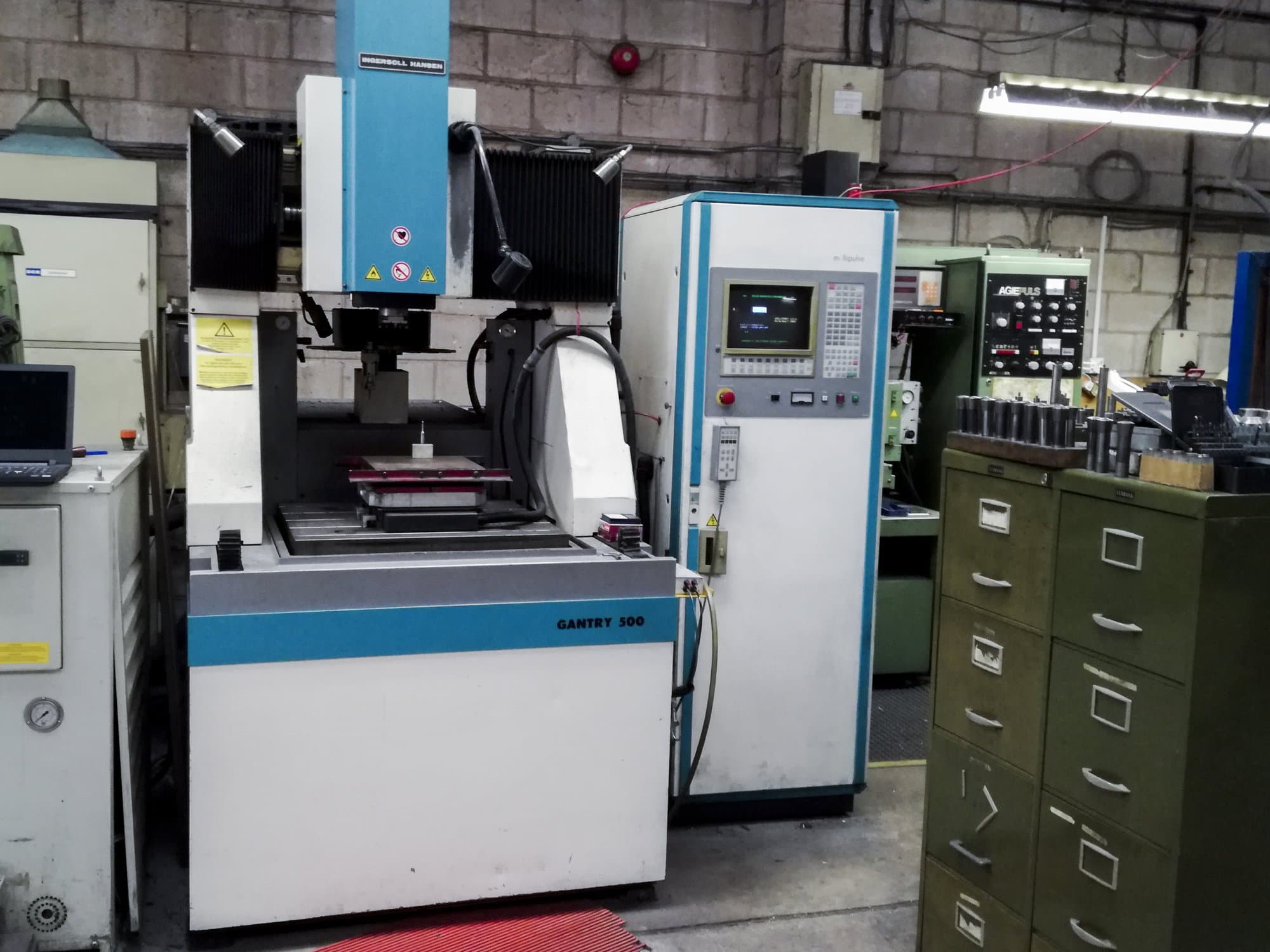

This Gantry 500 is an Erosion Machine built by German manufacturer INGERSOLL HANSEN in 1996. This machine operates through a Rittal Multipulse Control unit with 1989 release. Please note that the machine’s cooling unit is not included in this sale.
Overview
- brand: INGERSOLL HANSEN
- year: 1996
- MODEL: Gantry 500
- application type: EDM
- Location: United Kingdom
- machine type: Die-Sinking EDM Machine
- availability: Sold
Technical Information - INGERSOLL HANSEN Gantry 500
General Data
- Measurements width: 2100 mm
- Measurements depth: 2450 mm
- Measurements height: 2600 mm
- Machine weight: 4800 kg
Control Unit
- Release: 1989
Main drive
- Number of spindles: 1
Movement
- X-AXIS Movement: 525 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 375 mm
Table
- Outer length: 730 mm
- Outer width: 630 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 8.5 kVA
- Dielectic tank: 400 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
