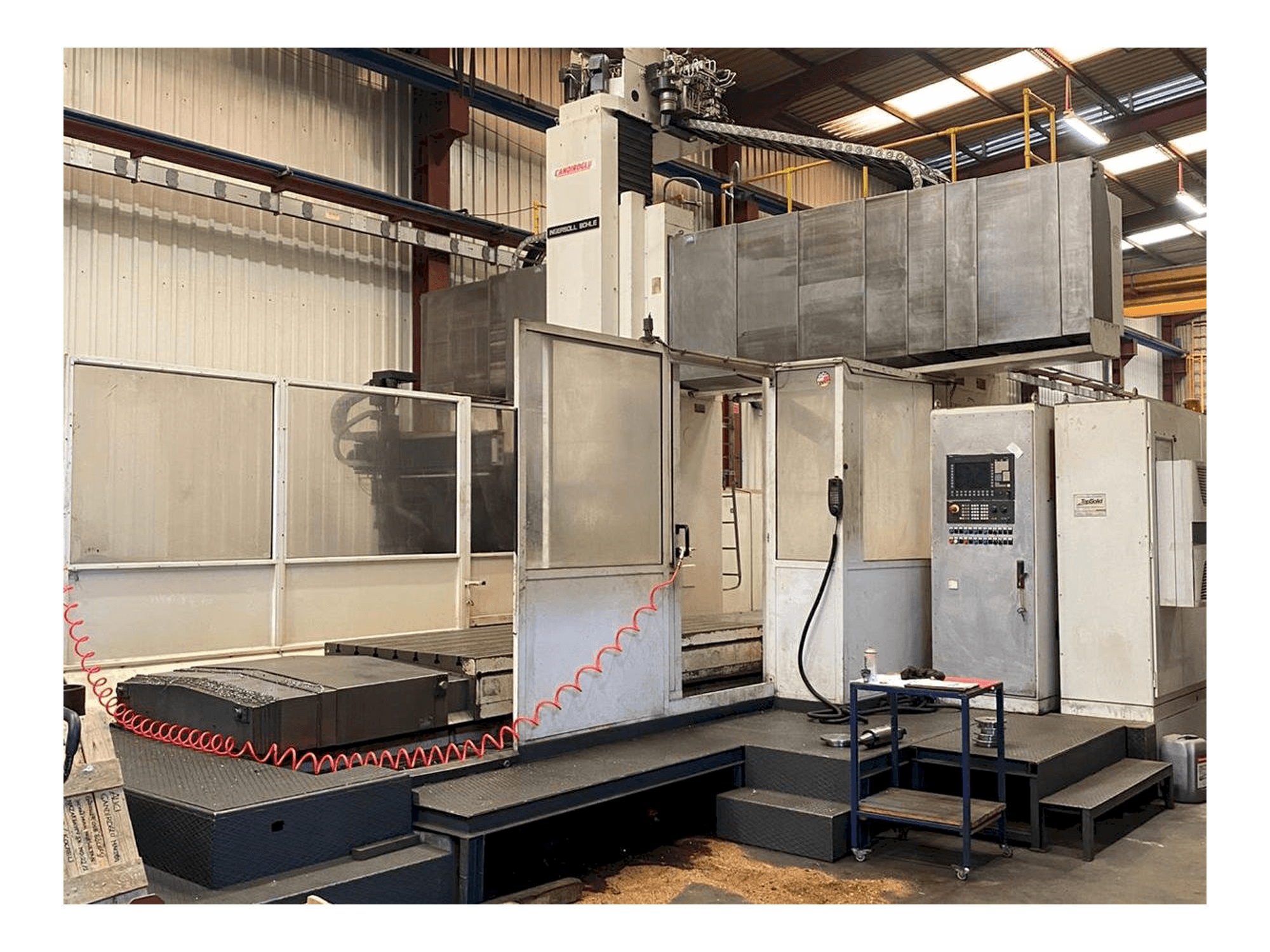

Front view of INGERSOL BOHLE Master Center T1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

INGERSOLL Master Center T1

Photo Gallery

INGERSOLL - Master Center T1TR-MIL-ING-1991-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
INGERSOL BOHLE Master Center T1

Show in original language

This INGERSOLL Master Center T1 Milling Machine was manufactured in the year 1991. It is equipped with a Siemens 840 D control unit. This 5 axis machine is capable of working with a spindle speed 40-4000 rpm, and a table surface 3000x1500 mm.

Overview

brand: INGERSOLL
year: 1991
MODEL: Master Center T1
application type: Milling
Location: Turkey
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - INGERSOLL Master Center T1

General Data

Machine weight: 85000 kg

Control Unit

Model: 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 40-4000 1/MIN
Spindle motor power: 50 kW
Number of axis: 5

Movement

X-AXIS Movement: 3900 mm
Y-AXIS Movement: 2700 mm
Z-AXIS Movement: 1100 mm

Table

Outer length: 3000 mm
Outer width: 1500 mm
Table load: 30000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2000mm between two columns x-y
- - Tool change 60 pcs
- - Head change 3 pcs
- - Torque 2400 nm
- - Spindle mount iso 50
- - T-slot width 28 mm
Qualitative Machine Benefits:
- - Refurbished in 2017

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
