ITEC vmaxS Laser Cutting Machine

Show in original language

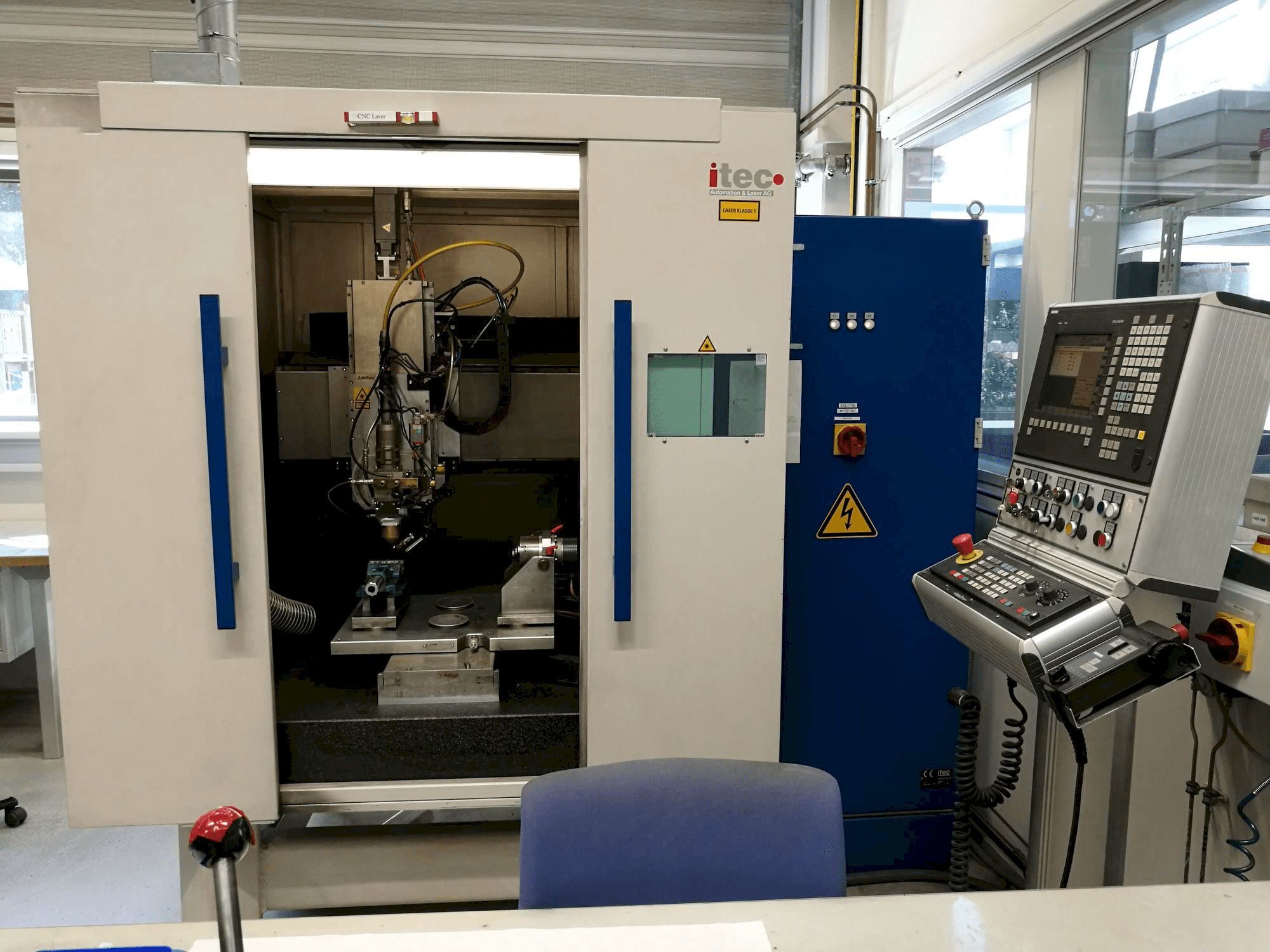

This ITEC vmaxS Laser Cutting and Welding Machine was manufactured in 2005 in Germany. It has been working for 38883 hours since then. It is equipped with a Siemens Sinumerik 840D control unit. This laser welding and cutting machine can operate with a laser power of 1 kW. In includes a trumpf HL1003D laser.

Overview

brand: ITEC
year: 2005
MODEL: vmaxS
production hours: 38883
application type: Cutting
Location: Austria
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - ITEC vmaxS

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Laserpower: 1 kW

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 320 mm
C-AXIS Movement: +-9999 degrees MM

Media

Power consumption: 54 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Trumpf hl1003d laser
- - Laser type: nd-yag solid state laser continuous wave
- - Fibre diameter: 0,3mm
- - Cooling water consumption: max. 66l/min at max. 15°c
- - 4 axes: x y z c
- - Wavelength: 1064 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
