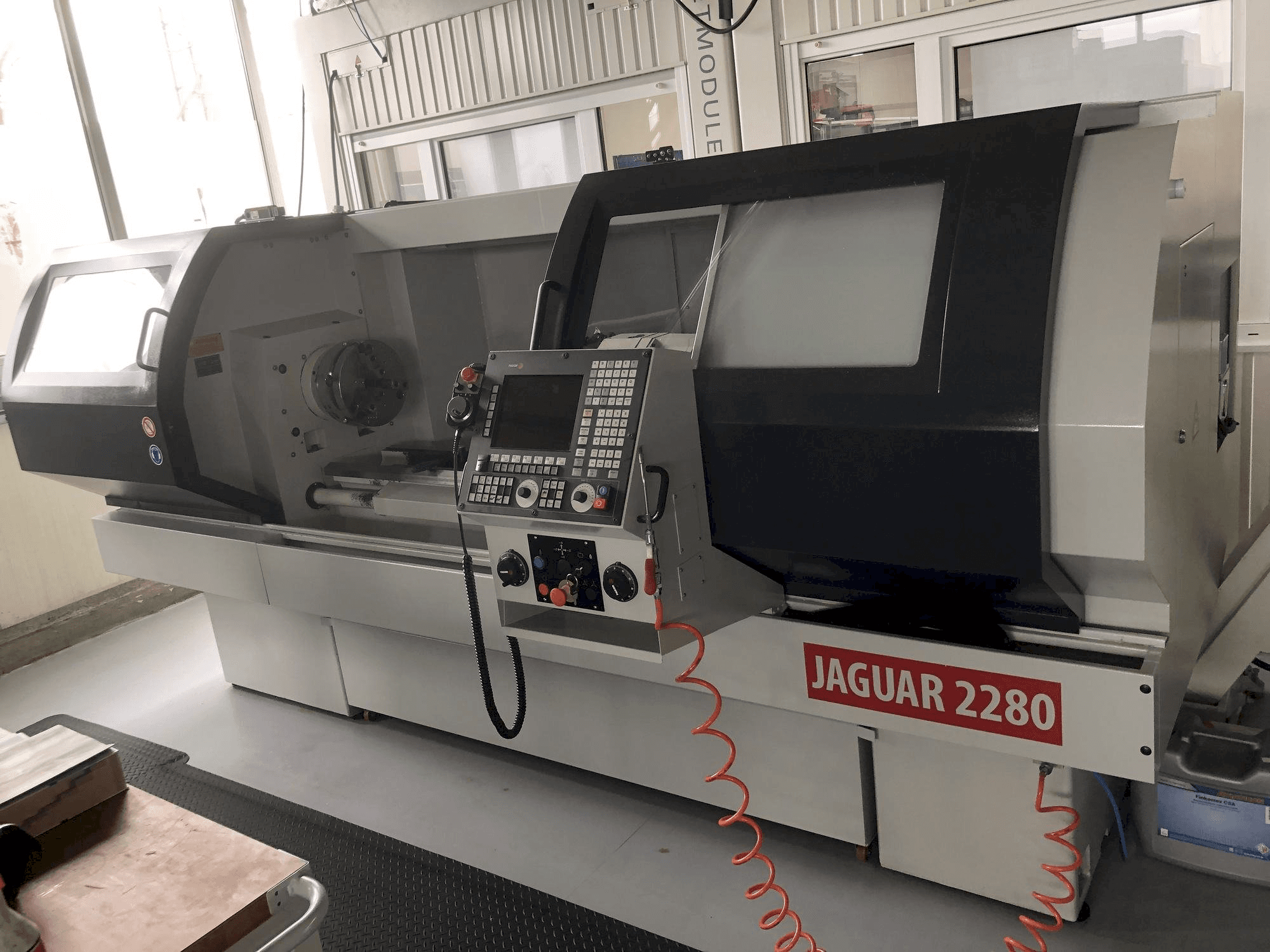

JESSEY - JAGUAR 2280DE-TUR-JES-2016-00001

Additional equipment

• - 8 fold tool turret vdi 40, btp 80 - electromechanical; boring bar 40 mm and turning steel height 25 mm
• - hinged chip conveyor with lateral ejection and chip carriage
• - fixed bezel 25-145 mm
• - fixed steady rest 165 - 385 mm
• - schunk rota-s plus 315-92/3
• - 3 jaw wedge bar chuck 315 mm
• - 92 mm passage with direct spindle mounting with camlock fastening c8 din 55029/c8 with base jaws and hard reversing top jaws
• - 1 SET OF ALIGNMENT ELEMENTS

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Main machine data tip height 280 mm circulation over 560 mm
  • - Spindle torque 1490 nm
  • - Machine accuracy according to din 8605
  • - Control including din-iso programming
  • - 3- speed manual transmission with electronic gear shifting
  • - Multifix quick change toolholder system - size mc with 4 inserts
  • - Prismatic machine guide and precision recirculating ball spindle
  • - Finely ground guideways hardened to 5o rockwell (hrc) with a large bed widht fro 345 mm
  • - Removable bed bridge
  • - Automatic central lubrication system for guideways and ball screws
• Qualitative Machine Benefits:
  • - Chip tray can be pulled out to the front for easy removal of the chips
  • - Ergonomic control panel with 11'' monitor that can be moved along the entire working lenght, keyboard and 2 electronic handwheels for x and z axis
  • - Powerful machine tailstock with 75 mm quill, 200 mm quill stroke and quick clamping (mk5)
  • - Full safety machine enclosure with 2 large sliding doors
  • - 2 viewing windows with safety glass according to din en 12415
  • - Powerful coolant system with 1. 5 bar
  • - Led workspace lighting
  • - Machine according to ce
