➤ Used Johnford SL-70A For Sale | gindumac.com

Show in original language

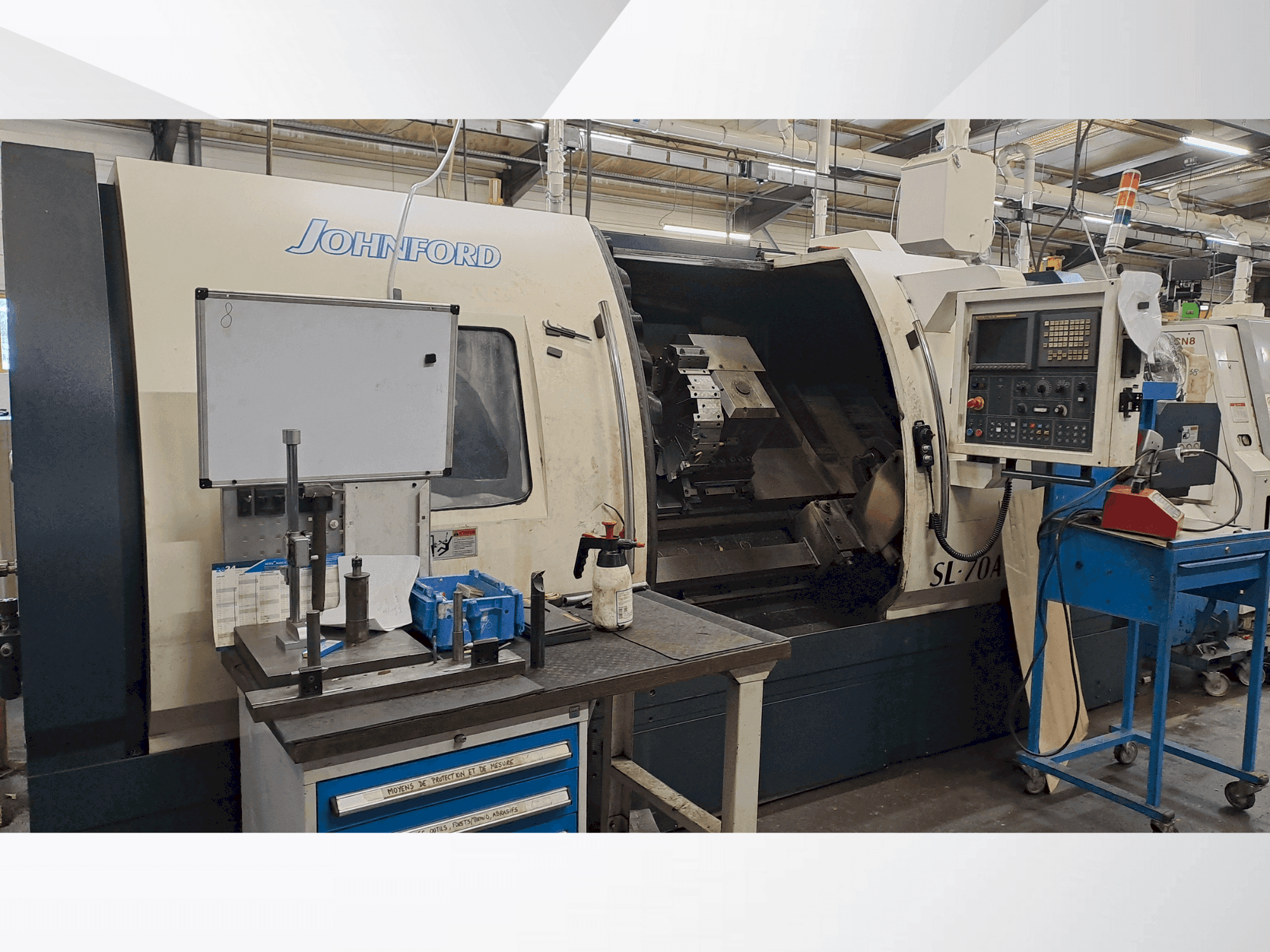

This Johnford SL-70A was manufactured in 2006. A robust horizontal turning machine featuring a swing over bed of 700mm and a swing over cross slide of 540mm. It has a spindle bore of 115mm and a bar capacity ranging from 91 to 102mm, suitable for diverse turning tasks. Consider the opportunity to buy this Johnford SL-70A horizontal turning machine. Contact us for more information about this machine.

Overview

brand: Johnford
year: 2006
MODEL: SL-70A
application type: Turning
Location: Taiwan
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Johnford SL-70A

General Data

Measurements width: 2500 MM
Measurements depth: 5485 MM
Measurements height: 2200 MM
Machine weight: 14000 KG

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 3000 1/MIN
Spindle motor power: 26 kW

Movement

X-AXIS Movement: 295 MM
X-AXIS Rapid traverse: 12 m/min
Z-AXIS Movement: 1550 MM
Z-AXIS Rapid traverse: 15 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 700 mm
- - Swing over cross slide: 540 mm
- - Chuck size: 12"
- - Bar capacity: 91 to 102 mm
- - Number of tools: 12
- - Tailstock travel: 1200 mm
- - Tailstock quill travel: 125 mm
- - Tailstock quill diameter: 125 mm
- - Tailstock spindle taper: mt#5

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
