JS EDM - Wi-200sSI-EDM-JS -2018-00001

Name: JS EDM Wi-200s
Brand: JS EDM
SKU: SI-EDM-JS -2018-00001
Price: 4533300 INR
Availability: InStock

Rs. 4,533,300

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
JS EDM Wi-200s Erosion machine

Show in original language

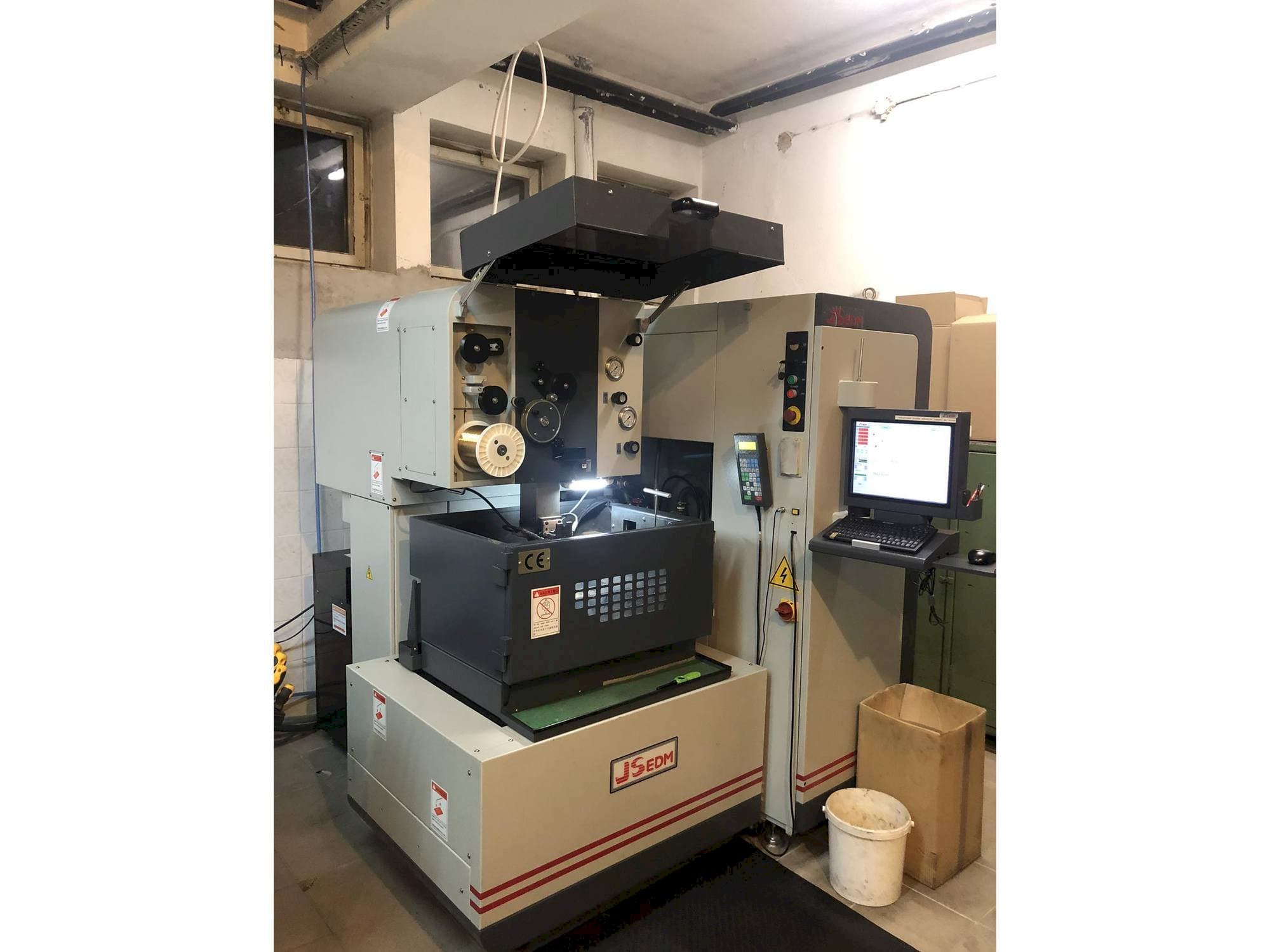

This JS EDM Wi-200s Erosion machine was manufactured in the year 2018 in Taiwan. It is equipped with a JS EDM control unit and has 5 axis.

Overview

brand: JS EDM
year: 2018
MODEL: Wi-200s
application type: EDM
Location: Slovenia
machine type: Wire EDM Machine
availability: Immediately

Technical Information - JS EDM Wi-200s

General Data

Measurements width: 1800 mm
Measurements depth: 1900 mm
Measurements height: 1850 mm
Machine weight: 1700 kg

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 210 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 155 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 450 mm
Outer width: 400 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum workpiece size (lxwxh)- 550x470x115 / 150 mm
- - Wire diameter range- Ø 0. 1~0. 3 mm
- - Max. Taper angle (°)workpiece thickness-±10° (60 mm)
- - Maximum axes load-6 kgs
- - Drive & servo
- - Conductivity
- - Automaticsimulations axis-x / y / u / v (4 axes)
- - U/v axis travel-30/30 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
