➤ Used KIHEUNG Combi-U7 - Vertical Machine Center

Show in original language

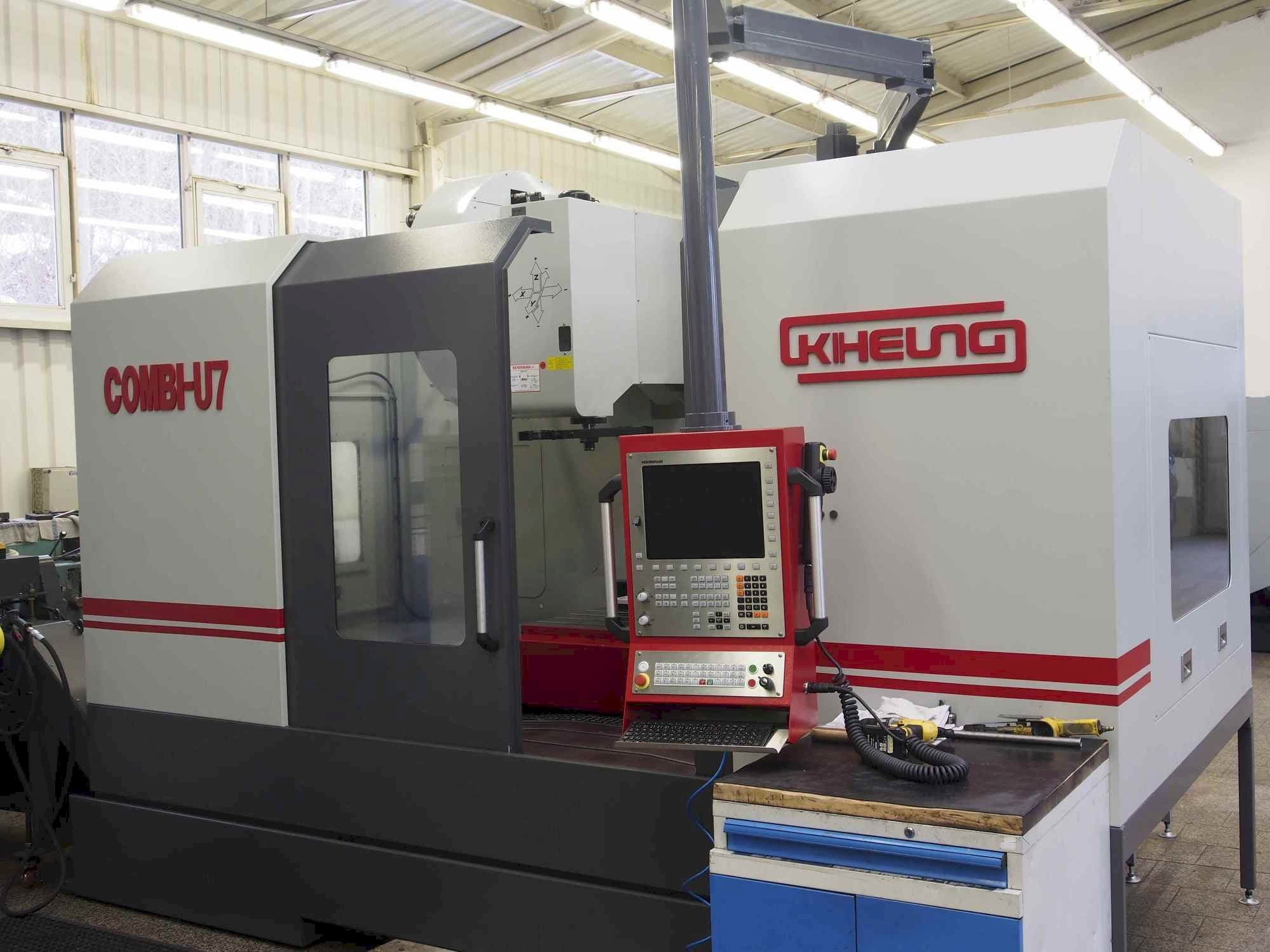

This KIHEUNG Combi-U7 Vertical Machine Center was manufactured in South Korea in the year 2016. It has only 3781 of working hours, of which 988 are spindle hours. This 3 axis machine operates through a Heidenhain iTNC 620 control unit. It has a spindle speed up to 4000 rpm. It includes a tool, workpiece probes, and set of tool holders. It is in very good condition, low hours.

Overview

brand: KIHEUNG
year: 2016
MODEL: Combi-U7
production hours: 3781
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - KIHEUNG Combi-U7

General Data

Machine weight: 12000 kg

Control Unit

Model: iTNC 620
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Spindle motor power: 24/38 kW
Number of axis: 3

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 750 mm
Z-AXIS Movement: 900 mm

Workpiece

Workpiece weight: 3000 kg

Table

Outer length: 1800 mm
Outer width: 700 mm
Number of tslots: 5
Distance between: 125 mm

Tools

Type of tool holder: ISO 50

Additional Information

Additional equipment

Tool and workpiece probes
Set of tool holders

Machine Benefits

Qualitative Machine Benefits

Very good condition
Low hours

Technical Machine Benefits

X,y,z axis feed rate mm/min 10000
Rapid feed rate mm/min 16000
Head manually adjustable

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
