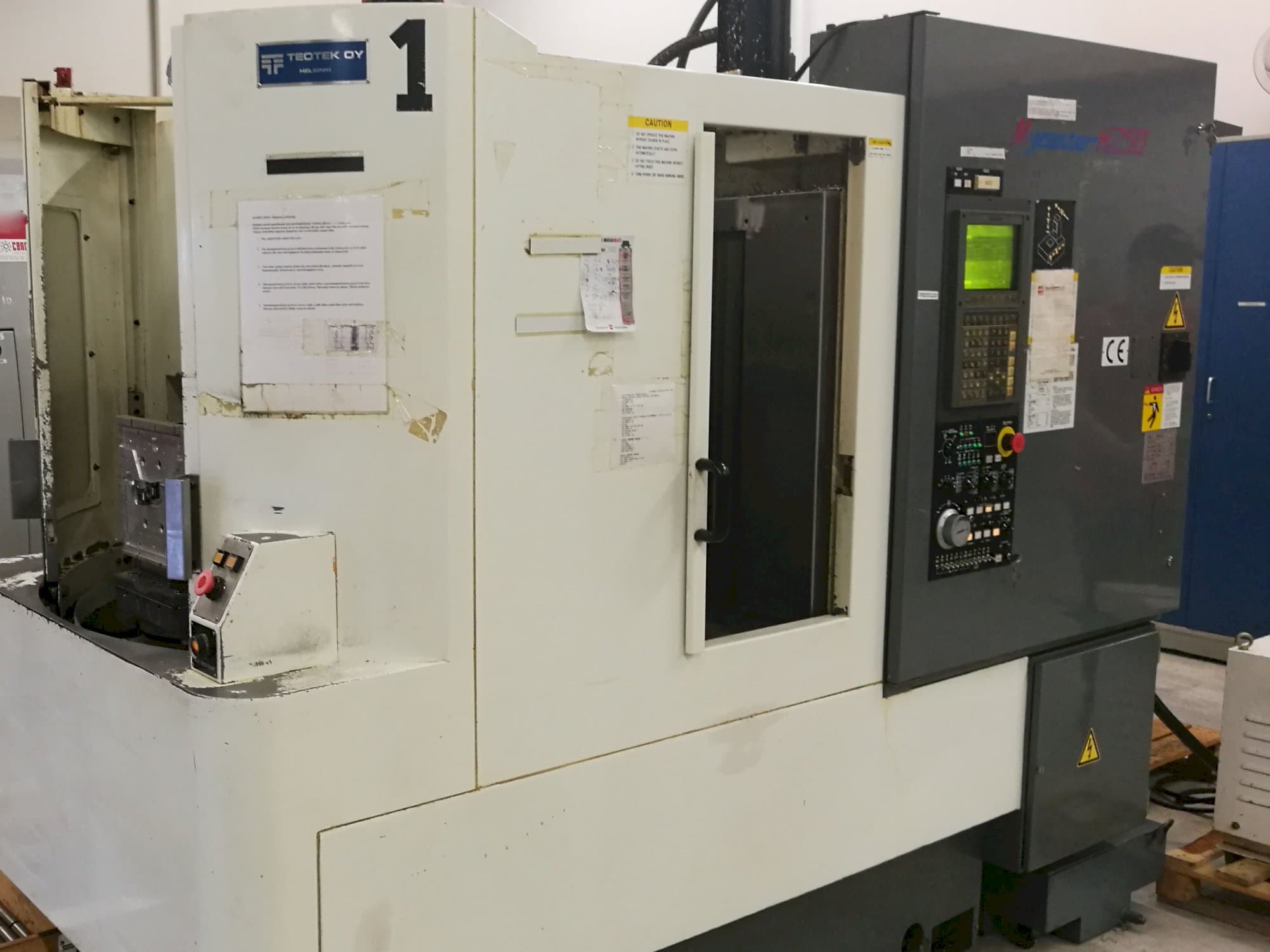

Left view of Kitamura Mycenter H250 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Kitamura Mycenter H250

Photo Gallery

Kitamura - Mycenter H250FI-MIL-KIT-1997-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Kitamura Mycenter H250 Horizontal Machining Center

Show in original language

This Kitamura Mycenter H250 Horizontal Machining Center from 1997 was made in Japan and is controlled through a YASNAC i80M Control unit. During the past, this machine has mainly worked with aluminium, producing pieces for electrical network cabins.

Overview

brand: Kitamura
year: 1997
MODEL: Mycenter H250
application type: Milling
Location: Finland
machine type: Horizontal Machining Centre

Technical Information - Kitamura Mycenter H250

General Data

Measurements width: 1550 mm
Measurements depth: 2850 mm
Measurements height: 2284 mm
Machine weight: 3250 kg

Control Unit

Model: i80M

Main drive

Number of spindles: 1
Spindle speed range: 8000 rpm 1/MIN
Spindle motor power: 3.7 kW

Movement

X-AXIS Movement: 305 mm
Y-AXIS Movement: 305 mm
Z-AXIS Movement: 330 mm
B-AXIS Movement: 360 mm

Table

Outer length: 254 mm
Outer width: 254 mm

Tools

Max weight: 2 kg
Max tool diameter: 50 mm
Max tool length: 20 mm

Media

Main electronic connection: 220 V
Power consumption: 8 kVA
Chip conveyor: Yes

Additional Information

Additional equipment

Toolholders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
