Kitamura Mytrunnion-1 Vertical Machining Center

Show in original language

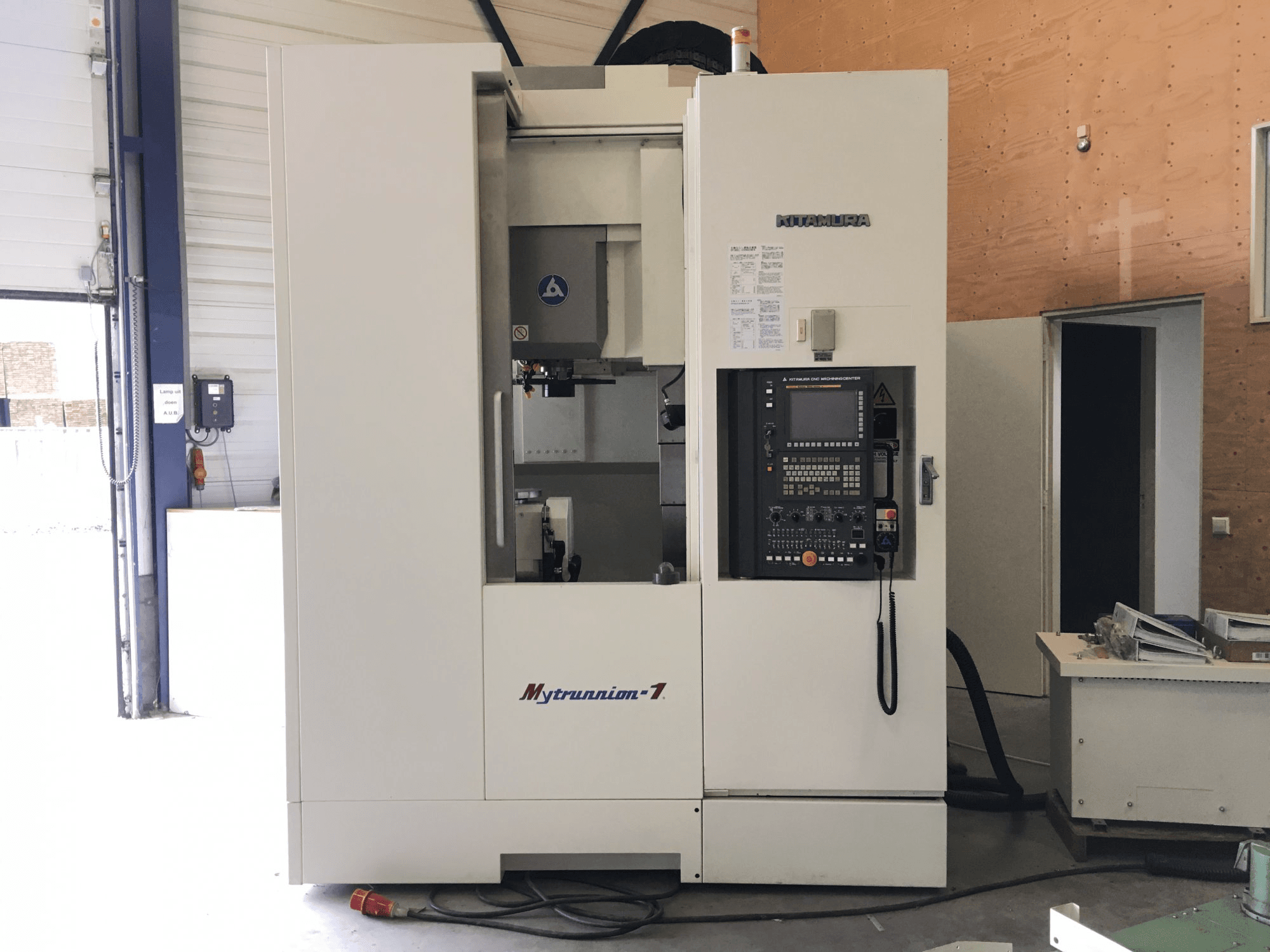

This Kitamura Mytrunnion-1 Vertical Machining Center from 2007 was made in Japan and has a working record of 14000 production hours. Operated through a FANUC Series 300i Control unit, this high precision 5-axis center has mainly worked with stainless steel during the past and stands out due to its efficient high speed spindle.

Overview

brand: Kitamura
year: 2007
MODEL: Mytrunnion-1
production hours: 14000
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Kitamura Mytrunnion-1

General Data

Measurements width: 2185 mm
Measurements depth: 2540 mm
Measurements height: 3009 mm
Machine weight: 6850 kg

Control Unit

Model: Series 300i
Brand: FANUC

Main drive

Spindle speed range: 15000 1/min

Workpiece

Workpiece x: 325 mm
Workpiece y: 510 mm
Workpiece z: 460 mm
Workpiece weight: 20 kg

Tools

Max weight: 2 kg
Max tool diameter: 60 mm
Max tool length: 250 mm

Media

Main electronic connection: 200 / 220 V
Power consumption: 35 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
