KNUTH KB 1400 Milling

Show in original language

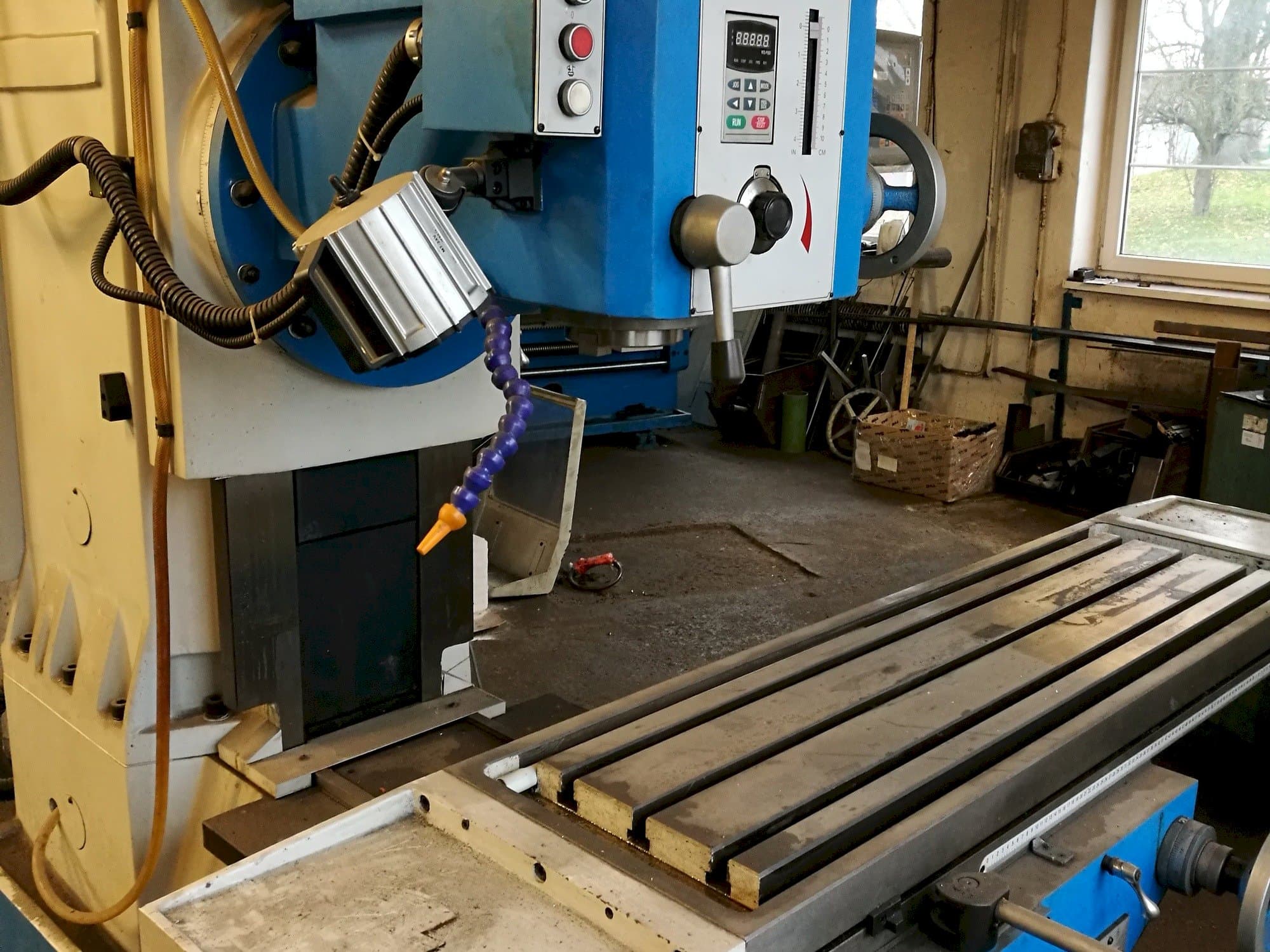

This KNUTH KB 1400 Milling Machine was manufactured in 2011 in Germany. This 3 axis machine works with a speed range of 1800 rpm. It includes tool holders and it is in very good condition, just like new.

Overview

brand: KNUTH
year: 2011
MODEL: KB 1400
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold

Technical Information - KNUTH KB 1400

General Data

Measurements width: 2290 mm
Measurements depth: 1770 mm
Measurements height: 2120 mm
Machine weight: 3660 kg

Main drive

Number of spindles: 1
Spindle speed range: 1800 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 950 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 1400 mm
Outer width: 400 mm

Tools

Type of tool holder: ISO 50

Additional equipment

- Tool holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle axis-to-table surface distance 150 - 650 mm
- - Head swivel range ± 45°
- - Rapid feeds 1. 670 mm/min
- - Motor rating main drive 7,5 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
