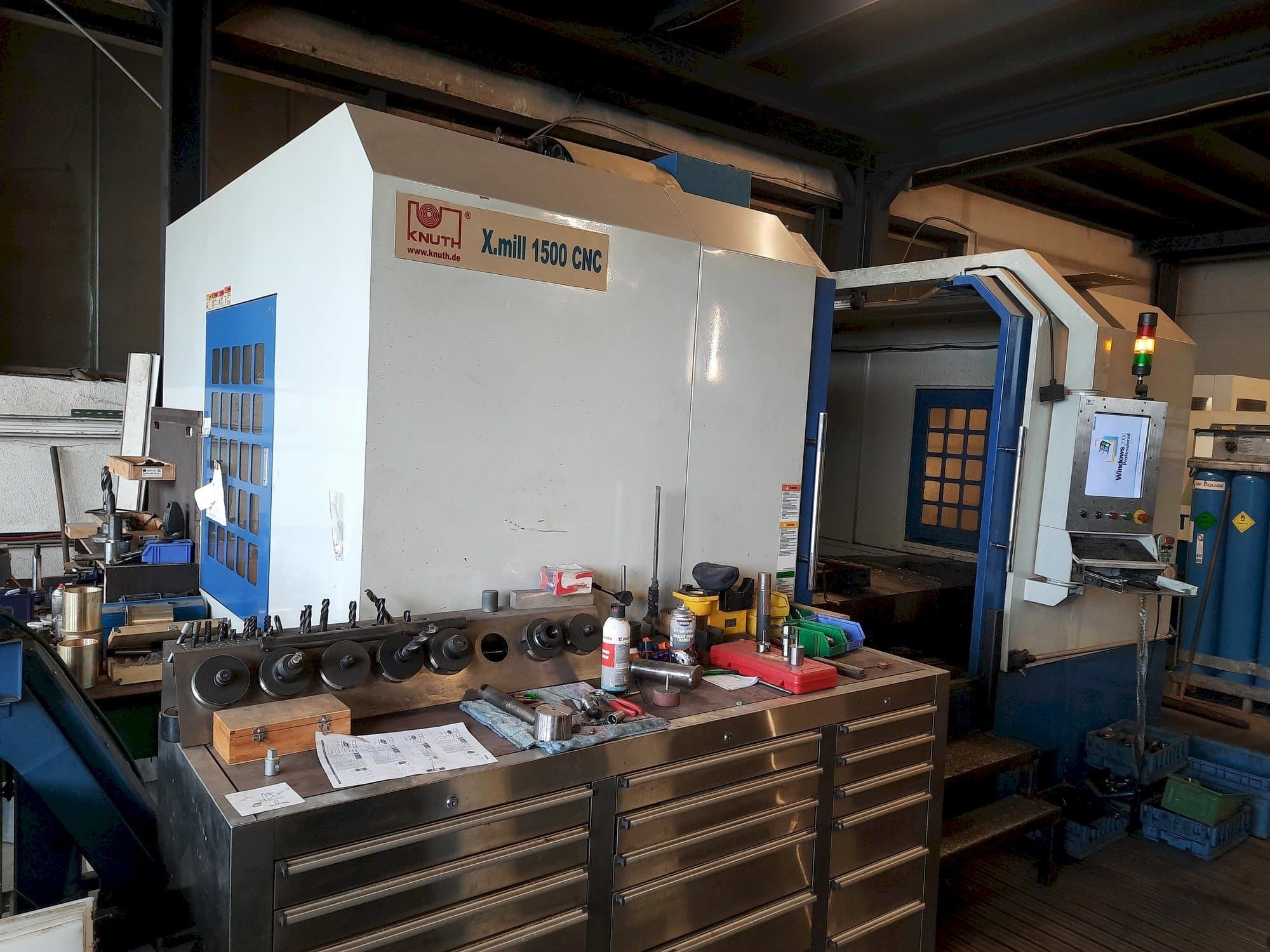

Front view of KNUTH X-Mill 1500 CNC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KNUTH X-Mill 1500 CNC

Photo Gallery

KNUTH - X-Mill 1500 CNCDE-MIL-KNU-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
KNUTH X-Mill 1500 CNC Milling Machine

Show in original language

This KNUTH X-Mill 1500 CNC Milling Machine was manufactured in 2011 in Germany. It is equipped with a Knutz GPlus 450 control unit and has 3 axis. This machine has a spindle speed range of 60 - 8000 rpm.

Overview

brand: KNUTH
year: 2011
MODEL: X-Mill 1500 CNC
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - KNUTH X-Mill 1500 CNC

General Data

Measurements width: 4270 mm
Measurements depth: 3413 mm
Measurements height: 3067 mm
Machine weight: 14000 kg

Control Unit

Model: GPlus 450

Main drive

Number of spindles: 1
Spindle speed range: 60 - 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 700 mm

Table

Outer length: 1700 mm
Outer width: 800 mm
Table load: 1500 kg

Tools

Type of tool holder: BT 50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - T-slots: 5 x 22 x 135 mm
- - Spindle nose table distance: 170 - 870 mm
- - Discharge: 800 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
