Krauss Maffei 110-390/90 CZ Injection Moulding Machine

Show in original language

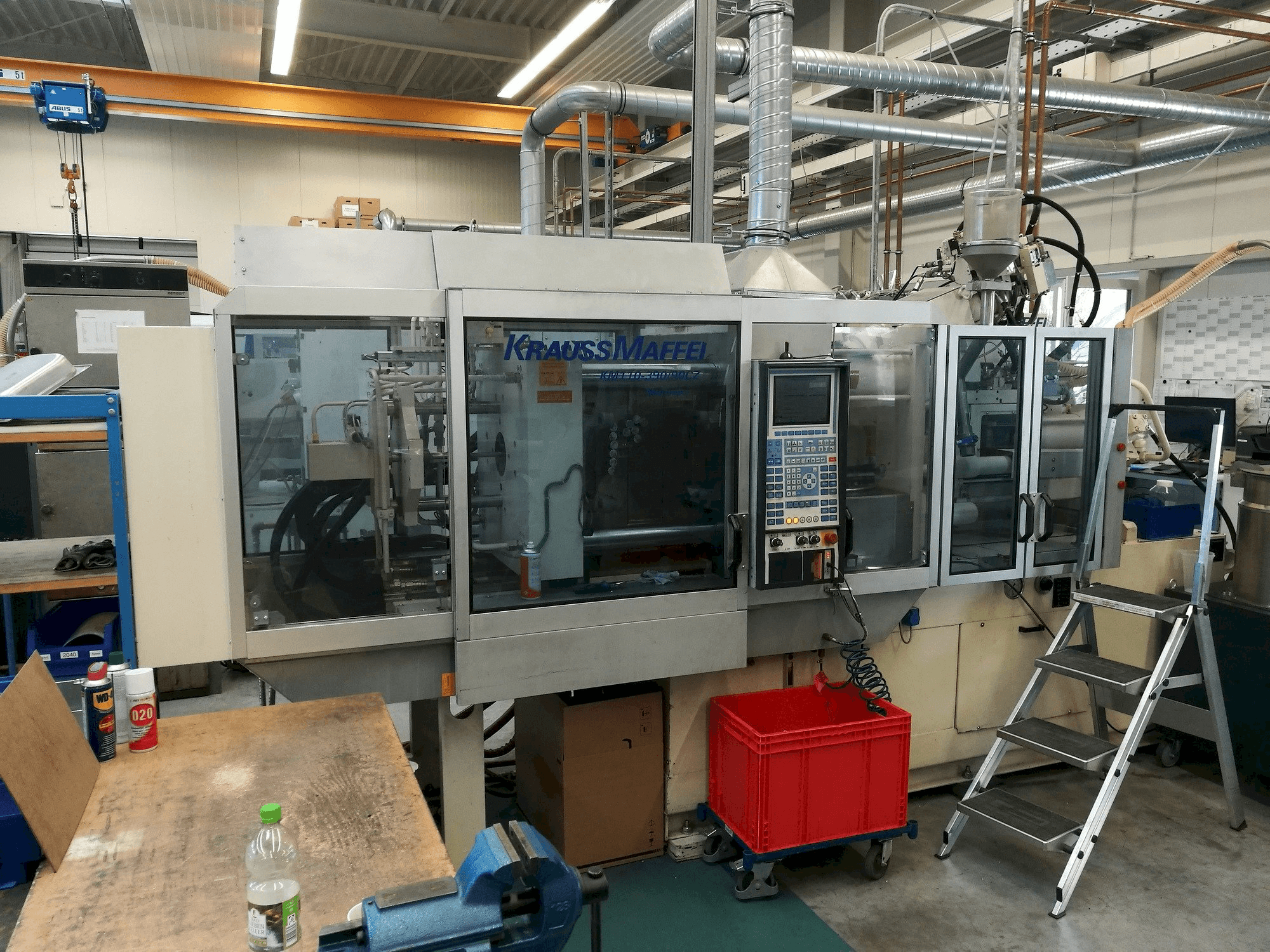

This Krauss Maffei 110-390/90 CZ Injection Moulding Machine was manufactured in 2002 in Germany and has been working for 56239 hours. Operated through a Krauss Maffei Control unit, this model is designed as a 2 component machine and is ready for operation. Currently it is only used as 1 component machine. A turntable is included additionally.

Overview

brand: Krauss Maffei
year: 2002
MODEL: 110-390/90 CZ
production hours: 56239
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 110-390/90 CZ

General Data

Measurements width: 4380 mm
Measurements depth: 1530 mm
Measurements height: 4030 mm
Machine weight: 7000 kg

Control Unit

CNC main language: German
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 40 mm
Shot weight: 185 g/PS
Stroke volume: 204 cm³
Injection pressure: 1860 bar
Plasticizing rate max.: 29 g/s PS
Screw speed: 391 rpm
Heating capacity: 12 kW
Adjustable heating zones: 5

Clamping unit

Clamping force: 1100 kN
Opening stroke: 900 mm
Distance between bars: 470 mm
Size of mold platens: 745x770 mm
Ejector stroke: 150 mm
Ejector force for / back: 22 kN

Media

Main electronic connection: 400 V

Additional Information

Machine history

End product: Prototypes
Industries: Automotive

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
