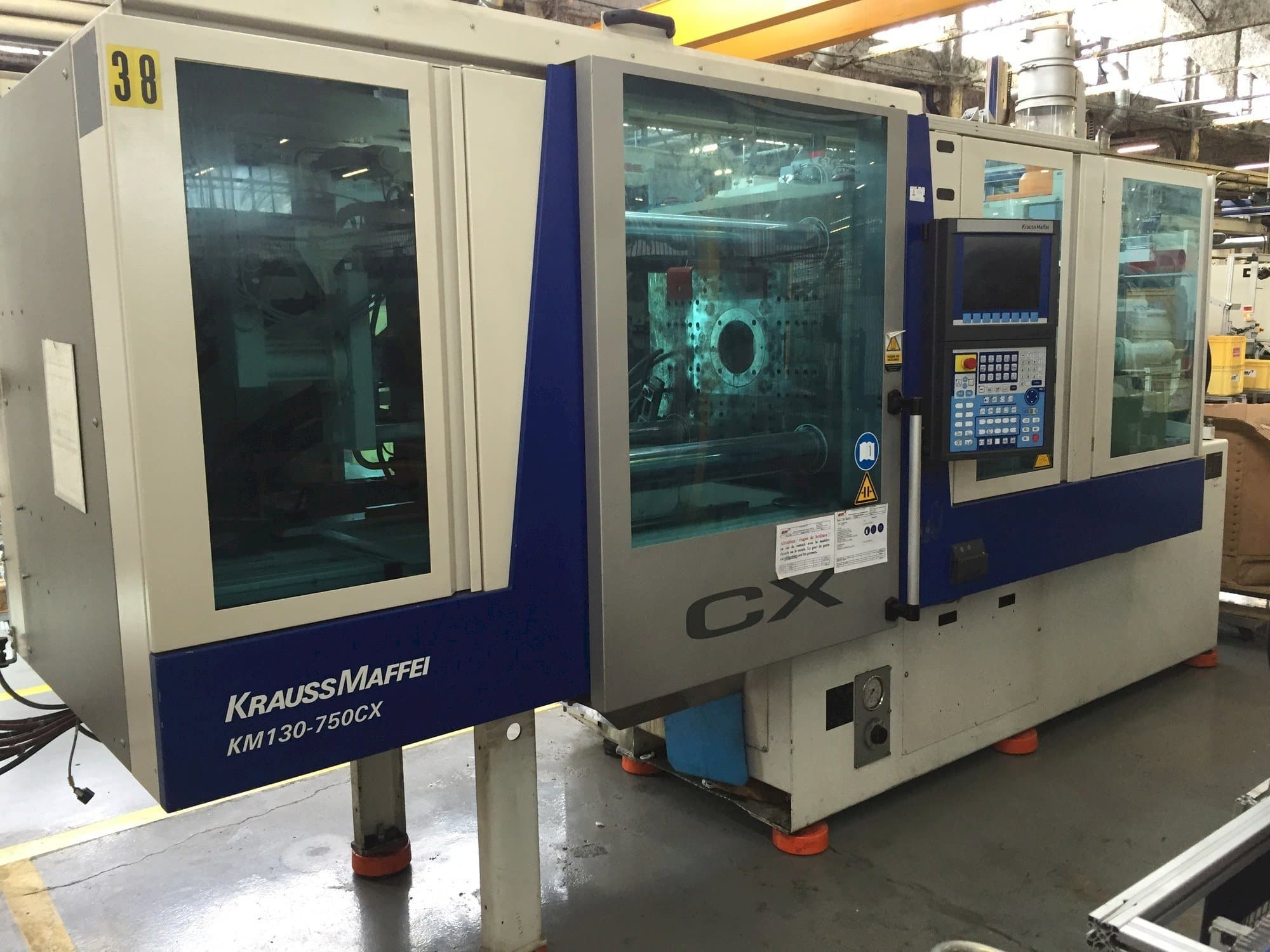

Front view of Krauss Maffei 130-750 CX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 130-750 CX

Photo Gallery

Krauss Maffei - 130-750 CXFR-INJ-KRA-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 130-750 CX Injection Moulding Machine

Show in original language

This Krauss Maffei 130-750 CX Injection Moulding Machine was built in France in 2006 and counts with approximately 55000 hours. This machine can perform with a clamping force of 130 kN and a screw diameter of 40 mm.

Overview

brand: Krauss Maffei
year: 2006
MODEL: 130-750 CX
production hours: 55000
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 130-750 CX

General Data

Measurements width: 4300 mm
Measurements depth: 1500 mm
Measurements height: 2200 mm
Machine weight: 7900 kg

Injection Unit

Screw diameter: 40 mm
Stroke volume: 318 CM³
Injection pressure: 2336 bar

Clamping unit

Clamping force: 1300 kN
Max open daylight: 900 mm
Distance between bars: 470 x 470 mm
Mould height max: 300 mm

Media

Power consumption: 22 + 15,6 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
