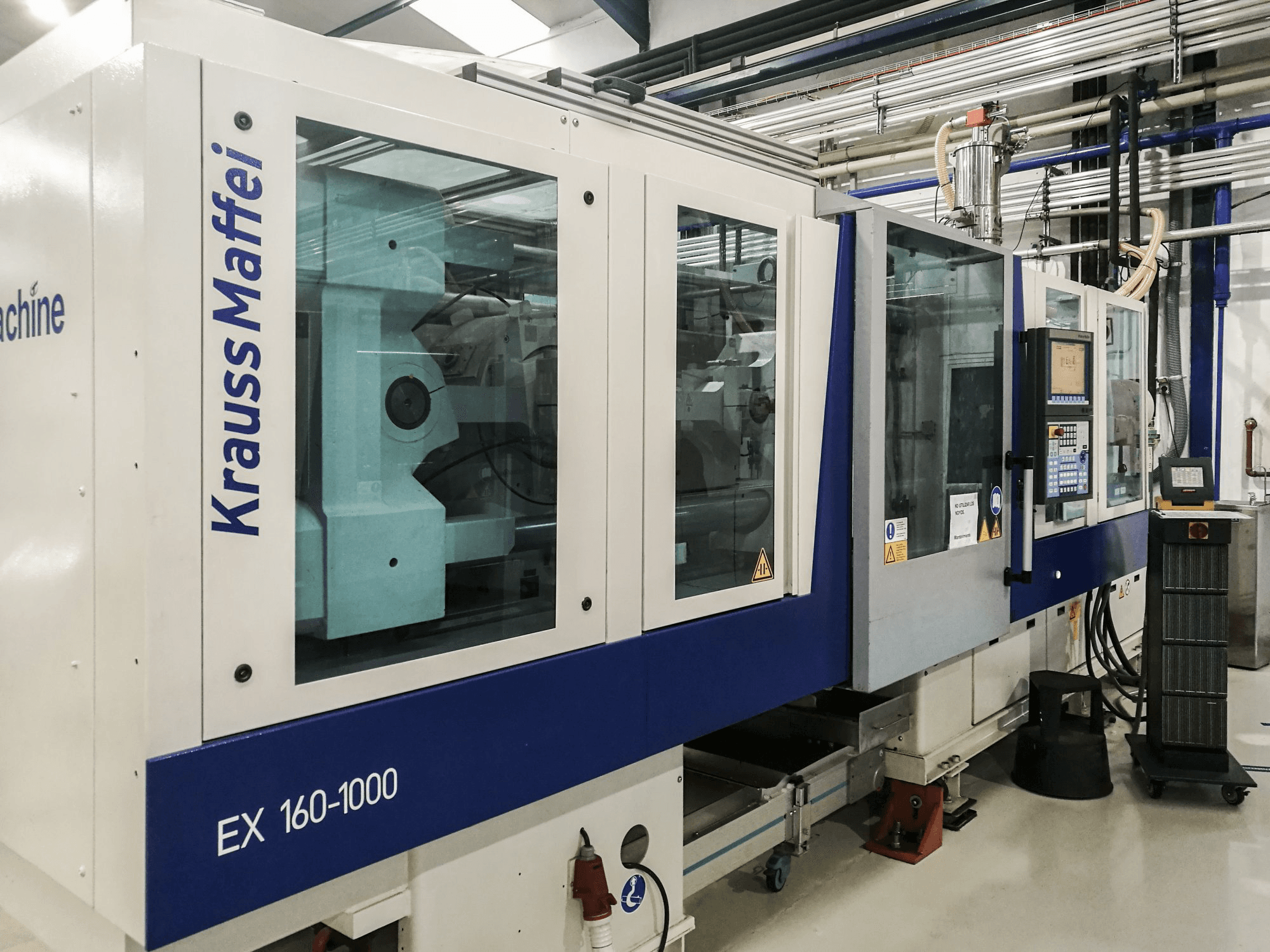

Left view of Krauss Maffei 160-1000 EX Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 160-1000 EX

Photo Gallery

Krauss Maffei - 160-1000 EXES-INJ-KRA-2008-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Krauss Maffei 160-1000 EX | Injection Moulding Machine For Sale

Show in original language

This Krauss Maffei 160-1000 EX Injection Moulding Machine was manufactured in 2008 in Germany and has a working record of 63724 production hours ever since. Operated through a Krauss Maffei MC5 control unit, the machine has handled polyethylene as main material and produced plastic caps in the past. The condition of the equipment is excellent due to regular maintenance and levelling every 6 months. For this machine a warranty on spare parts is included.

Overview

brand: Krauss Maffei
year: 2008
MODEL: 160-1000 EX
production hours: 63724
application type: Injection Moulding
Location: Spain
machine type: Electrical Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 160-1000 EX

General Data

Measurements width: 6700 mm
Measurements depth: 1600 mm
Measurements height: 2300 mm
Machine weight: 13200 kg

Control Unit

Brand: KRAUSS MAFFEI
Model: MC5

Injection Unit

Screw diameter: 50 mm
Shot weight: 393 g/PS
Stroke volume: 432 cm³
Plasticizing rate max.: 61,1 g/s PS
Screw speed: 416 1/min
Nozzle pressure: 60 kN

Clamping unit

Clamping force: 1600 kN
Opening stroke: 450 mm
Mould height min: 300 mm
Mould height max: 550 mm
Ejector stroke: 150 mm
Ejector force for / back: 22 kN

Additional equipment

- (Warranty on Spare Parts included)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
