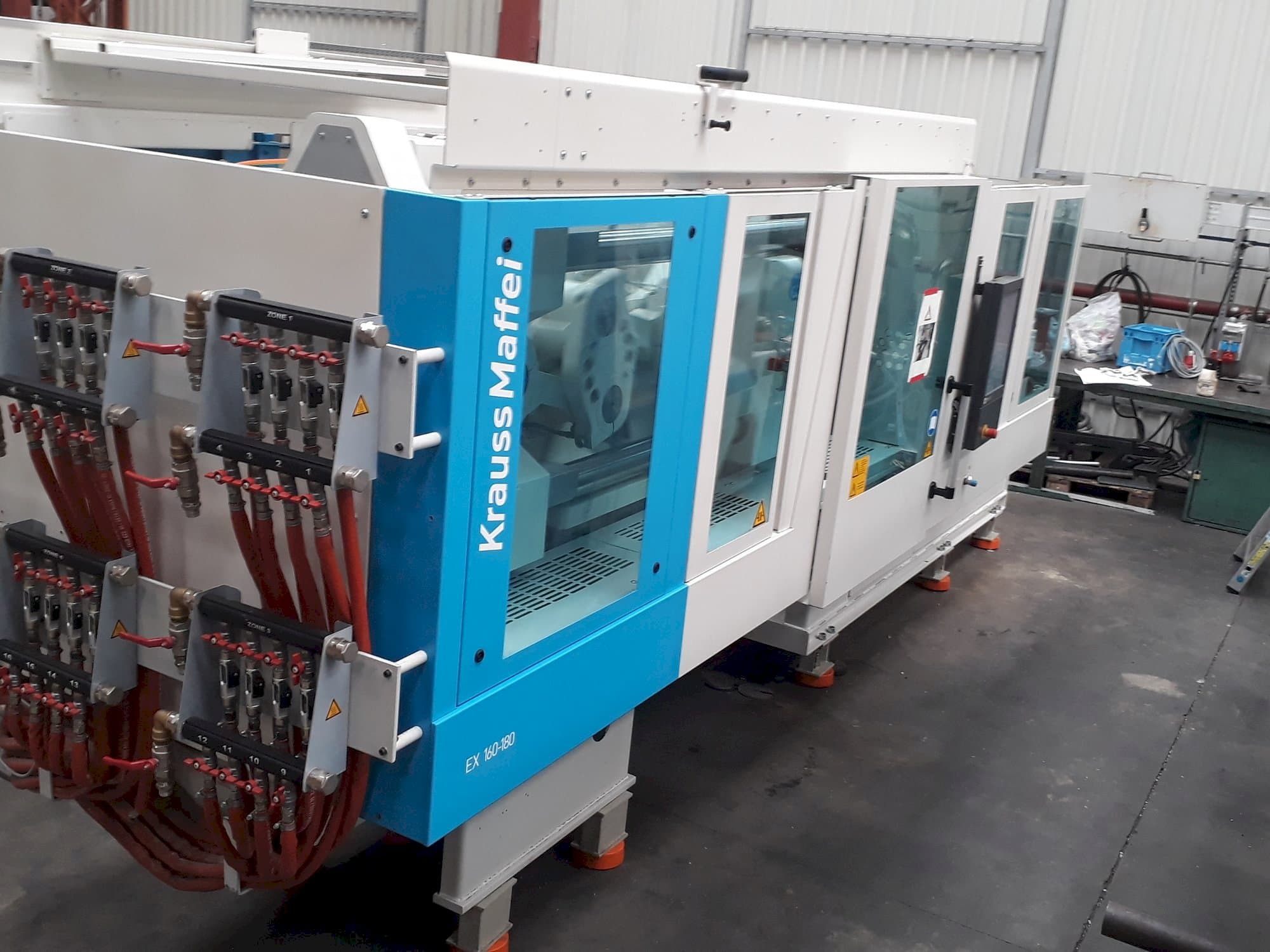

Left side view of Krauss Maffei 160-180 EX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 160-180 EX

Photo Gallery

Krauss Maffei - 160-180 EXPL-INJ-KRA-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 160-180 EX Injection Moulding Machine

Show in original language

This Krauss Maffei 160-180 EX Injection Moulding Machine was built in the year 2012 in Germany. It is equipped with a Krauss Maffei MC5 control unit. This machine can operate with a clamping force of 1600 kN, and injection pressure 2500 bar.

Overview

brand: Krauss Maffei
year: 2012
MODEL: 160-180 EX
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 160-180 EX

General Data

Measurements width: 5932 mm
Measurements depth: 1908 mm
Measurements height: 2220 mm
Machine weight: 11000 kg

Control Unit

Model: MC%
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 22 mm
Injection pressure: 2500 bar

Clamping unit

Clamping force: 1600 kN
Opening stroke: 1000 mm
Distance between bars: 630/520 mm
Mould height max: 150 mm
Ejector stroke: 150 mm
Ejector force for / back: 22 kN

Media

Main electronic connection: 400 V / 50 HZ

Additional equipment

- 1 AIR EJECTOR BWAP
- 8-FOLD WATER BWAP
- 8 TIMES WATER FWAP
- 2 INTERFACE COLOURING DEVICE
- SPECIAL CONTROL KISTLER
- EWICON CONTROL UNIT
- 3-FOLD WGZ WALL TEMP. FWAP
- 3-FOLD WGZ WALL TEMP. BWAP

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Electric ejector
- - Injection embossing circuit
- - Robot interface euromap 67
- - Flowbox + fairing
- - Failure sorting chute
- - External temperature devices

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
