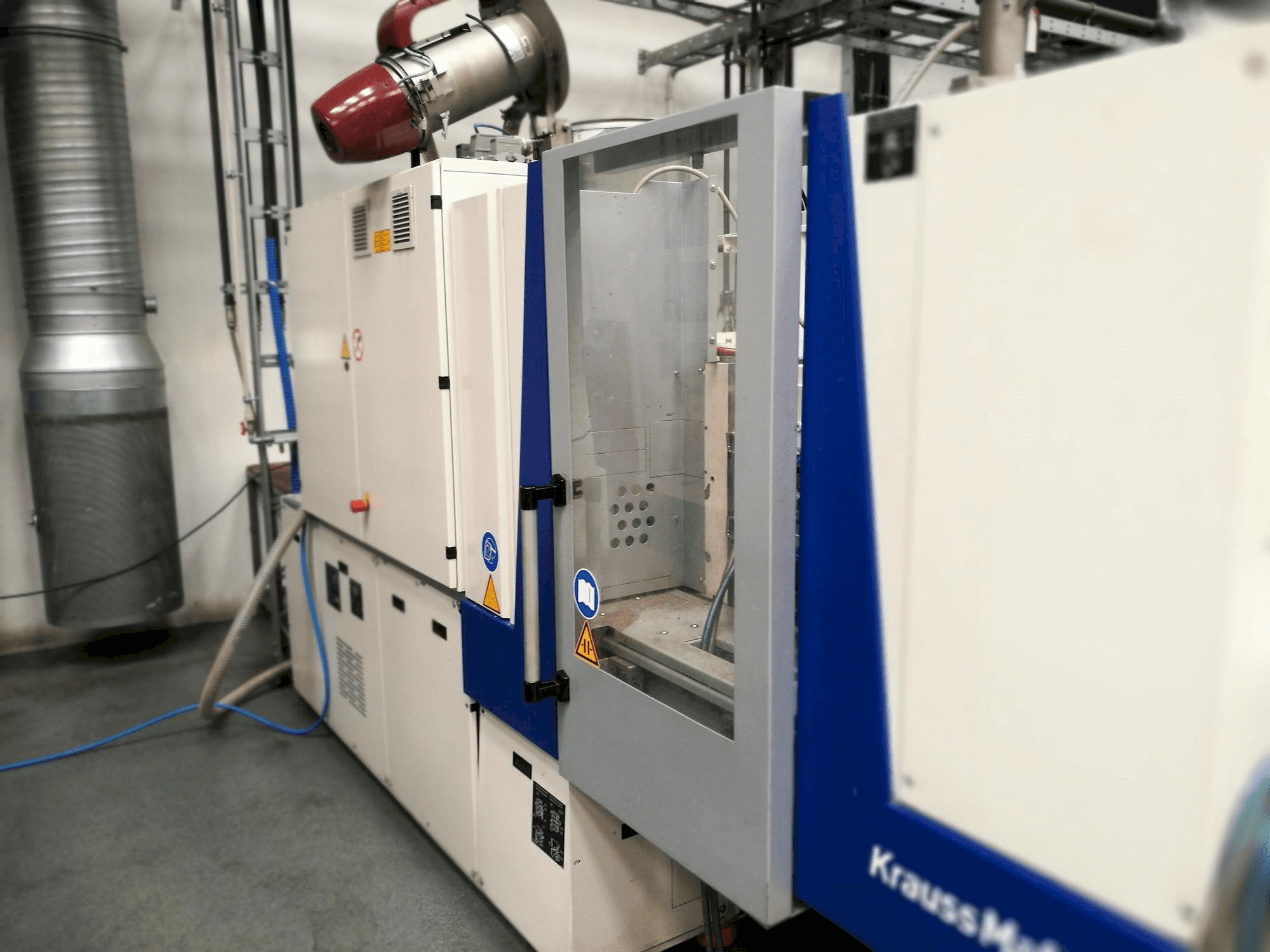

Front view of Krauss Maffei KM 35-55 CX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 35-55 CX

Photo Gallery

Krauss Maffei - 35-55 CXPL-INJ-KRA-2010-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Krauss Maffei 35-55 CX Injection Moulding Machine - Used

Show in original language

This Krauss Maffei 35-55 CX Injection Moulding Machine was built in 2010 in Germany. It has been working for approximately 56331 hours since then. It is equipped with a Krauss Maffei MC5 control unit. This machine can perform with a clamping force of 350 kN, and an injection pressure of 2500 bar.

Overview

brand: Krauss Maffei
year: 2010
MODEL: 35-55 CX
production hours: 56331
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 35-55 CX

General Data

Measurements width: 3500 mm
Measurements depth: 1500 mm
Measurements height: 2000 mm
Machine weight: 3000 kg

Control Unit

Model: MC5
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 20 mm
Stroke volume: 25 CM³
Injection pressure: 2500 bar

Clamping unit

Clamping force: 350 kN
Opening stroke: 525 mm
Ejector stroke: 100 mm

Media

Main electronic connection: 400V / 50Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
