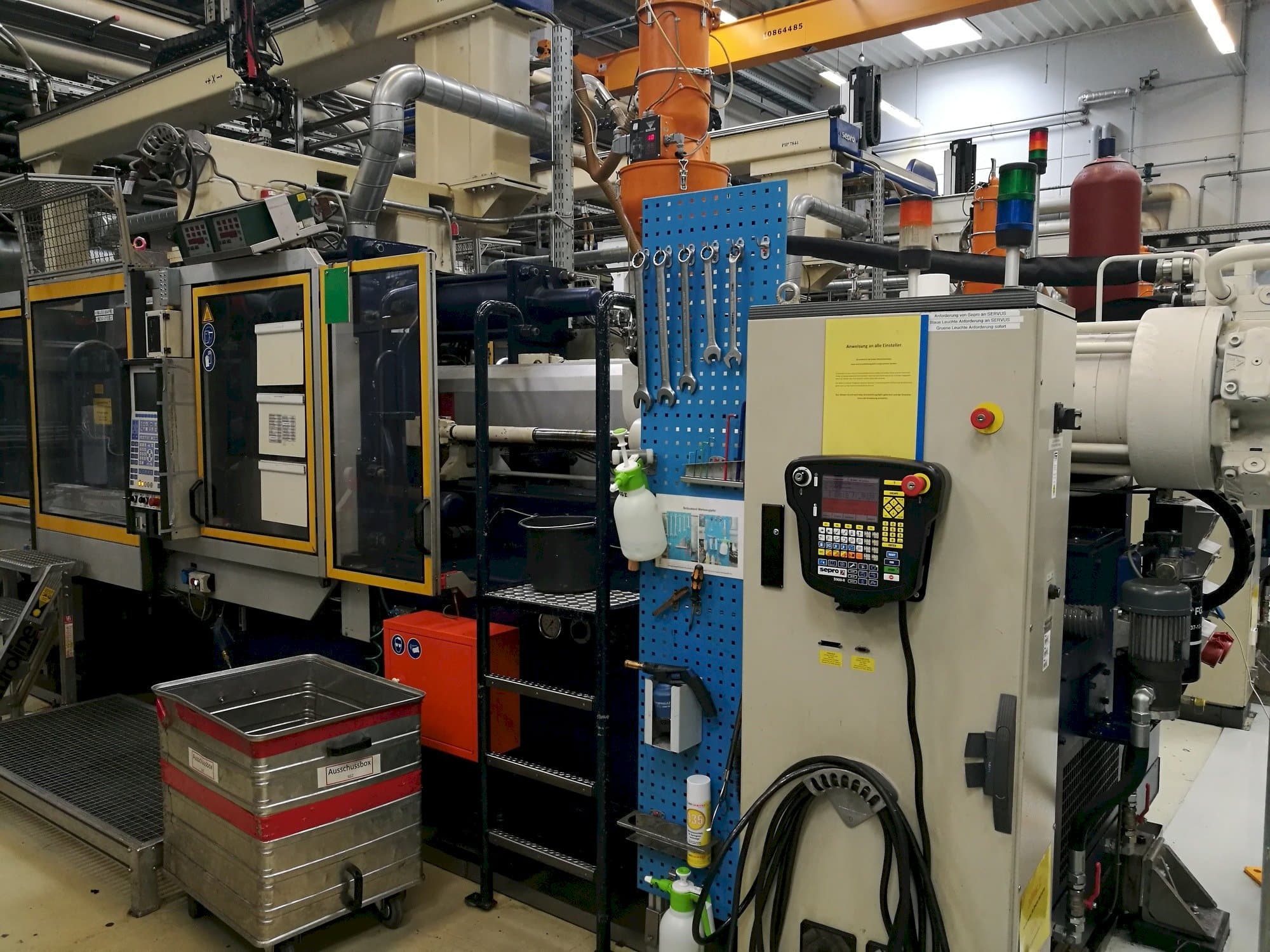

Front view of Krauss Maffei 350-2700 C2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 350-2700 C2

Photo Gallery

Krauss Maffei - 350-2700 C2DE-INJ-KRA-2000-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 350-2700 C2 Injection Moulding Machine

Show in original language

This Krauss Maffei 350-2700 C2 Injection Moulding Machine was manufactured in the year 2000 in Germany. It has been working for 67693 hours. It is operated with a Krauss Maffei MC 4 control unit. This machine incorporates a clamping force of 3500 kN and an injection pressure of 2389 bar. It includes a 3x2 core trains on stable side, a 4 times cascade control, and an air ejector with kistler 5039AY33.

Overview

brand: Krauss Maffei
year: 2000
MODEL: 350-2700 C2
production hours: 67693
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 350-2700 C2

General Data

Measurements width: 5567 mm
Measurements depth: 2000 mm
Measurements height: 2504 mm

Control Unit

Model: MC 4
CNC main language: German
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 70 mm
Stroke volume: 1097 CM³
Injection pressure: 2389 bar
Adjustable heating zones: 6

Clamping unit

Clamping force: 3500 kN
Opening stroke: 1300 mm
Distance between bars: 710 mm
Mould height min: 380 mm
Mould height max: 1300 mm
Size of mold platens: 1060x1095 mm

Media

Main electronic connection: 400 V
Power consumption: 223 A

Additional Information

Machine history

End product: Air control and filter systems
Industries: Automotive

Machine Benefits

Qualitative Machine Benefits:
- - Perfect condition and maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
