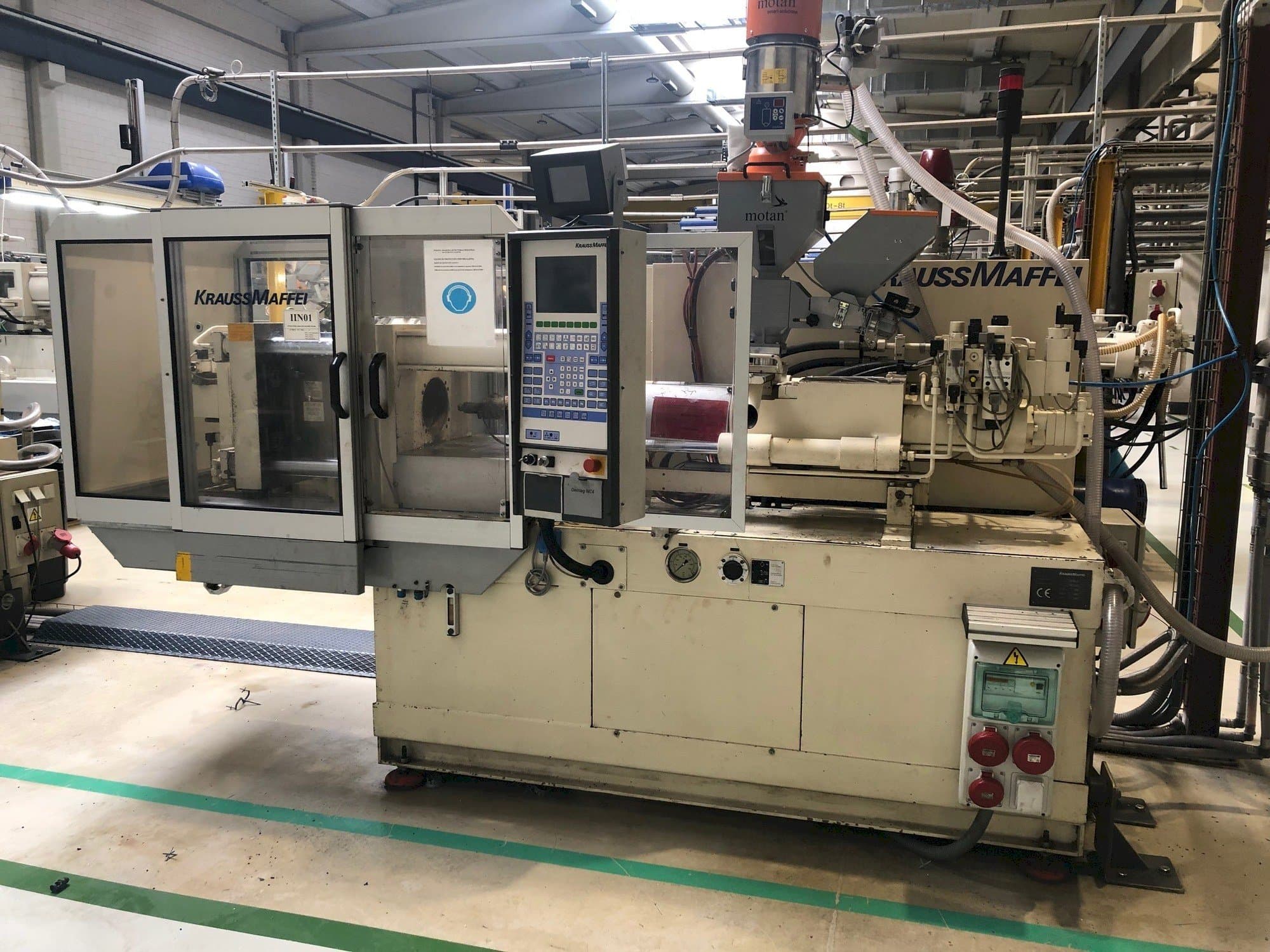

Front view of Krauss Maffei 50-190 C1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 50-190 C1

Photo Gallery

Krauss Maffei - 50-190 C1ES-INJ-KRA-1995-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 50-190 C1 Injection Moulding Machine

Show in original language

This Krauss Maffei 50-190 C1 Injection Moulding Machine was produced in 1995 in Germany and has been working for 89500 hours. Operated through a Krauss Maffei Micro control MC 3F, this machine incorporates a clamping force of 500 kN. It presents excellent conditions, as it has been regularly serviced and given maintenance by Krauss Maffei.

Overview

brand: Krauss Maffei
year: 1995
MODEL: 50-190 C1
production hours: 89500
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 50-190 C1

General Data

Measurements width: 3191 mm
Measurements depth: 1163 mm
Measurements height: 1787 mm
Machine weight: 2300 kg

Control Unit

Model: MC 3F
CNC main language: Spanish
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 30 mm
Shot weight: 66 g/PS
Injection pressure: 2222 bar

Clamping unit

Clamping force: 500 kN
Opening stroke: 350 mm
Distance between bars: 321 x 321 mm
Mould height min: 200 mm
Mould height max: 550 mm
Size of mold platens: 540 x 540 mm
Ejector stroke: 100 mm
Ejector force for / back: 22 kN

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Krauss maffei maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
