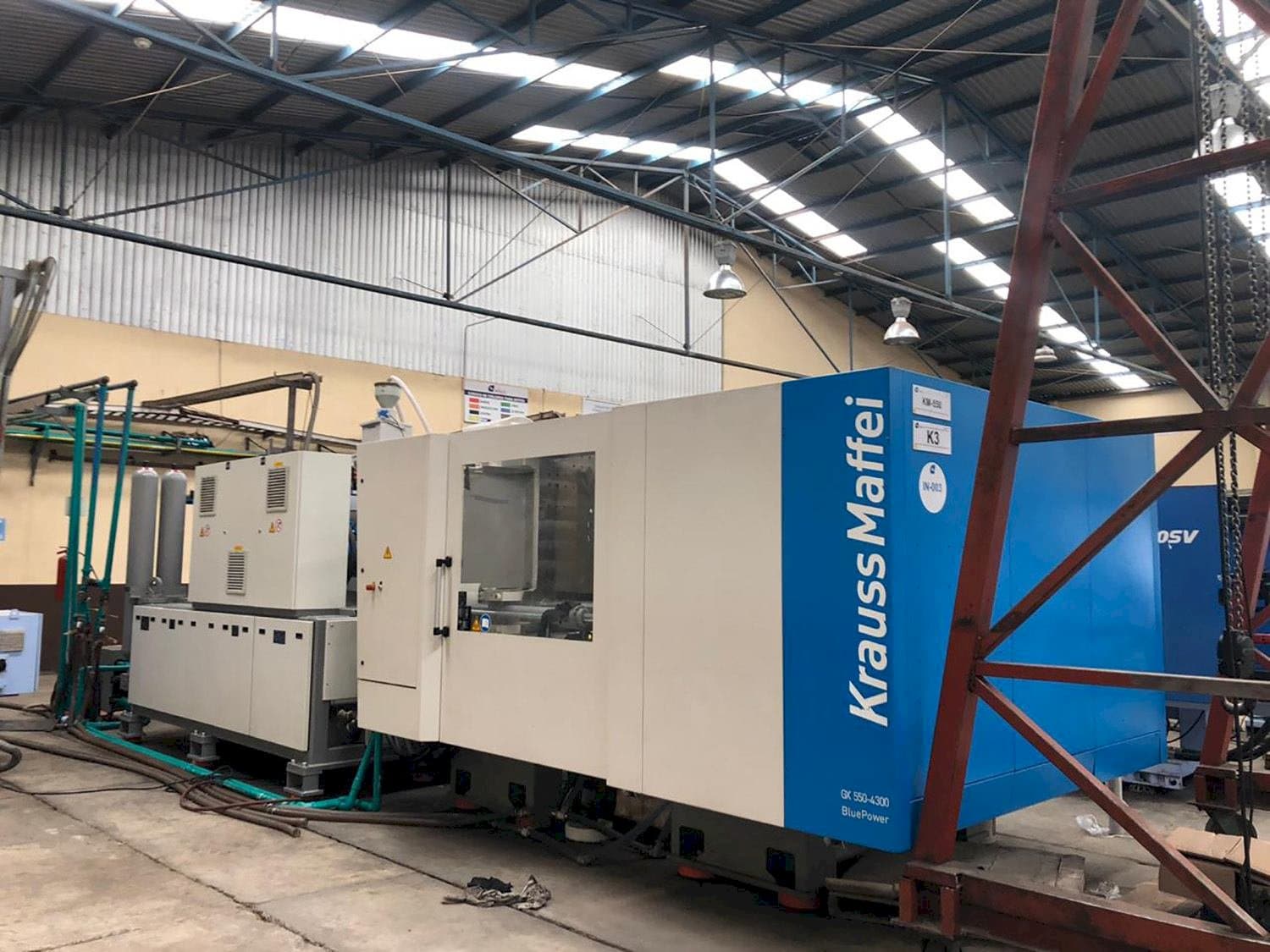

Krauss Maffei 550-4300 GX Injection Moulding Machine

Show in original language

This Krauss Maffei 550-4300 GX Injection Moulding Machine was made in the year 2013 in Germany. It is equipped with a Krauss Maffei MC6 control unit. It has been working for 32070 hours, from which only 31105 have been production hours. This machine incorporates a clamping force of 5500 kN, and an injection pressure of 1839 bar.

Overview

brand: Krauss Maffei
year: 2013
MODEL: 550-4300 GX
production hours: 31105
application type: Injection Moulding
Location: Mexico
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 550-4300 GX

General Data

Measurements width: 8080 mm
Measurements depth: 2800 mm
Measurements height: 2390 mm
Machine weight: 27500 kg

Control Unit

Model: MC6
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 90 mm
Injection pressure: 1839 bar
Nozzle pressure: 129 kN

Clamping unit

Clamping force: 5000 - 5500 kN
Opening stroke: 1350 mm
Mould height min: 400 mm
Mould height max: 950 mm
Size of mold platens: 1430 x 1350 mm
Ejector stroke: 250 mm
Ejector force for / back: 95/49 kN

Media

Main electronic connection: 440 V 60 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
