Krauss Maffei 575-1900-520-C2 Injection Moulding Machine

Show in original language

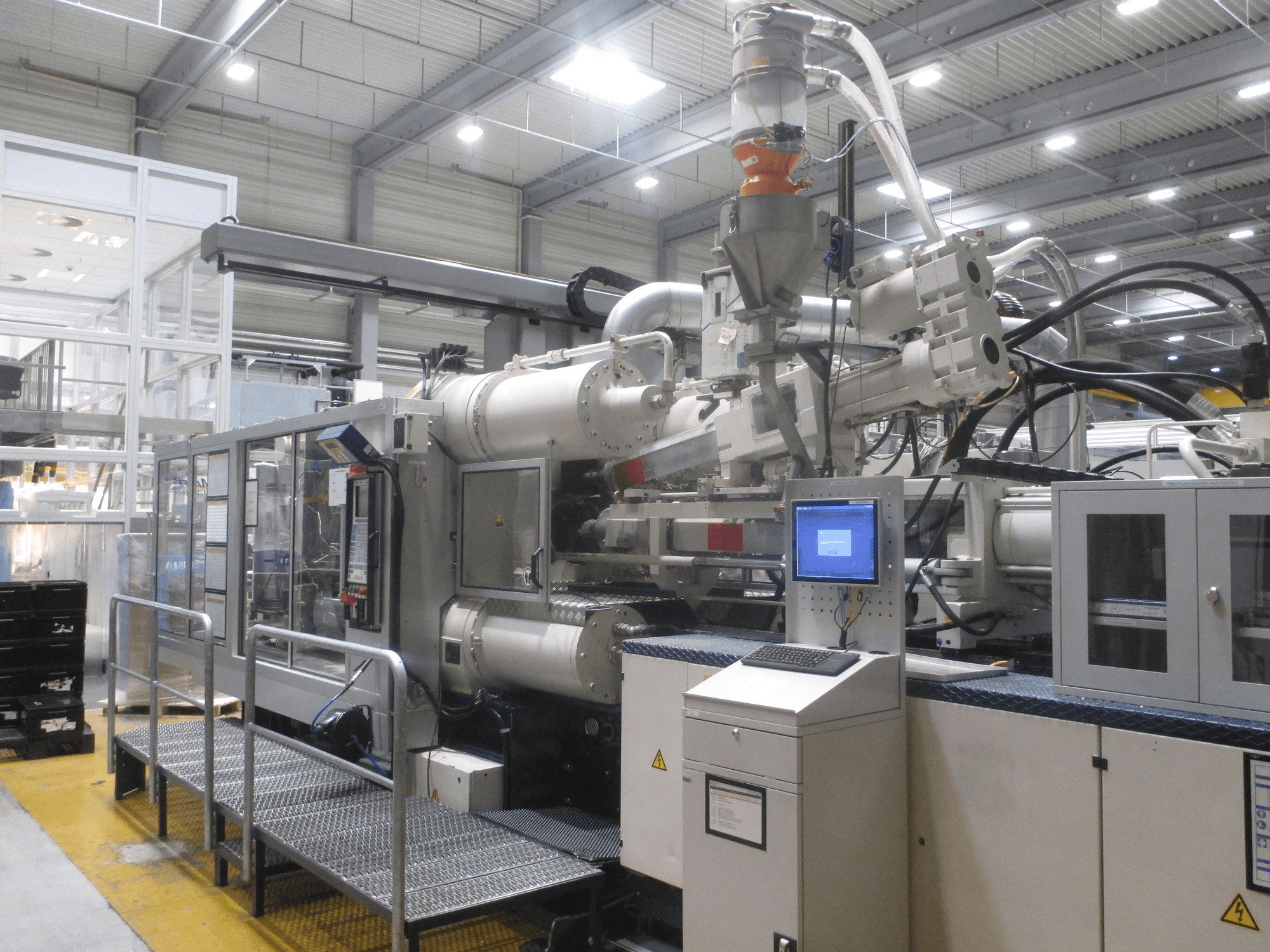

This Krauss Maffei 575-1900-520-C2 Injection Moulding Machine was manufactured in the year 2001 in Germany. It has 81400 of production hours. This machine can operate with a clamping force of 5750 kN, a screw diameter of 60/40 mm, and an opening stroke of 1150 mm. It presents very good conditions.

Overview

brand: Krauss Maffei
year: 2001
MODEL: 575-1900-520-C2
production hours: 81400
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 575-1900-520-C2

Movement

X-AXIS Movement: 860 mm
Y-AXIS Movement: 1580 mm
Z-AXIS Movement: 4350 mm

Injection Unit

Screw diameter: 60/40 mm

Clamping unit

Clamping force: 5750 kN
Opening stroke: 1150 mm
Distance between bars: 1000 x 930 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Handling vittmann 3 axes
- - Tool installation: 600 min - 1150 mx
- - Variable displacement pumps
- - Core pulling: 4
- - No tiebarless
- - Machine height with robot: 5500 mm
- - Weight of robot: 740 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
