Kraus Maffei 65-220 C1 Injection moulding machine

Show in original language

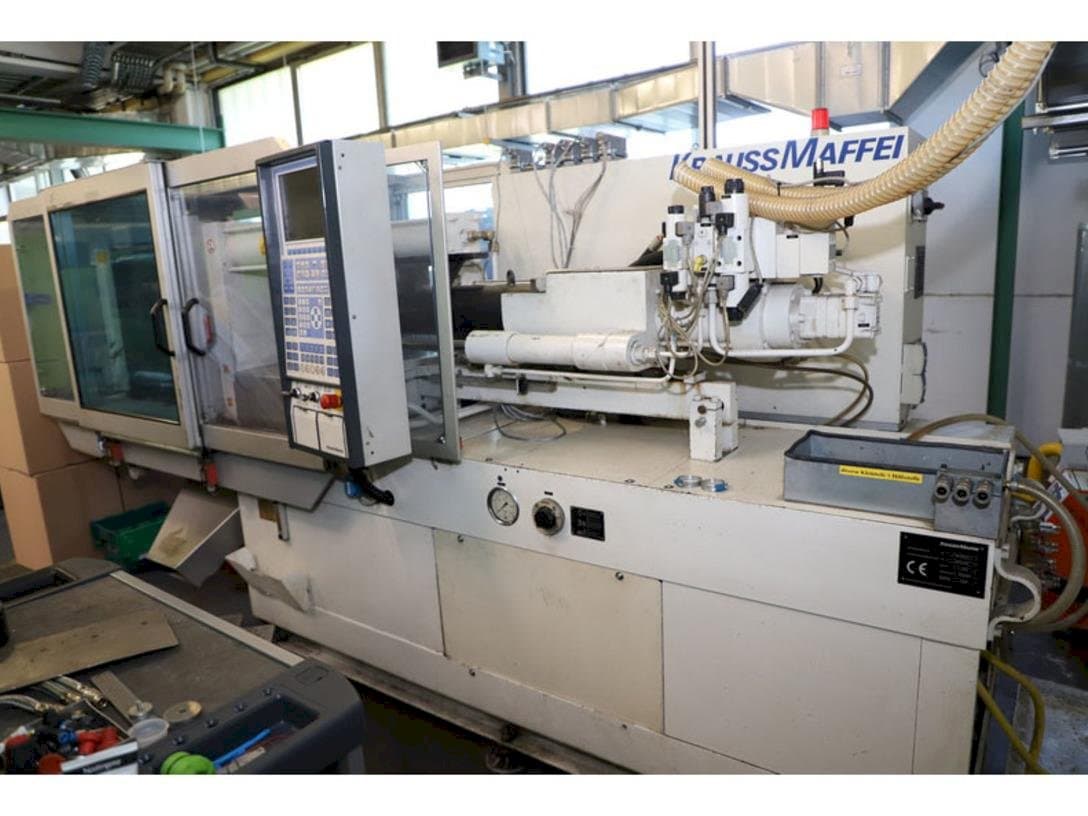

This Kraus Maffei 65-220 C1 Injection moulding machine was manufactured in the year 2004 and has 74458 production hours. It is equipped with a Krauss Maffei control unit. The machine has a clamping force of 650 kN and screw diameter of 15 mm.

Overview

brand: Krauss Maffei
year: 2004
MODEL: 65-220 C1
production hours: 74458
application type: Injection Moulding
Location: Austria
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 65-220 C1

General Data

Machine weight: 2960 kg

Control Unit

Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 15 mm
Stroke volume: 21.4 CM³
Injection pressure: 2600 bar

Clamping unit

Clamping force: 650 kN
Distance between bars: 405 x 405 mm
Mould height min: 250 mm
Mould height max: 750 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Core pull: 1x hydraulic, 1x pneumatic ready for use: yes
- - Clamping area: 400x610 mm
- - Clear tie bar width: 405x405 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
