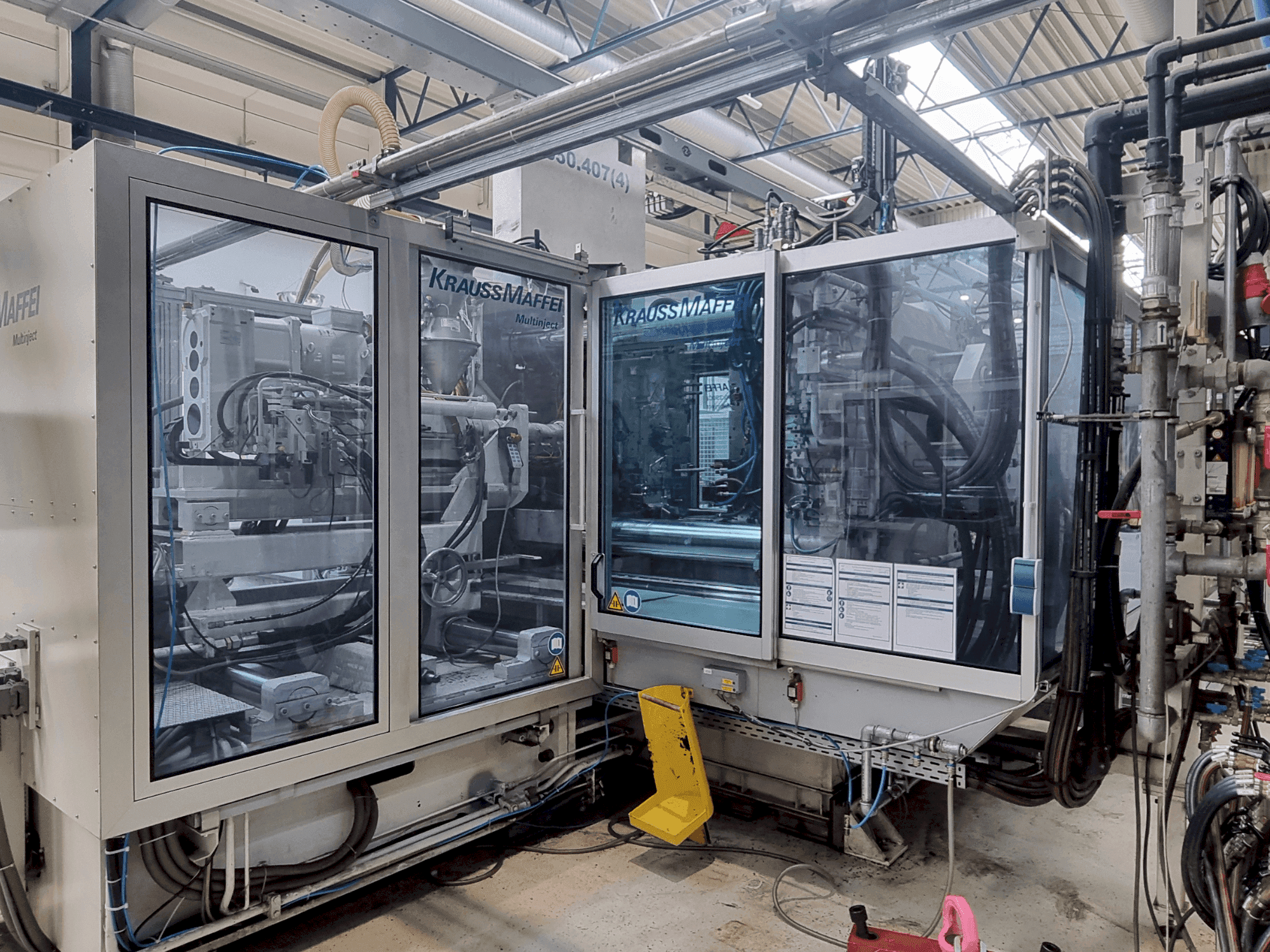

Front view of Krauss Maffei 650-2700-390 CL machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 650-2700-390 CL

Photo Gallery

Krauss Maffei - 650-2700-390 CLDE-INJ-KRA-2005-00006

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Krauss Maffei 650-2700-390 CL | Plastic Processor

Show in original language

This plastic processing machine was manufactured in 2005 by Krauss Maffei. It features a clamping force of 6500 KN and a robust screw diameter of 80 mm for Injection Unit 1, ensuring efficient production capabilities. The machine also boasts a significant mould weight capacity up to 11400 kg and an opening stroke of 1300 mm. Ideal for those looking to enhance their production with a reliable machine. For more information about this plastic processing machine, please reach out to us.

Overview

brand: Krauss Maffei
year: 2005
MODEL: 650-2700-390 CL
production hours: 0
application type: Injection Moulding
Location: Germany
machine type: Plastic Processing Machine

Technical Information - Krauss Maffei 650-2700-390 CL

General Data

Machine weight: 33370 kg

Control Unit

Model: 2K

Injection Unit

Screw diameter: 80 mm / 35 mm
Stroke volume: 1433 cm³ / 155 cm³
Injection pressure: 250 bar / 740 bar
Plasticizing rate max.: 108 g/s / 22 g/s

Clamping unit

Clamping force: 6500 KN
Opening stroke: 1300 mm
Max open daylight: 1842 mm
Distance between bars: Horizontal: 1000 mm, Vertical: 930 mm
Mould height min: 542 mm

Media

Oil tank: 1240 liters

Additional Information

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
