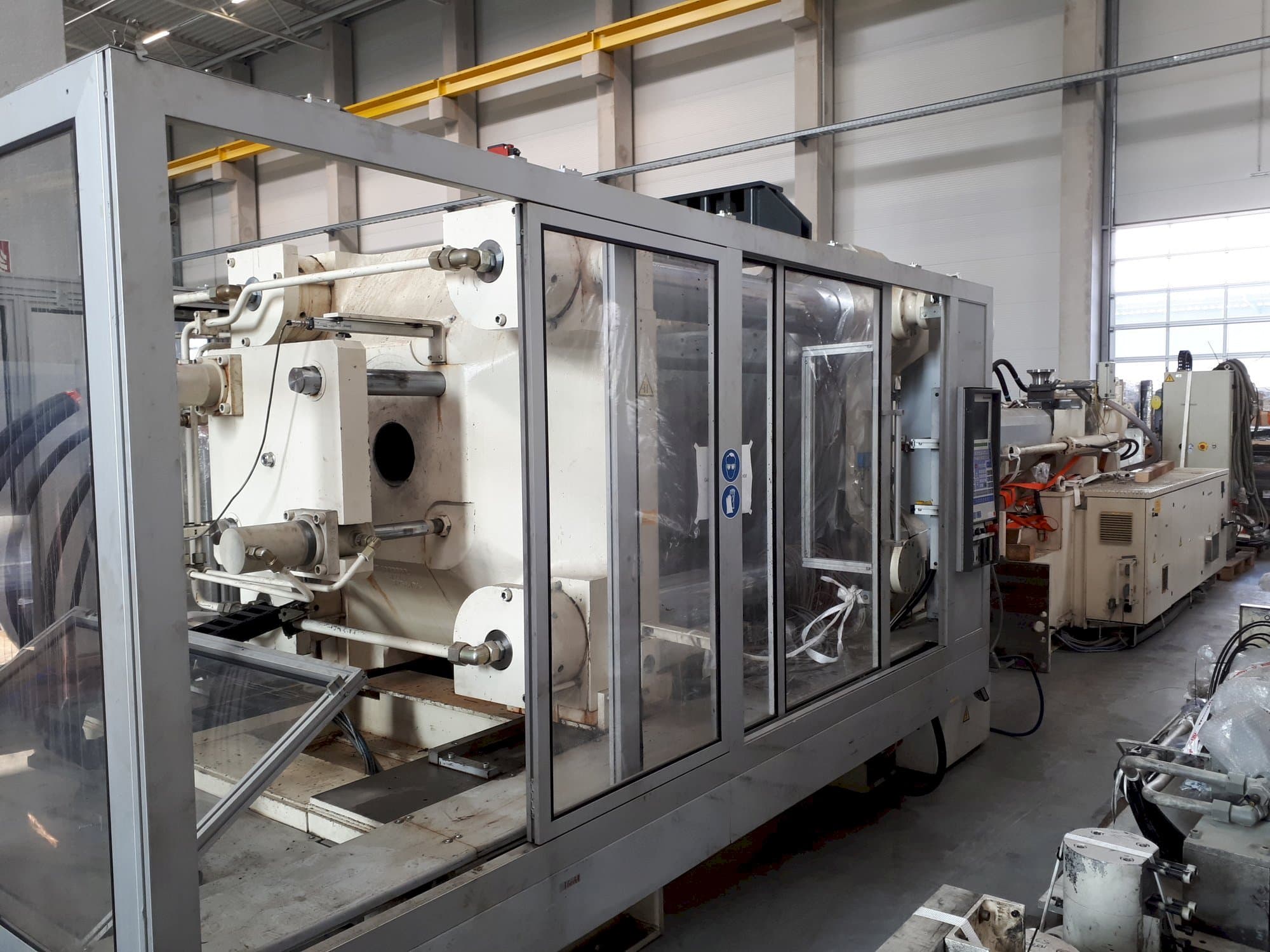

Front view of Krauss Maffei 650-2700 C1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 650-2700 C1

Photo Gallery

Krauss Maffei - 650-2700 C1DE-INJ-KRA-1999-00004

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 650-2700 C1 Injection Moulding Machine

Show in original language

This Krauss Maffei 650-2700 C1 Injection Moulding Machine was built in 1999 in Germany and has been operative for 59370 hours. Equipped with a Krauss Maffei MC3-F Control unit, this machine can operate with a clamping force of 6500 kN and an injection pressure of 1829 bar. Must be noted that this machine has been bought out of production and is currently stored externally.

Overview

brand: Krauss Maffei
year: 1999
MODEL: 650-2700 C1
production hours: 59370
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 650-2700 C1

General Data

Measurements width: 8655 mm
Measurements depth: 2700 mm
Measurements height: 2500 mm
Machine weight: 34500 kg

Control Unit

Model: MC3-F
Brand: KRAUSS MAFFEI

Injection Unit

Shot weight: 1304 g
Stroke volume: 1433 CM³
Injection pressure: 1829 bar

Clamping unit

Clamping force: 6500 kN
Opening stroke: 600 mm
Max open daylight: 1750 mm
Distance between bars: 1000/930 mm
Ejector stroke: 250 mm
Ejector force for / back: 226 kN

Media

Main electronic connection: 400 V / 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Nozzle shut-off
- - Hydraulic ejector
- - Robot interface euromap12
- - 4 pieces of core pulls on movable plate
- - 1 piece of core pulls on fixed plate
- - 4 pieces of control stations for mould heating

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
