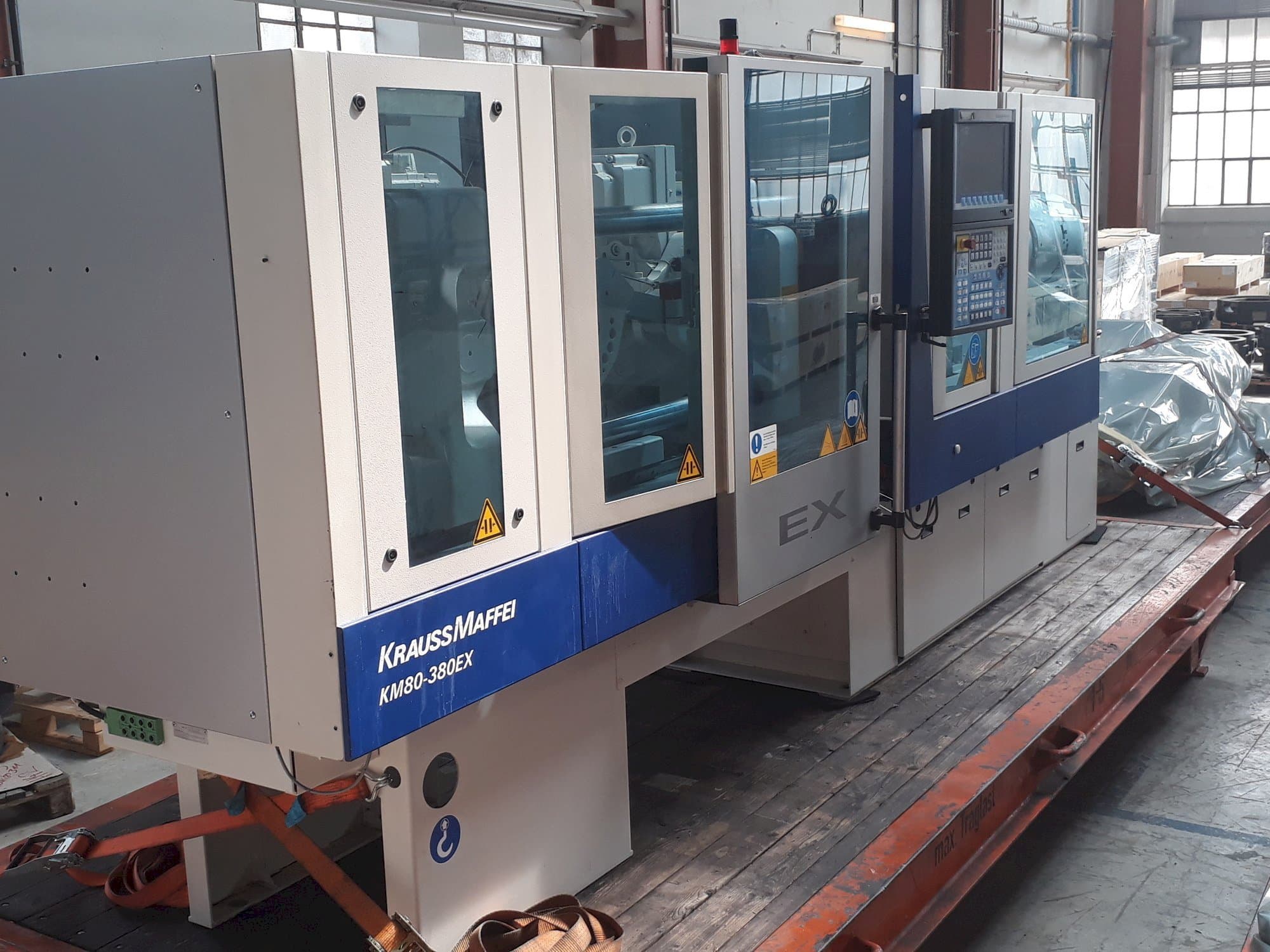

Front view of Krauss Maffei 80-380 EX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 80-380 EX

Photo Gallery

Krauss Maffei - 80-380 EXDE-INJ-KRA-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Pre-Owned Krauss Maffei 80-380 EX Injection Moulding Machine

Show in original language

This Krauss Maffei 80-380 EX Injection Moulding Machine was built in 2007 in Germany and has been operative for 45000 hours. Equipped with a Krauss Maffei MC5 Control unit, this machine incorporates a clamping force of 800 kN.

Overview

brand: Krauss Maffei
year: 2007
MODEL: 80-380 EX
production hours: 45000
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 80-380 EX

General Data

Measurements width: 5626 mm
Measurements depth: 1505 mm
Measurements height: 2065 mm
Machine weight: 6400 kg

Control Unit

Model: MC5
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 40 mm
Shot weight: 185.6 g
Stroke volume: 204 CM³
Injection pressure: 1860 bar

Clamping unit

Clamping force: 800 kN
Opening stroke: 430 mm
Distance between bars: 420 mm
Ejector stroke: 100 mm
Ejector force for / back: 44 kN

Media

Main electronic connection: 400 V / 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 1 air ejector bwap
- - Robot interface euromap 67
- - 12 control stations for mould heating

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
