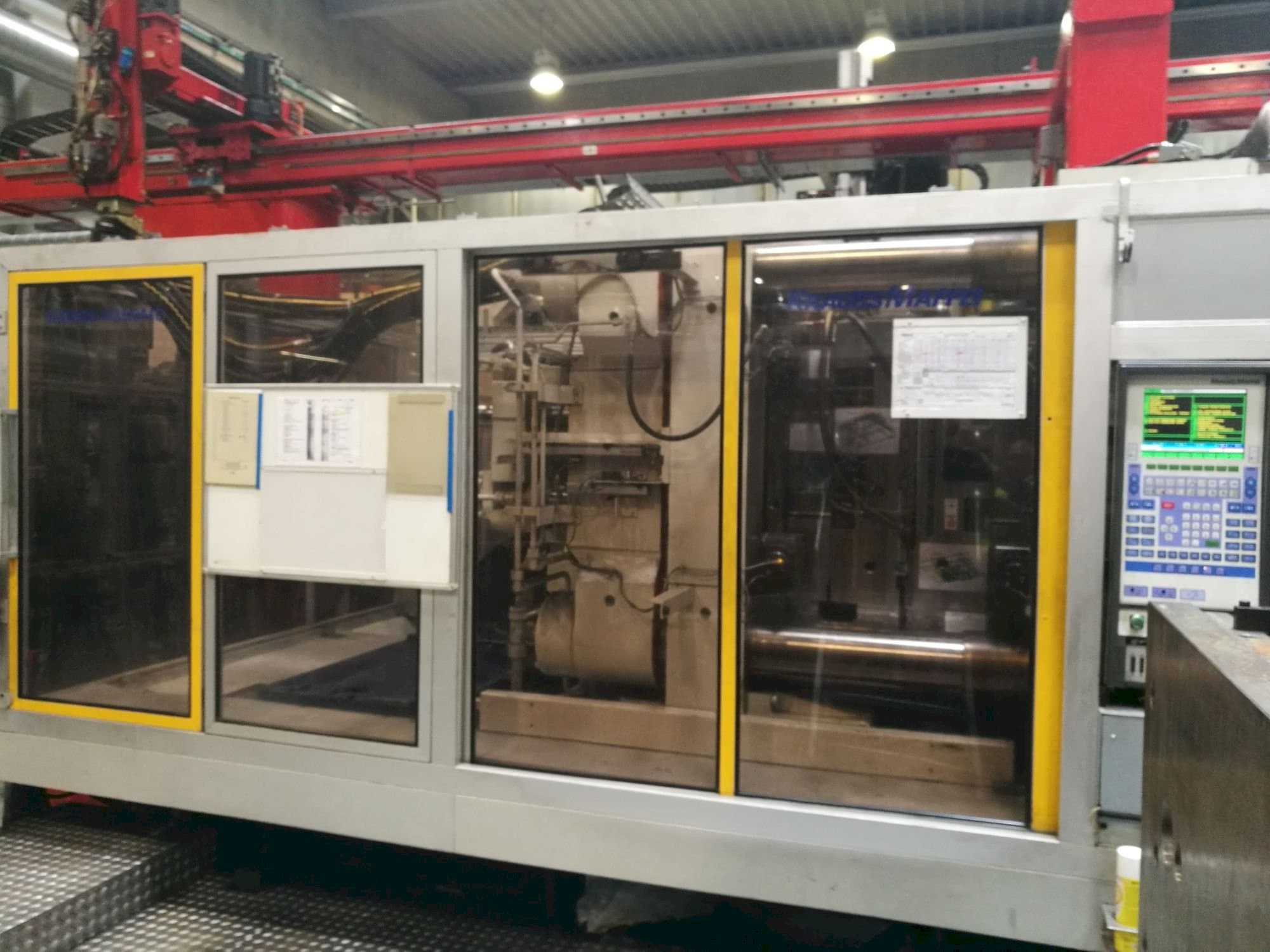

Front view of Krauss Maffei 800-4350 MC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 800-4350 MC

Photo Gallery

Krauss Maffei - 800-4350 MCDE-INJ-KRA-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 800-4350 MC Injection Moulding Machine

Show in original language

This Krauss Maffei 800-4350 MC Injection Moulding Machine was manufactured in 1998 in Germany and has been working for 87290 hours. Equipped with a Krauss Maffei MC 3 Control unit, this machine can work with a clamping force of 8000 kN.

Overview

brand: Krauss Maffei
year: 1998
MODEL: 800-4350 MC
production hours: 87290
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 800-4350 MC

General Data

Machine weight: 43000 kg

Control Unit

Brand: KRAUSS MAFFEI
Model: MC 3
CNC language customizable: Yes

Injection Unit

Screw diameter: 95 mm
Stroke volume: 2729 CM³
Injection pressure: 1596 bar
Adjustable heating zones: 12

Clamping unit

Clamping force: 8000 kN
Opening stroke: 2000 mm
Distance between bars: 1120 mm
Mould height min: 600 mm
Mould height max: 2000 mm
Size of mold platens: 1050x1300 mm

Media

Main electronic connection: 400 V
Power consumption: 320 A
Internal cooling: Yes

Additional Information

Machine history

Material type: Plastic
End product: Air control systems
Industries: Automotive

Machine Benefits

Technical Machine Benefits:
- - Cascade control and nozzle closure
- - Automatic ejector
Qualitative Machine Benefits:
- - Top condition and maintanace

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
