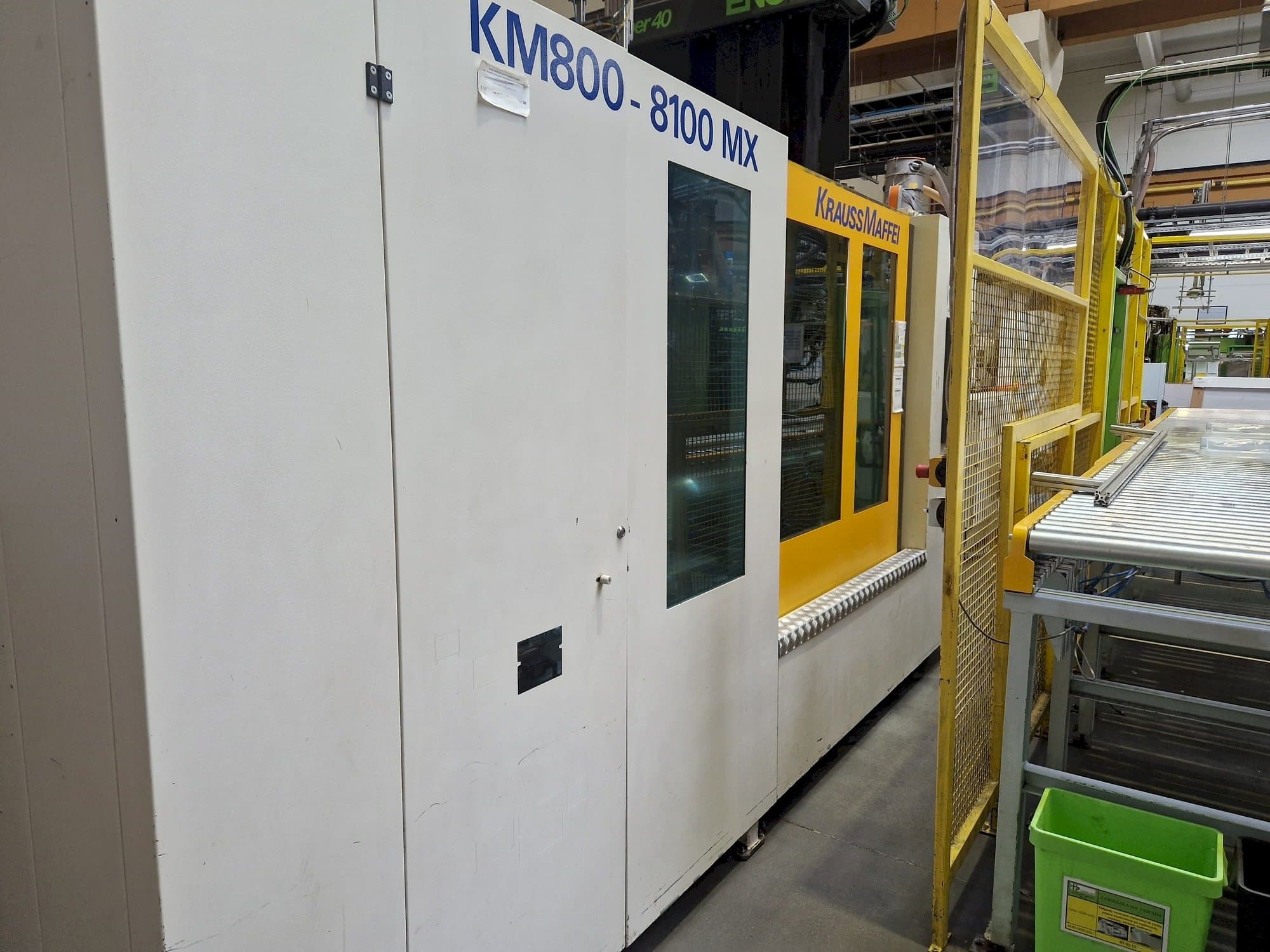

Left side view of Krauss Maffei 800-8100 MX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 800-8100 MX

Photo Gallery

Krauss Maffei - 800-8100 MXPL-INJ-KRA-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 800-8100 MX Injection moulding machine

Show in original language

This Krauss Maffei 800-8100 MX Injection moulding machine was manufactured in the year 2008 in Poland and has 93845 production hours. It is equipped with a Krauss Maffei MC5 control unit. The machine has a clamping force of 8000 kN and a screw diameter of 105 mm.

Overview

brand: Krauss Maffei
year: 2008
MODEL: 800-8100 MX
production hours: 93845
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 800-8100 MX

General Data

Measurements width: 10810 mm
Measurements depth: 2920 mm
Measurements height: 2510 mm
Machine weight: 45000 kg

Control Unit

Model: MC5
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 105 mm
Injection pressure: 4546 BAR

Clamping unit

Clamping force: 8000 kN
Opening stroke: 1600 mm
Distance between bars: 1120 / 1000 mm
Mould height min: 500 mm
Mould height max: 1100 mm
Ejector stroke: 0 – 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Diameter of center ring injection side: 250 mm, diameter of center ring ejection side: 250 mm
- - Clearance between the tables (mm) 2100 mm
- - Hydro ejector: yes, halfway: yes, clamping: yes, mold open: yes
- - Quantity core pulling: 2 pcs, table whole tread: m24
- - Quantity of hydraulic oil: 1500 liters, heating power: 59 kw
- - Motor: 110 / 117 kw
- - Safeguard the door: pneumatic, valve terminal: 8 nozzles
- - Air valves: 8 valves
Qualitative Machine Benefits:
- - The machine is in very good condition, full documentation and service history available, ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
