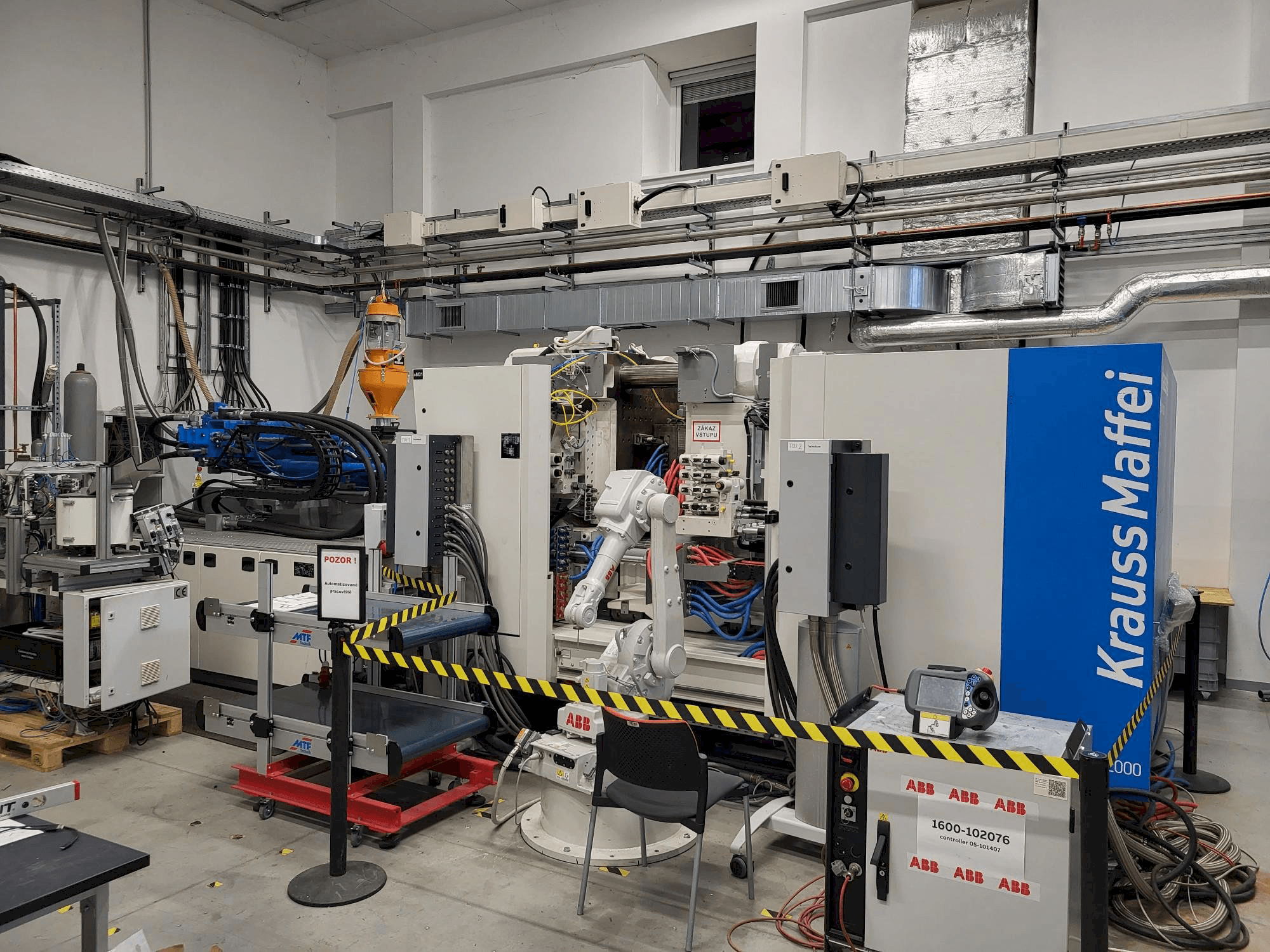

Front view of Krauss Maffei GX 451-2000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei GX 451-2000

Photo Gallery

Krauss Maffei - GX 451-2000CZ-INJ-KRA-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei GX 451-2000 injection moulding machine

Show in original language

This Krauss Maffei GX 451-2000 injection moulding machine was manufactured in Germany in the year 2017 and has just 660 hours. It is equipped with a Krauss Maffei MC6 control unit. The machine has a clamping force of 4500 kN and screw diameter of 70 mm. Machine is like new.

Overview

brand: Krauss Maffei
year: 2017
MODEL: GX 451-2000
production hours: 660
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei GX 451-2000

General Data

Measurements width: 7650 mm
Measurements depth: 2800 mm
Measurements height: 2390 mm
Machine weight: 23000 kg

Control Unit

Model: MC6
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 70 mm
Shot weight: 981 g/PS
Stroke volume: 1078 CM³
Injection pressure: 1877 bar
Heating capacity: 29.2
Adjustable heating zones: 6

Clamping unit

Clamping force: 4500 kn
Opening stroke: 1250 mm
Distance between bars: 1055 x 925 mm
Mould height min: 400 mm
Mould height max: 900 mm
Size of mold platens: 1430 x 1350 mm
Ejector stroke: 250 mm
Ejector force for / back: 95/49 kn

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine is like new!

Technical Machine Benefits

Robot interface as per euromap 18, euromap 67
6 zones hot runner controller
6-fold water battery
Pump input power 75 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
