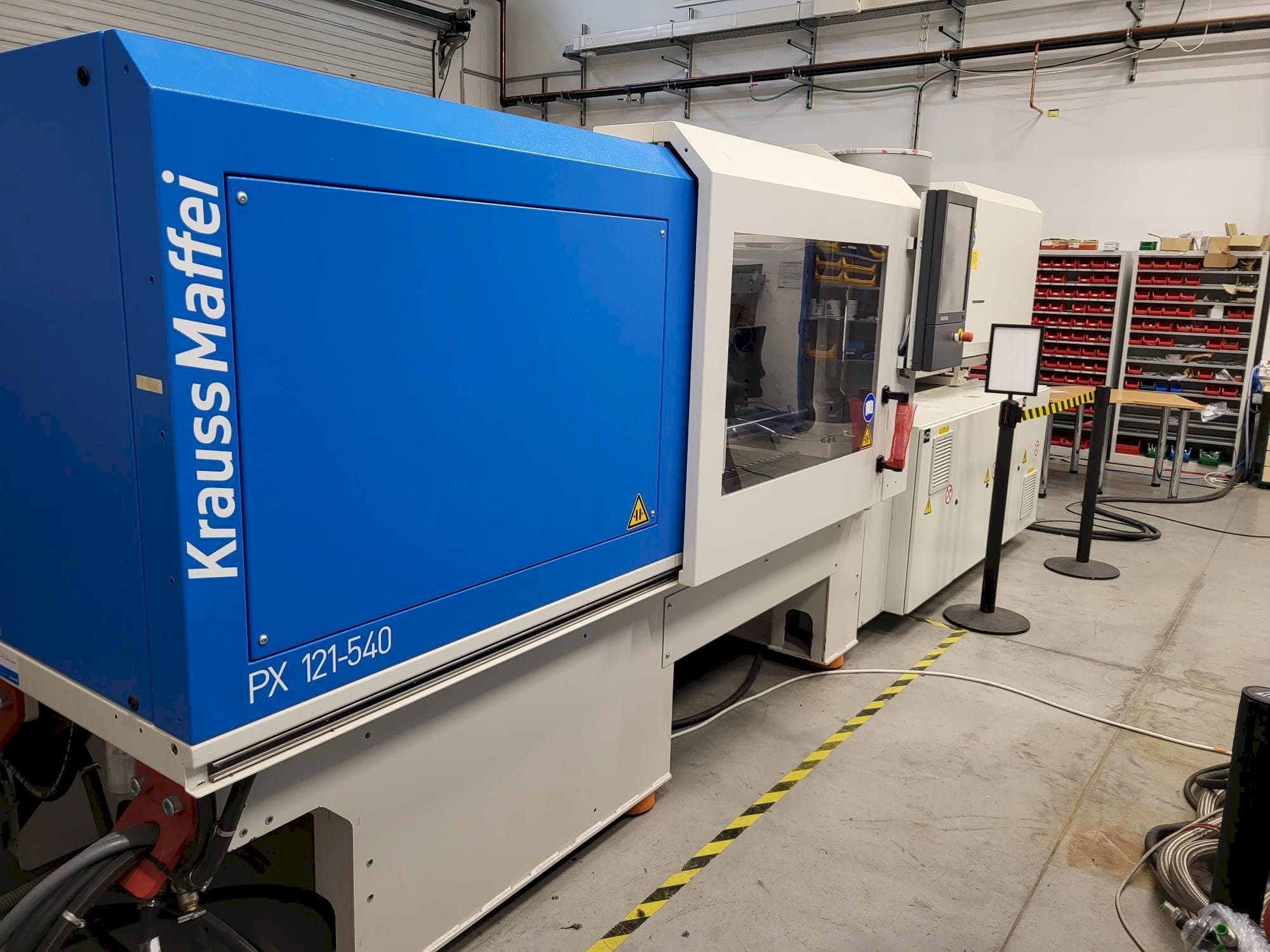

Left side view of Krauss Maffei PX 121-540 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei PX 121-540

Photo Gallery

Krauss Maffei - PX 121-540CZ-INJ-KRA-2017-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei PX 121-540 injection moulding machine

Show in original language

This Krauss Maffei PX 121-540 injection moulding machine was made in the year 2017. It is equipped with a Krauss Maffei MC6 control unit. The machine has a clamping force of 1200 kN and screw diameter of 40 mm.

Overview

brand: Krauss Maffei
year: 2017
MODEL: PX 121-540
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei PX 121-540

General Data

Measurements width: 5600 mm
Measurements depth: 1720 mm
Measurements height: 1950 mm
Machine weight: 8100 kg

Control Unit

Model: MC6
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 40 mm
Shot weight: 206 g/ps
Stroke volume: 226 CM³
Injection pressure: 2377 bar
Plasticizing rate max.: 24 g/s ps
Screw speed: 297 1/min
Heating capacity: 12,9 kw

Clamping unit

Clamping force: 1200 kn
Distance between bars: 530 x 480 mm
Mould height min: 180 mm
Mould height max: 450 mm
Size of mold platens: 710 x 660 mm
Ejector stroke: 175 mm
Ejector force for / back: 22/10 kn

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Robot interface as per euromap 18, euromap 67
- - 5 adjustable barrel heating zones
- - 2 core pullers
- - 4-fold waterbattery
Qualitative Machine Benefits:
- - Very good condition
- - Showroom machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
