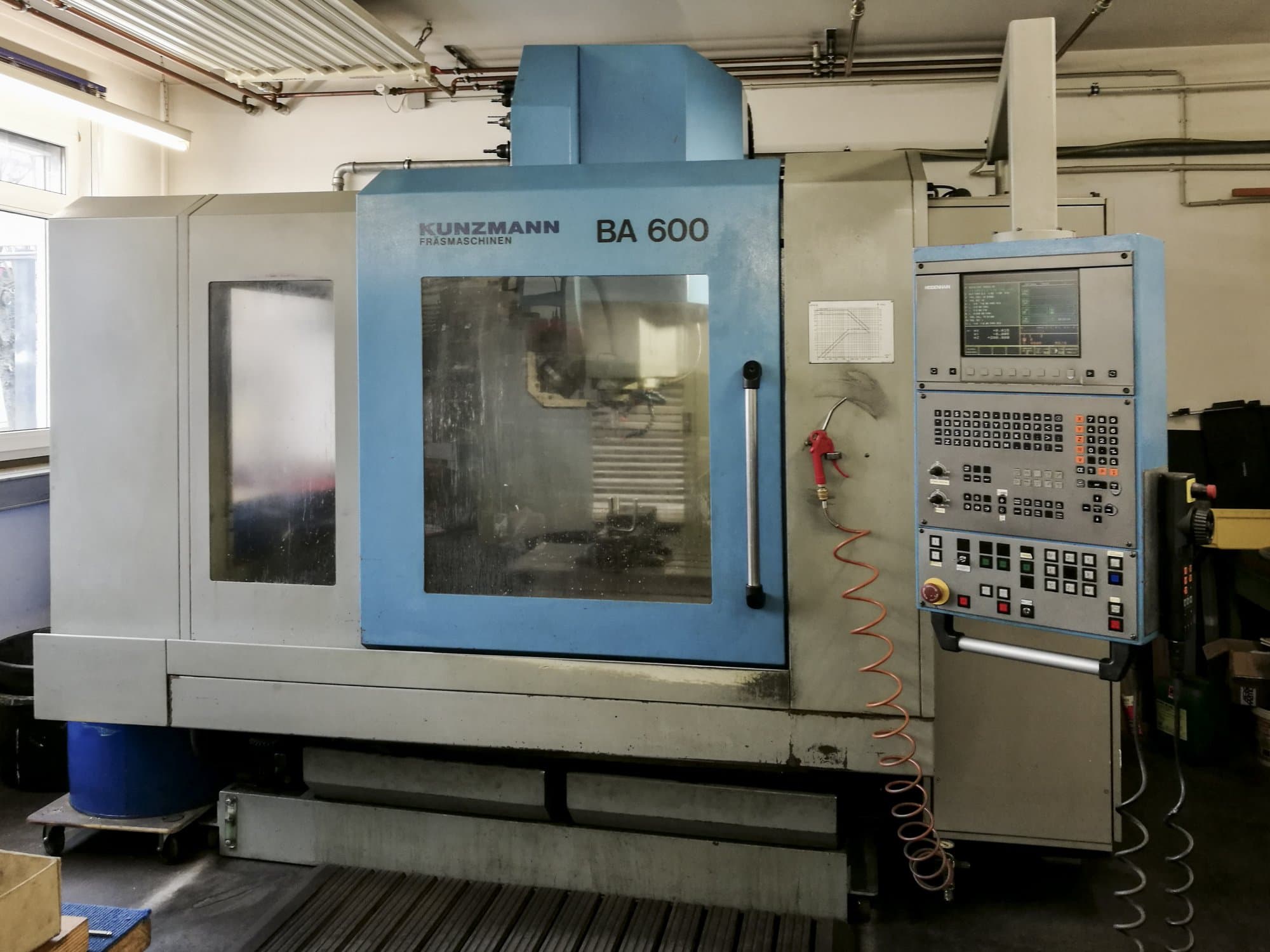

This KUNZMANN BA600 Machining Center was manufactured in 1998 in Germany and has a working record of approximately 19000 production hours. This model is equipped with a HEIDENHAIN TNC 410 Control unit and comes in a good condition as several expendable parts were replaced during the last years. In the past, this machine mainly worked with steel and brass, producing flanges and other small parts for pipework systems.
Overview
- brand: KUNZMANN
- year: 1998
- MODEL: BA600
- production hours: 19000
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - KUNZMANN BA600
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 410
Dimensions
- Machine Depth: 1600 mm
- Machine Height: 2800 mm
- Machine Weight: 3200 kg
- Table Length: 450 mm
- Table Width: 750 mm
Movement
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 600 mm
Technical Specification
- Max. Tool Weight: 4 kg
- Spindle Speed: 9000 RPM
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
