Lagun FBF 1800 Milling Machine

Show in original language

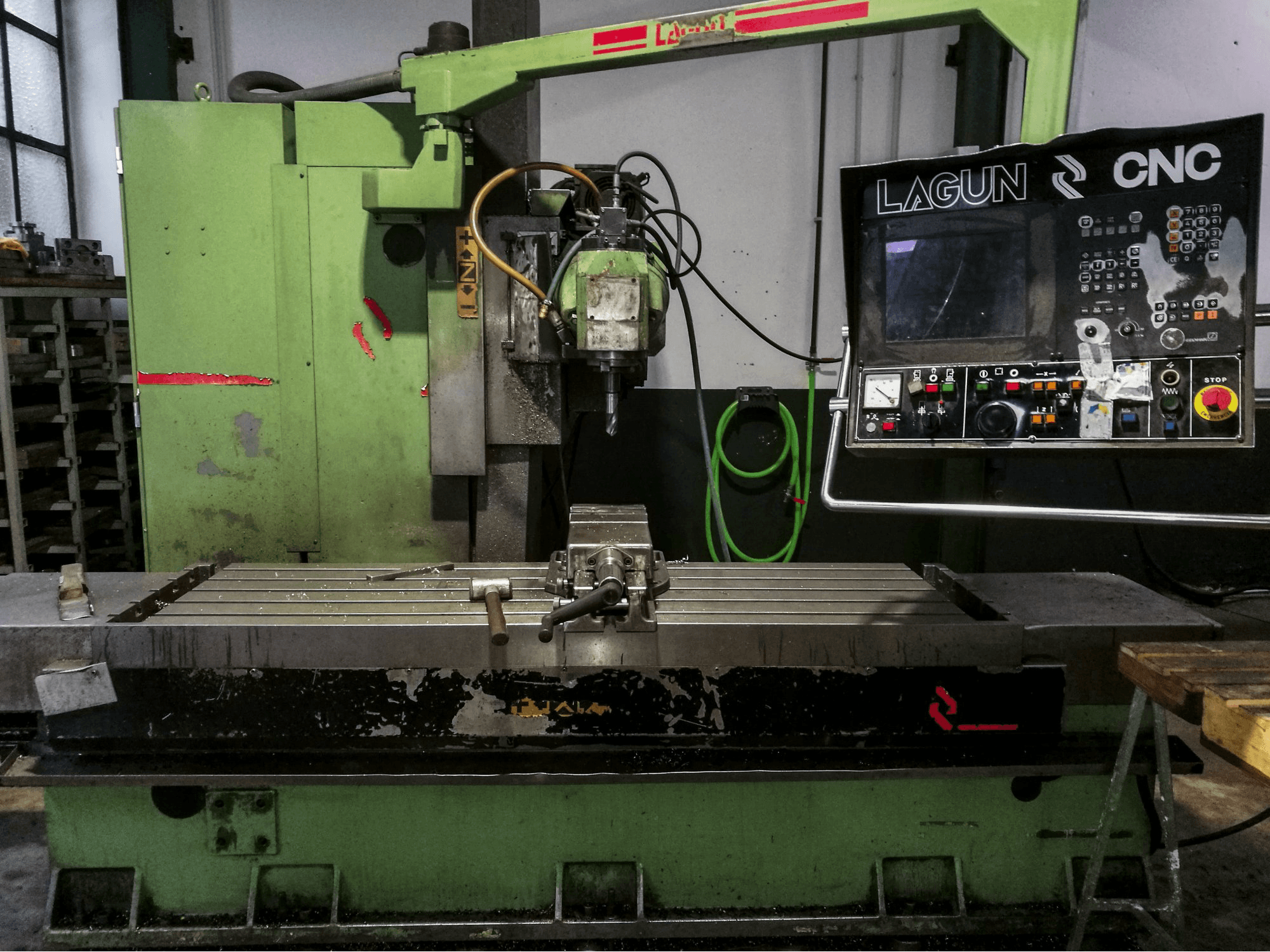

The Lagun FBF 1800 is a Milling Machine from 1992 that has a production record of approximately 20000 working hours. It is equipped with an easy to program HEIDENHAIN TNC 360 Control unit and a variety of additional tool holders. During production this machine benefits from its large, 1800 mm long and 550 mm wide working table and its special turning head, which makes the FBF 1800 work like a 4 axis machine.

Overview

brand: LAGUN
year: 1992
MODEL: FBF 1800
production hours: 20000
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - LAGUN FBF 1800

General Data

Measurements width: 3000 mm
Measurements depth: 2000 mm
Measurements height: 2550 mm
Machine weight: 9000 kg

Control Unit

Model: TNC 360
Brand: HEIDENHAIN

Main drive

Spindle speed range: 50-3000 1/min
Tool taper: ISO 50

Movement

X-AXIS Movement: 1700 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 600 mm

Workpiece

Workpiece weight: 2000 kg

Table

Outer length: 1800 mm
Outer width: 550 mm
Number of tslots: 5
Distance between: 80 mm

Media

Main electronic connection: 380 V

Additional equipment

- Tool holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
