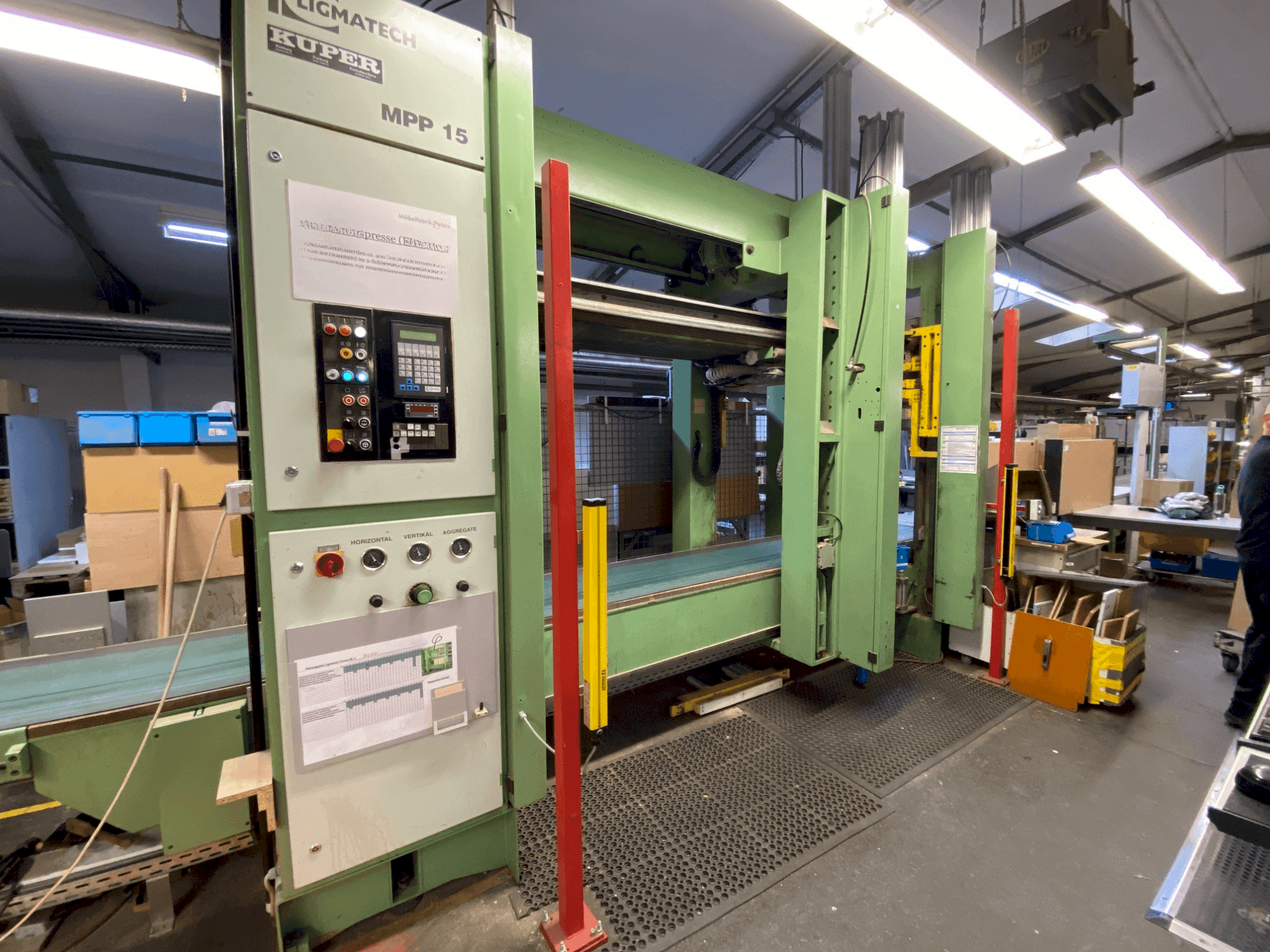

This LIGMATECH MPP 15 laminating press was manufactured in 1998. A robust and reliable choice for your laminating needs, it represents a solid addition to any production line. Contact us for more information.
Overview
- brand: LIGMATECH
- year: 1998
- MODEL: MPP 15
- application type: Pressing / Laminating
- Location: Germany
- machine type: Laminating Press
Technical Information - LIGMATECH MPP 15
General Data
- Machine weight: 4000 kg
Media
- Air pressure: 5 to 8 bar
Additional equipment
- - Photoelectric carcass measurement during infeed
- - Automatic positioning of the horizontal pressure beam
- - Adjustable pressing jaws for variable bottom and side heights
- - Pneumatic pressing system with independently controlled vertical and horizontal pressure
- - Extended infeed conveyor for pre-positioning
Additional Information
- Technical Machine Benefits:
- - Transport speed: 8 to 37 m/min
- - Pressing time: adjustable up to 999 seconds
- - Working height: 500 mm
- - Vertical: max. 17 kn
- - Horizontal: max. 16 kn
- - Operating voltage: 400 v, 50 hz
- - Control voltage: 24 v dc (according to vde)
- - Required room height: 3000 mm
- - Air consumption: 120 nl per working cycle
- - Total connected load: 3 kw
- - Workpiece Carcass Dimensions: Length: 300 mm (min) – 2300 mm (max) Height: 300 mm (min) – 1220 mm (max) Depth: 600 / 800 / 1000 mm (max) (depending on press type)
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
