LVD PARMA 1225 TK

Photo Gallery

LVD - PARMA 1225 TKPL-PUN-LVD-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
LVD PARMA 1225 TK Punching Machine

Show in original language

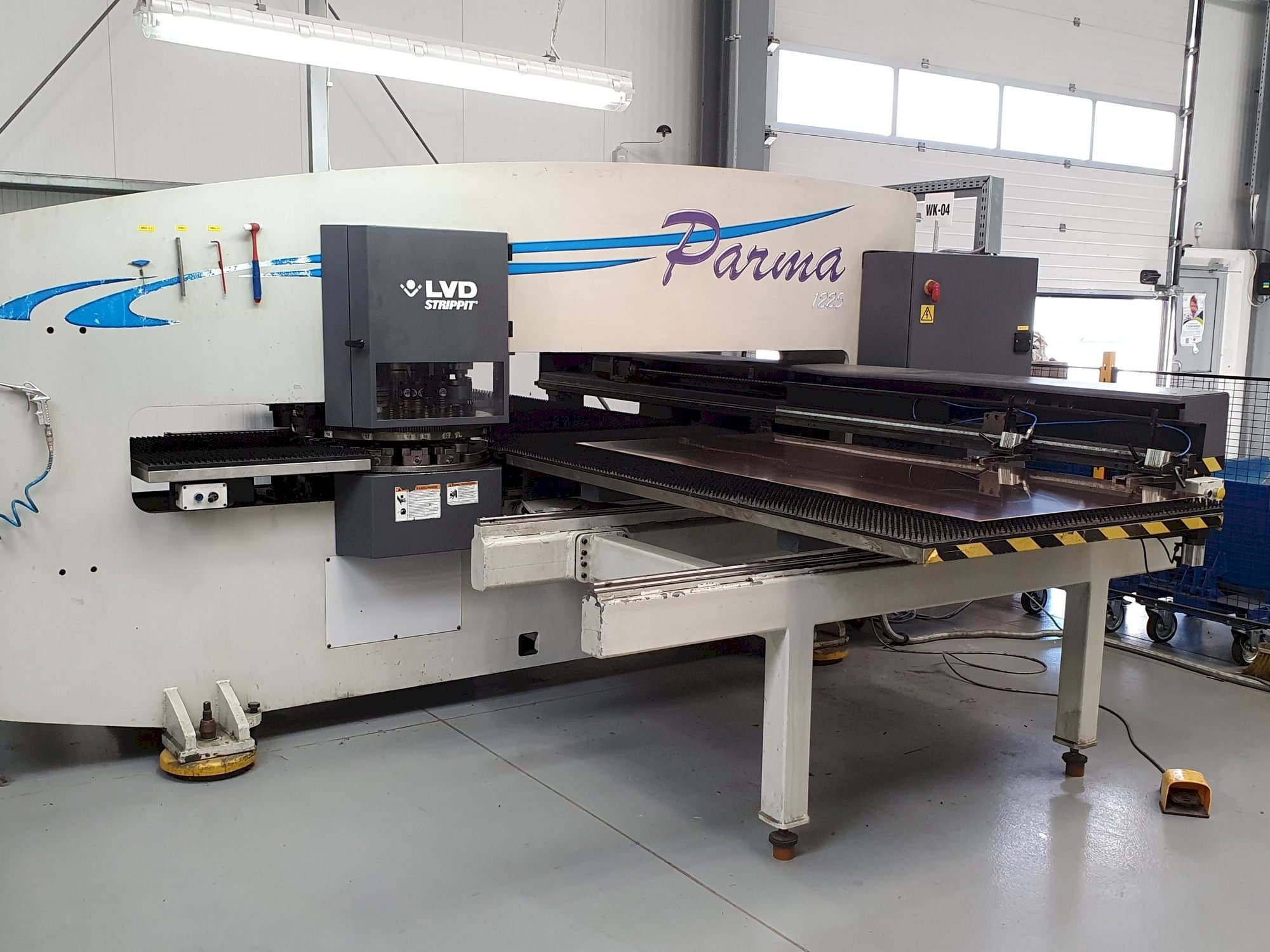

This LVD PARMA 1225 TK Punching Machine was built in the year 2007 in Belgium. The model is operated through a GE Fanuc Series Oi-PC control unit. This machine comes with a punching force of 200 kN. It includes a set of tools for 21 stations (a set for full turret). It presents very good working conditions, serviced always by LVD.

Overview

brand: LVD
year: 2007
MODEL: PARMA 1225 TK
application type: Punching
Location: Poland
machine type: CNC Punch Press
availability: Sold

Technical Information - LVD PARMA 1225 TK

General Data

Measurements width: 5050 mm
Measurements depth: 4500 mm
Measurements height: 2150 mm
Machine weight: 10000 kg

Main drive

Punching force: 200 kN

Tools

Number of stations: 21

Media

Main electronic connection: 400V - 50 Hz
Power consumption: 14.3 kW

Additional Information

Machine history

Material type: Aluminum
Material thickness: 6,35 mm

Machine Benefits

Technical Machine Benefits:
- - The maximum stroke of the x axis: 2550 mm
- - The maximum stroke of the y axis: 1299 mm
- - The dimensions of the processed sheet: 1250 x 2500 mm
- - Spacing of clamps: 1900mm
- - Punching performance: 88. 9 mm diameter for 2 mm mild steel, 30. 0mm diameter for 6mm mild stee
- - Linear positioning accuracy: ± 0. 1 mm
- - Rotational positioning accuracy: ± 0. 05 deg
Qualitative Machine Benefits:
- - Full technical documentation, including the user manual and service docs.
- - Serviced always by lvd poland

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
