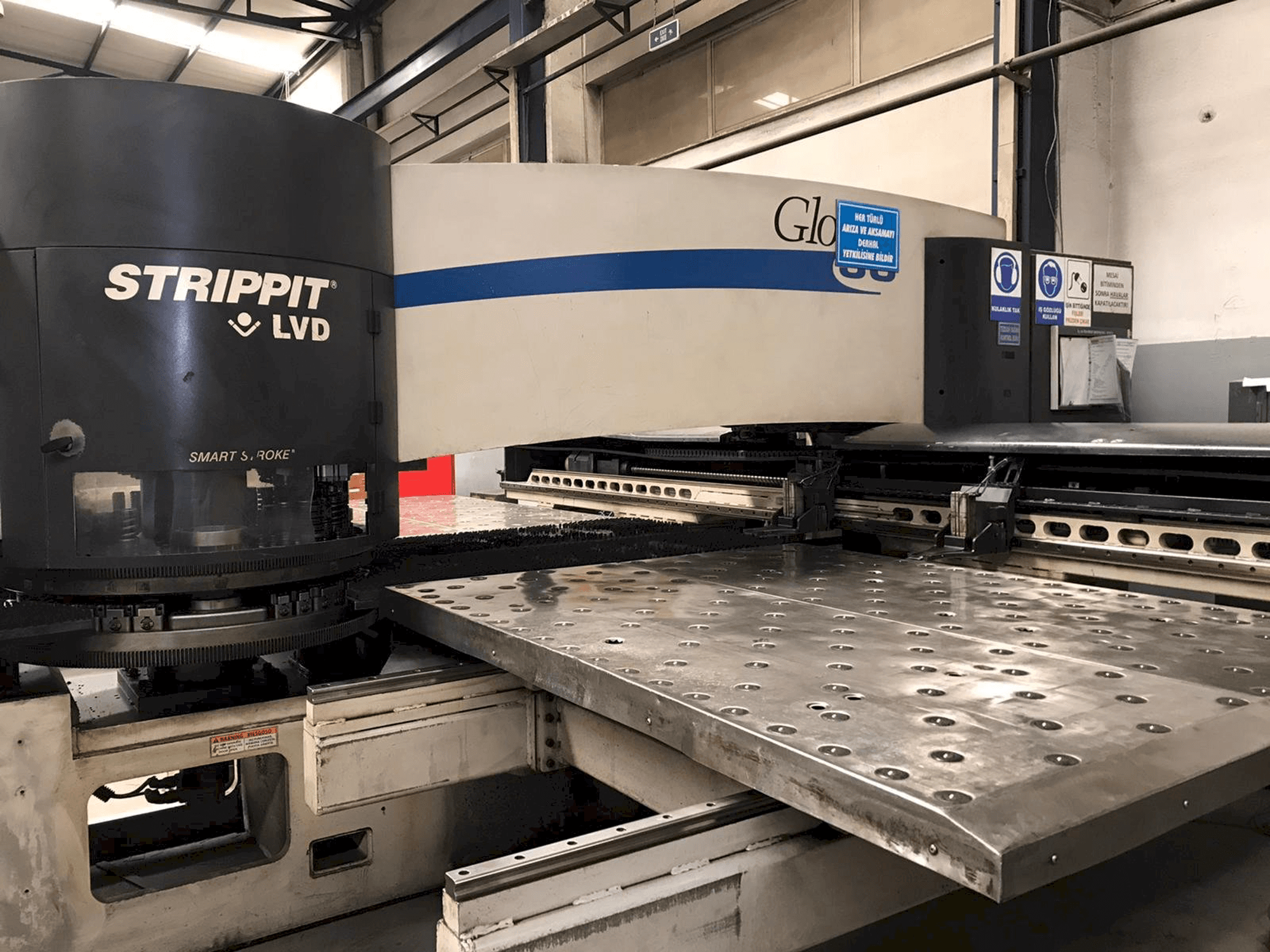

Front view of LVD STRIPPIT Global 30 1525 machine
Front view of LVD STRIPPIT Global 30 1525 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

LVD - STRIPPIT Global 30 1525TR-PUN-LVD-2005-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This LVD STRIPPIT Global 30 1525 Punching Machine was built in 2005 in the United States. It shows 54752 hours, of which 207 are cutting hours. This model stands out due to its table capacity ball-brush combo with a work piece mass 100kg at any speed and for its table capacity all brush with a thickness 3.5 stl and 6.35 al.

Overview

  • brand: LVD
  • year: 2005
  • MODEL: STRIPPIT Global 30 1525
  • production hours: 207
  • application type: Punching
  • Location: Turkey
  • machine type: CNC Punch Press

Technical Information - LVD STRIPPIT Global 30 1525

General Data

  • Measurements width: 5164 mm
  • Measurements depth: 6133 mm
  • Measurements height: 2330 mm
  • Machine weight: 15600 kg

Movement

  • X-AXIS Movement: 2576.2 mm
  • Y-AXIS Movement: 1611.1 mm

Workpiece

  • Workpiece weight: 85 kg

Table

  • Table load: 100 kg at any speed 146 kg at 50% speed

Tools

  • Number of stations: 30 stations (long tool) 30 stations (short tool)

Max Material thickness

  • Steel: 3.5 mm
  • Aluminum: 6.35 mm

Media

  • Main electronic connection: 400 v 50 hz

Additional Information

Machine Benefits

Technical Machine Benefits

  • Tonnage 30 metric tons
  • Shut height short tool 137. 31 mm
  • Shut height long tool 205 mm
  • Feed clearance 21 mm
  • Normal (up to) 1524 x 2500 mm
  • W/prog move 1524 x 4064 mm
  • Part chute (y,x) 450 x 500 mm
  • 88. 9 mm dia in 2 mm mild steel
  • 44. 5 mm dia in 6 mm mild steel
  • Accuracy ±0. 1 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
