Makino A55e

Photo Gallery

Makino - A55eIE-MIL-MAK-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

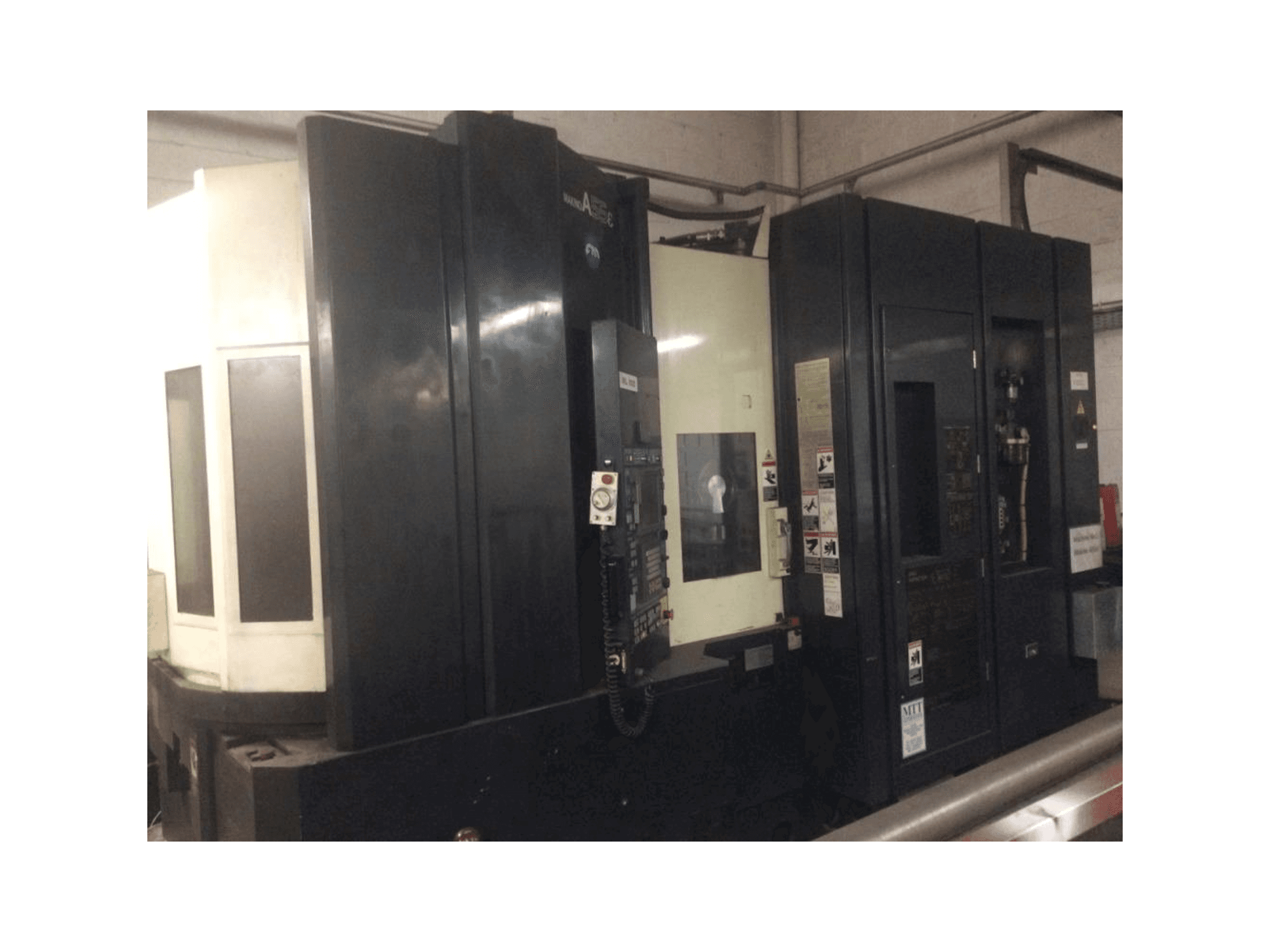

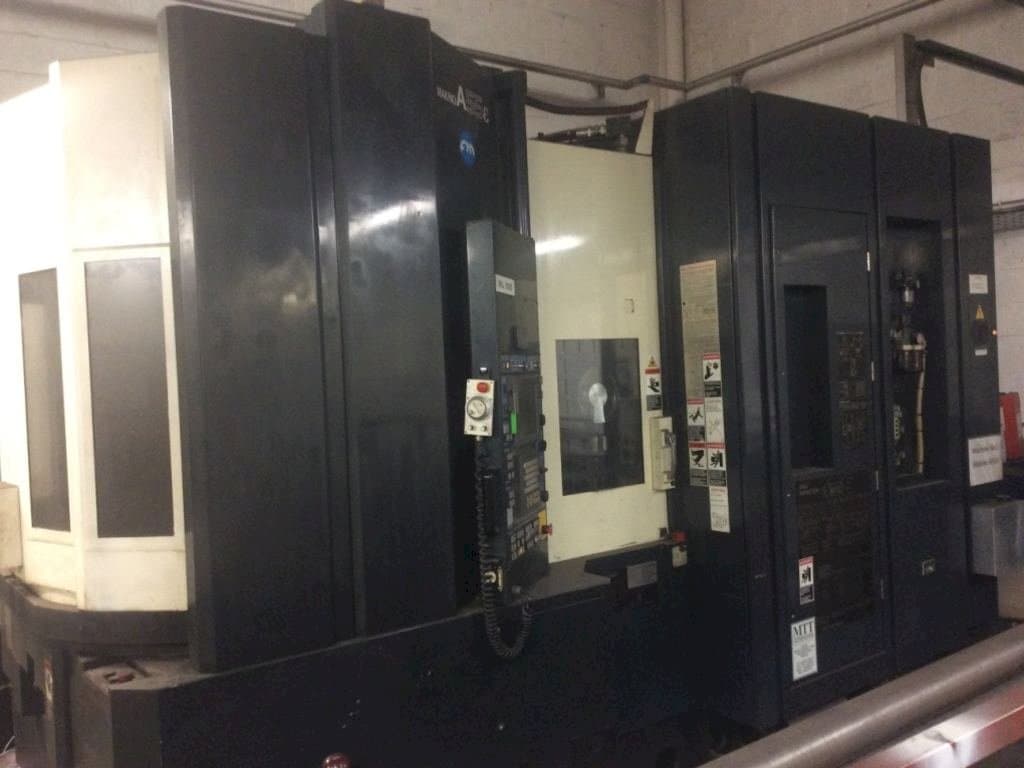

Makino A55e Horizontal Machining Center

Show in original language

This Makino A55e Horizontal Machining Center was built in Japan in the year 2000. It is operated through a Fanuc Professional 3 (16iM) control unit. This 4 axis machine can operate with a spindle speed range up to 14000 rpm. It includes an auto tool length measurement, a suite of toolholders, a probe, and an 2 x tomb stones. It presents good conditions.

Overview

brand: Makino
year: 2000
MODEL: A55e
application type: Milling
Location: Ireland
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Makino A55e

General Data

Measurements width: 2135 mm
Measurements depth: 4675 mm
Measurements height: 3150 mm
Machine weight: 9000 kg

Control Unit

Model: Professional 3 (16iM)
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 14000 1/MIN

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 600 mm

Workpiece

Workpiece drm: 630 mm
Workpiece x: 630 mm
Workpiece y: 630 mm
Workpiece z: 1000 mm
Workpiece weight: 500 kg

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 30
Type of tool holder: HSK A63

Media

Main electronic connection: 380 V

Additional Information

Additional equipment

Auto tool length measurement
Suite of toolholders
Probe
2 x tomb stones

Machine Benefits

Qualitative Machine Benefits

Well maintained machine

Technical Machine Benefits

Twin pallet horizontal machining centre
400mm x 400mm pallet size
Pallet indexing: 360 degrees
4 axis machine

Machine History

End product

Medical device parts

Material type

Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
