➤ Used Makino A99-A188 For Sale | gindumac.com

Show in original language

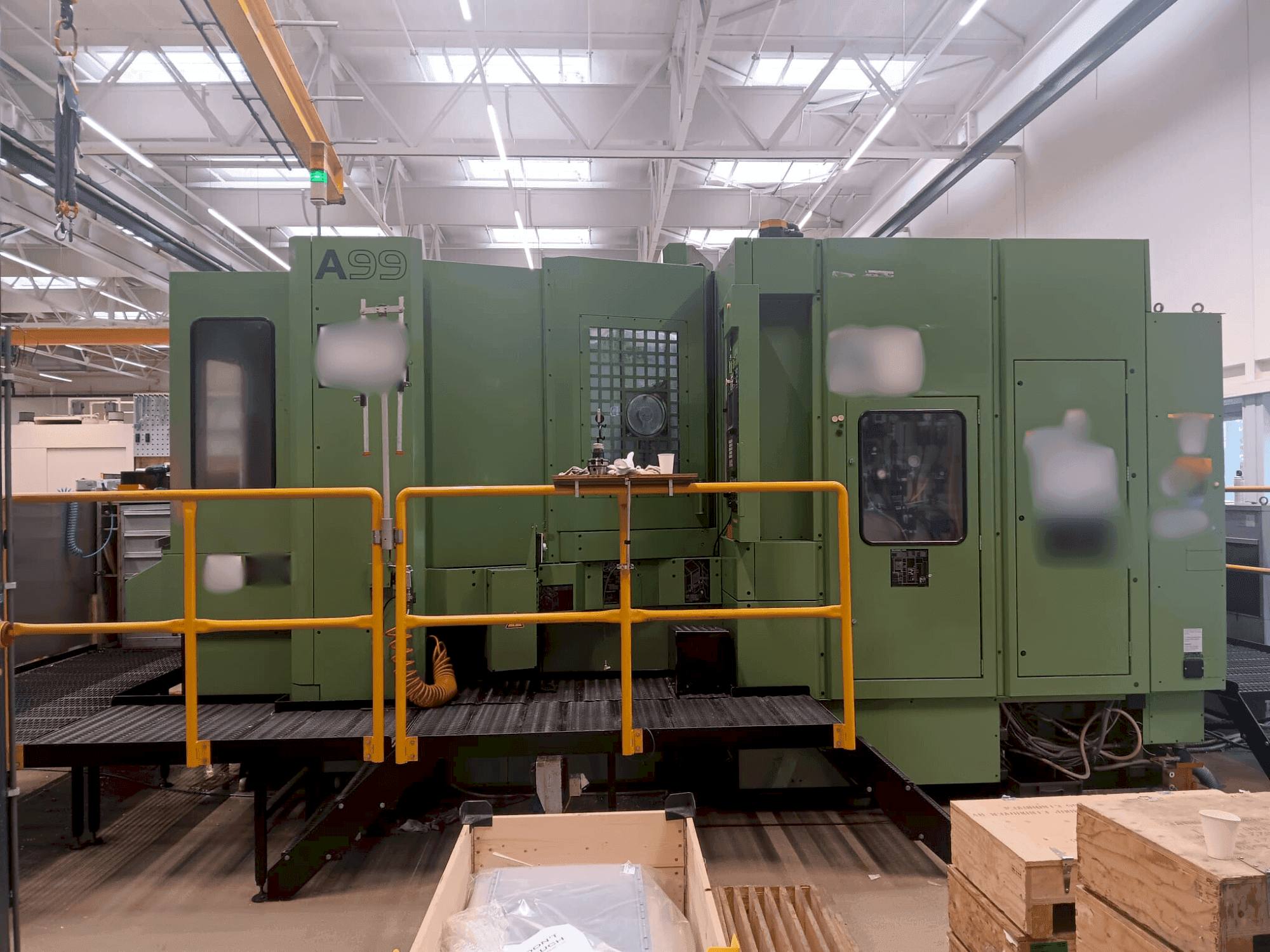

This 4-axis Makino A99-A188 was manufactured in 2001. A robust horizontal machining centre featuring a Fanuc 16iM controller, 800x800mm pallet size, and a comprehensive tool magazine with 188 positions. It supports a maximum workpiece size of dia 1100 x 1200mm and offers rapid traverse rates up to 50,000 mm/min. If you are looking to get high-quality milling capabilities consider the Makino A99-A188 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: Makino
year: 2001
MODEL: A99-A188
application type: Milling
Location: Netherlands
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Makino A99-A188

Control Unit

Brand: FANUC
Model: 16iM

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 950 mm
B-AXIS Movement: 360° MM

Table

Min distance between vertical spindle and table: 100 mm
Max distance between vertical spindle and table: 1100 mm

Tools

Slots in storage: 188

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Workpiece diameter to avoid collision: dia 1100 x 1200mm
- - Size of pallet: 800x800mm
- - Distance between spindle gauge line plane to center of pallet: 70-1020mm
- - Cutting feed: 1-50. 000mm/min
- - Rapid traverse: 50. 000 mm/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
