Makino D500

Photo Gallery

Makino - D500AT-MIL-MAK-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

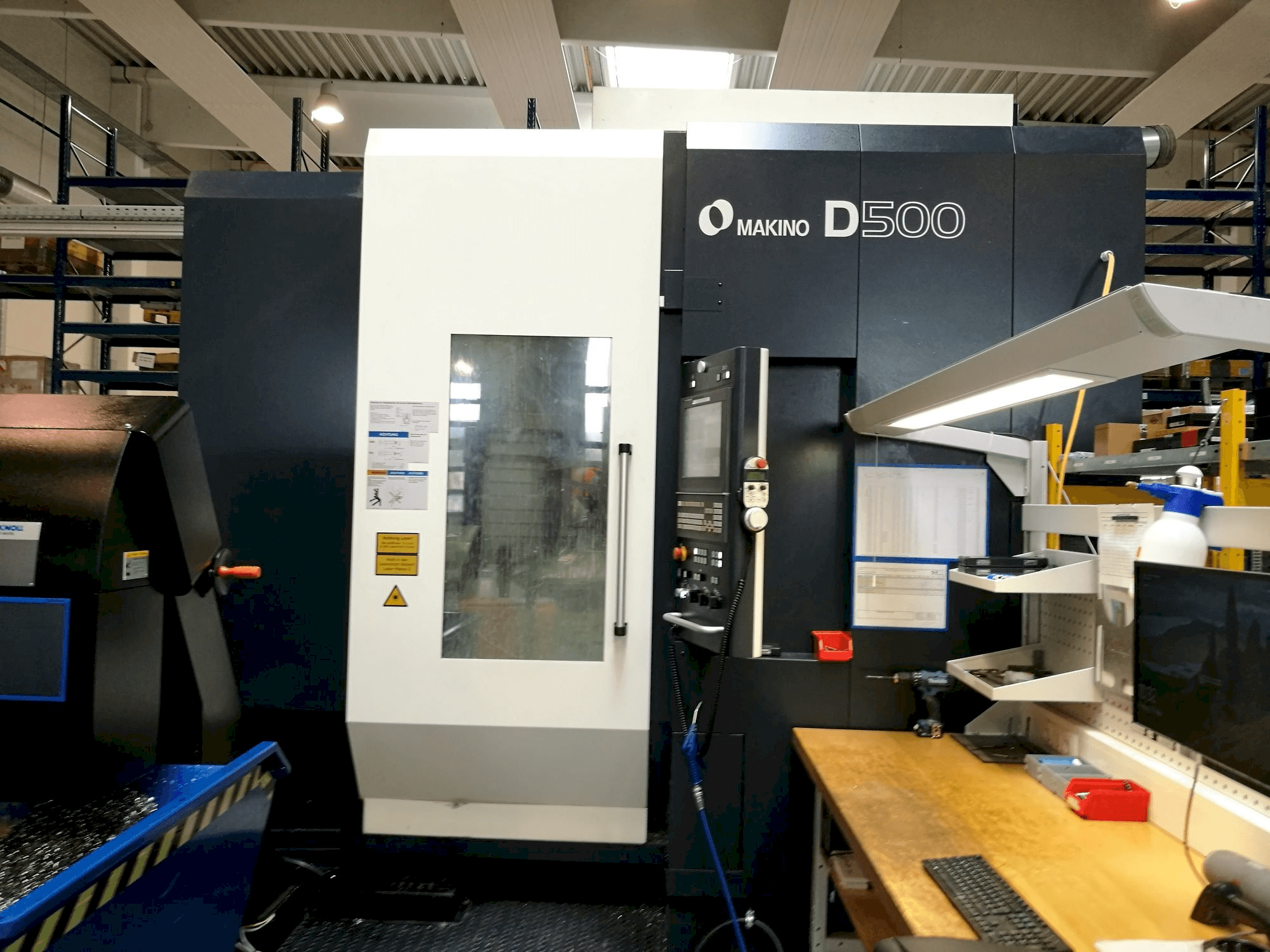

Makino D500 Horizontal Machining Center

Show in original language

This Makino D500 Horizontal Machining Center was built in 2016 in Japan. It has been working for 20213 hours. It is equipped with a Fanuc Pro6 control unit. This machine can operate with a spindle speed range up to 14000 rpm. It includes an internal cooling, an external chip conveyor, and a 70 bar high pressure device.

Overview

brand: Makino
year: 2016
MODEL: D500
production hours: 20213
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Makino D500

General Data

Measurements width: 3300 mm
Measurements depth: 2900 mm
Measurements height: 3400 mm
Machine weight: 17500 kg

Control Unit

Model: Pro6
CNC main language: German
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 14000 rpm 1/MIN

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 500 mm
A-AXIS Movement: 150 degree (plus 30/minus120)
C-AXIS Movement: 360 degree

Workpiece

Workpiece drm: 500 mm
Workpiece x: 650 mm
Workpiece y: 650 mm
Workpiece z: 500 mm
Workpiece weight: 350 kg

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Slots in storage: 80
Type of tool holder: HSK 63A

Media

Main electronic connection: 400 V
Power consumption: 58,5 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

External chip conveyor - Knoll
70bar high pressure device

Machine Benefits

Qualitative Machine Benefits

Perfect conditions
Little working time
Fully serviced

Technical Machine Benefits

5 axes simultan
High dynamic machine
Hpc
Through spindle coolant
Shower coolant sytem

Machine History

Industries

Aerospace industries

End product

Aerospace components

Material type

Exotic materials (nickle and titan based)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
