Makino - EDNC43AT-EDM-MAK-1996-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Makino EDNC43 Erosion Machine
Show in original language

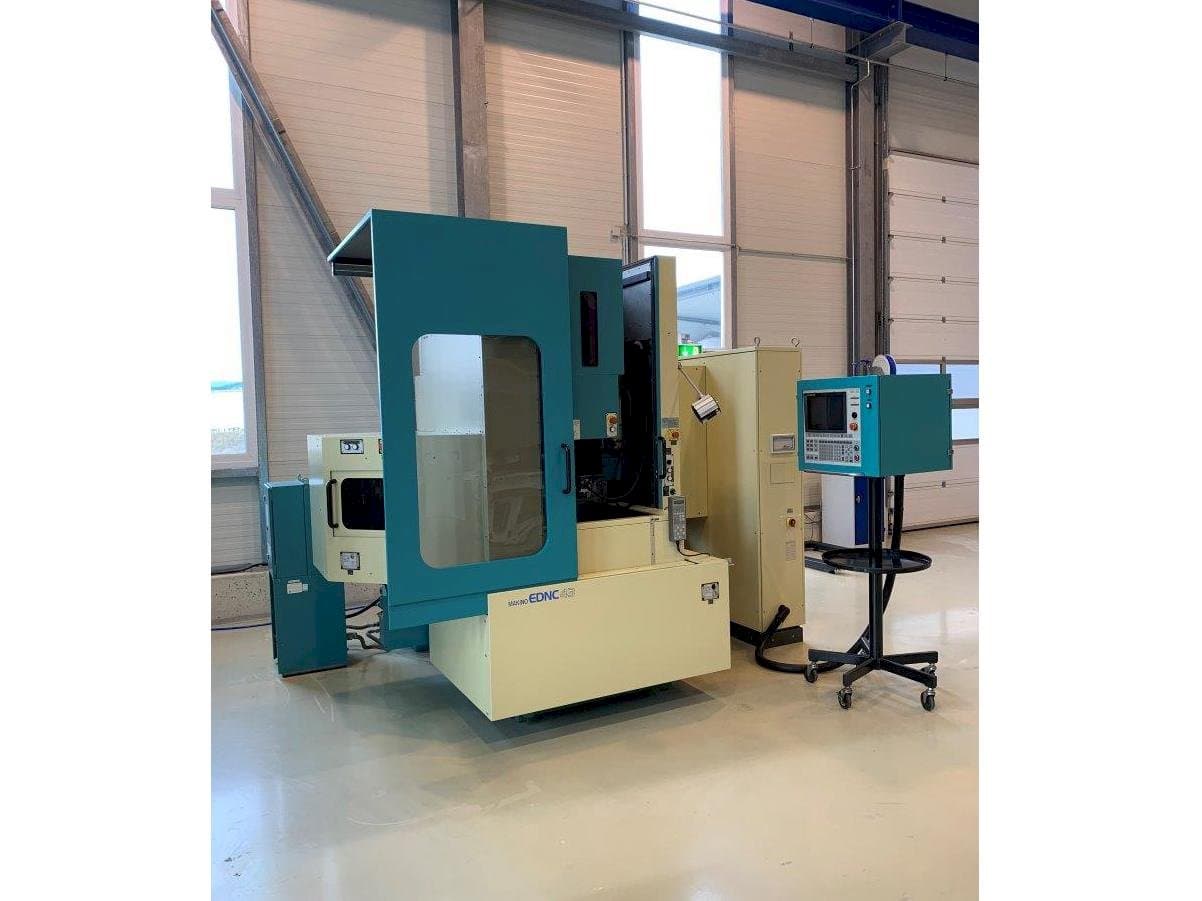

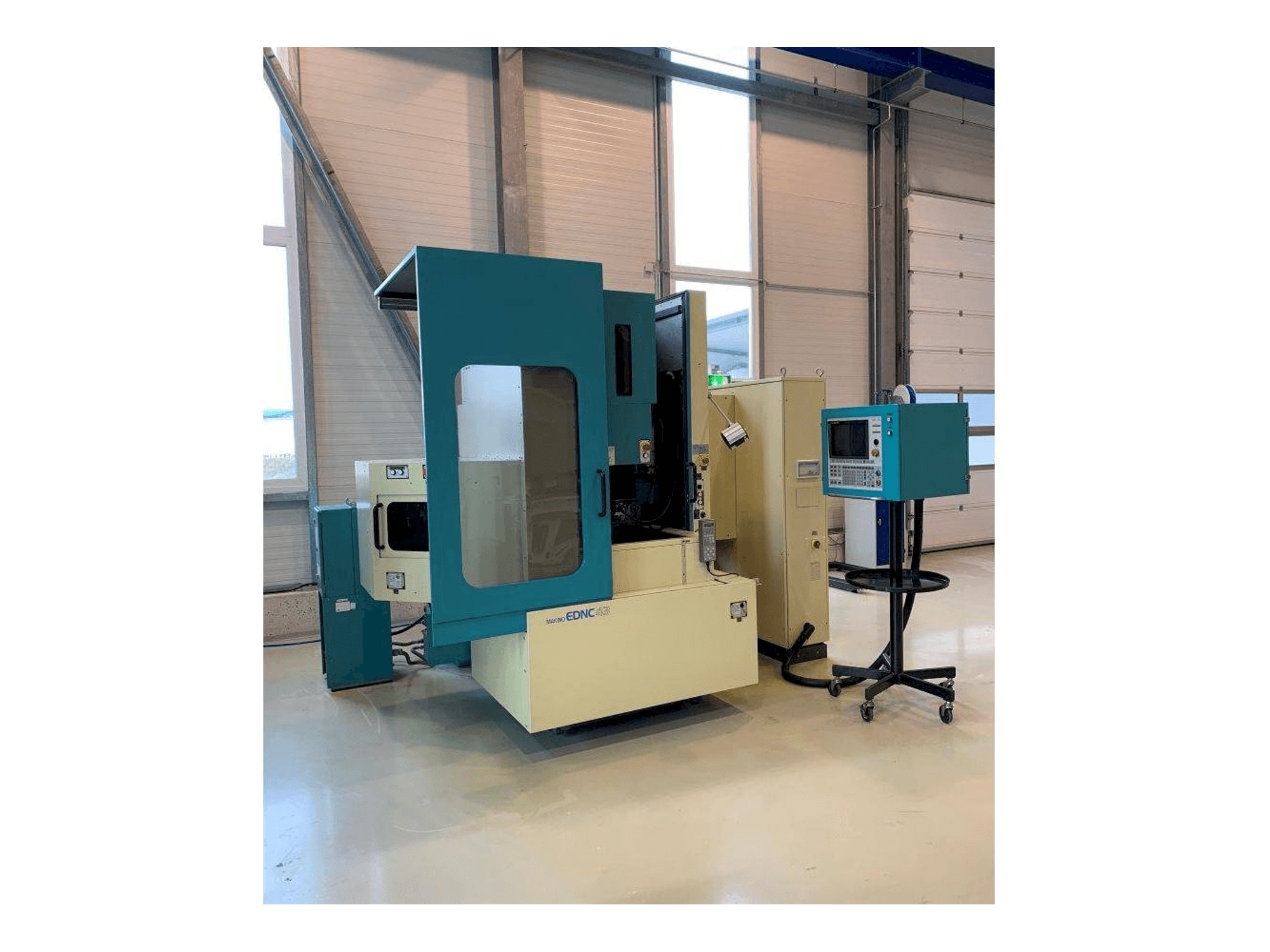

This Makino EDNC43 Erosion Machine was built in the year 1996. It is equipped with a Makino MGF 20 control unit. The machine has a rotation spindle of 1000 rpm.
Overview
- brand: Makino
- year: 1996
- MODEL: EDNC43
- application type: EDM
- Location: Austria
- machine type: Die-Sinking EDM Machine
- control unit brand: MAKINO
Technical Information - Makino EDNC43
Control Unit
- Control Brand: MAKINO
- Control Model: MGF 20
Dimensions
- Table Length: 700 mm
- Table Width: 500 mm
Movement
- X-axis Travel: 450 mm
- Y-axis Travel: 350 mm
- Z-axis Travel: 350 mm
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Cooling unit thermostatically controlled
Technical Machine Benefits
- Generator mgf 20 with 60 amps
- Color screen 14 inch
- Manual control panel with short functions
- Tool changer atc 8
- Electrode clamping system erowa
- C-axis ma - head
- Rotation spindle 1000 revolutions
- Working tank 850 x 650 x 400
- Fire extinguishing system
- Dielectric unit incl. Filter unit
Extra Information
The electrode holders and the clamping magnet are not part of the machine
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
